Check CAN Bus Lines For Short Circuit

CHECK CAN BUS LINES FOR SHORT CIRCUIT

CIRCUIT DESCRIPTION

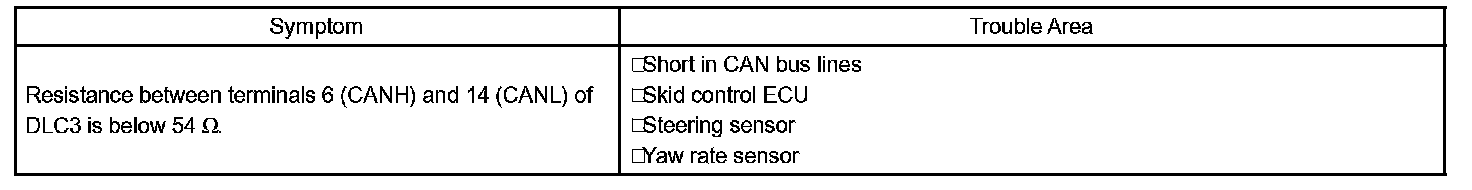

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

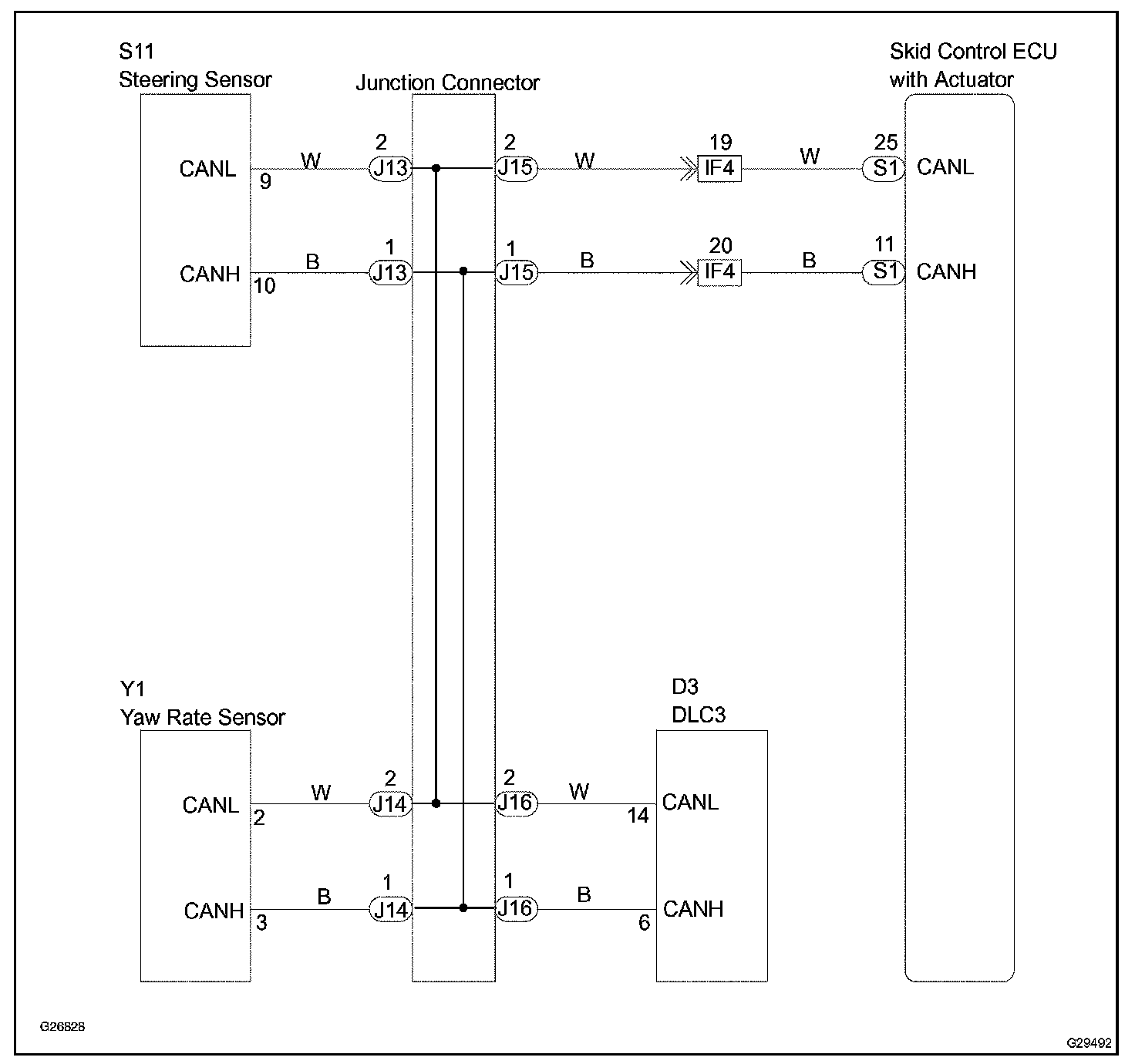

Wiring Diagram:

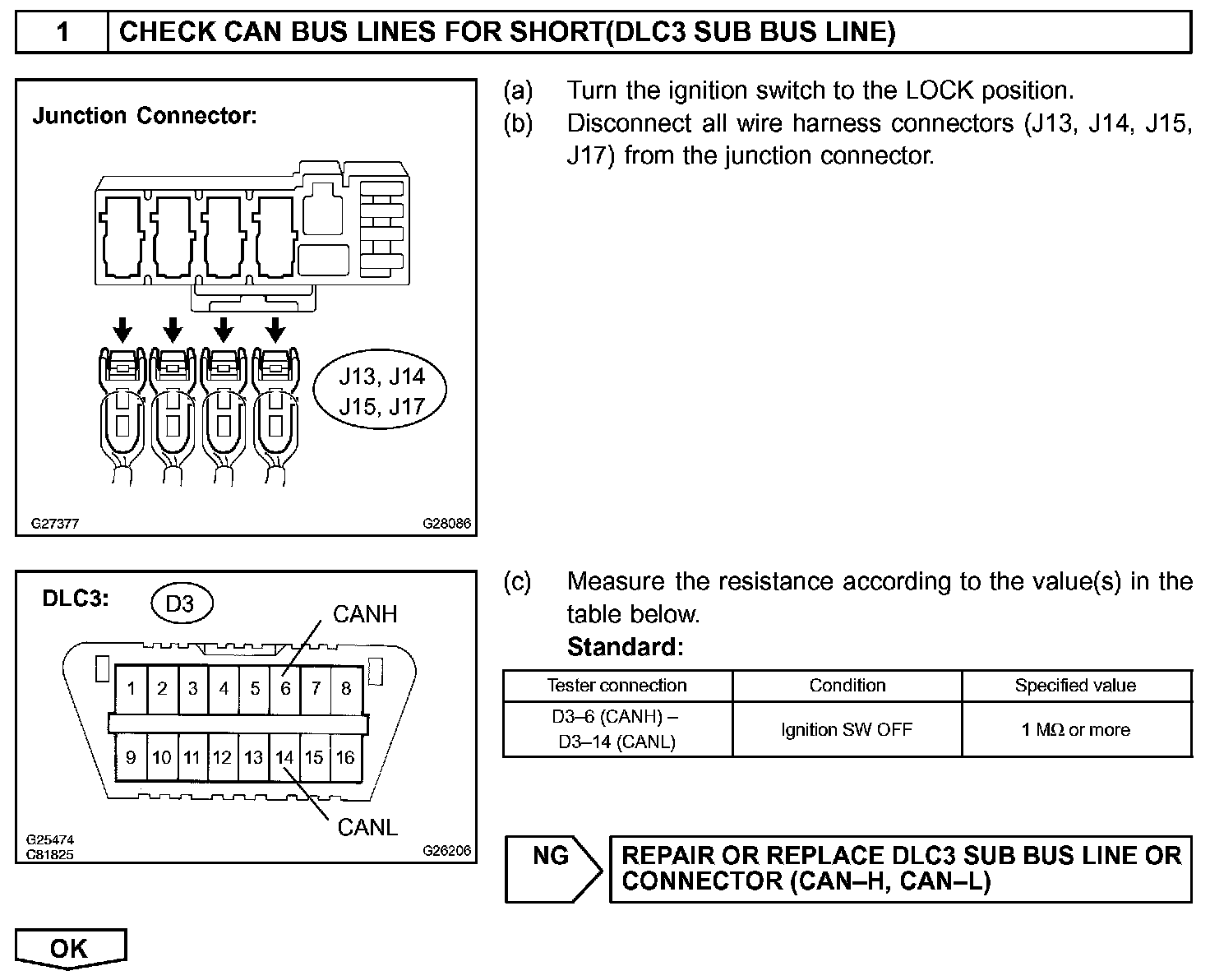

Step 1:

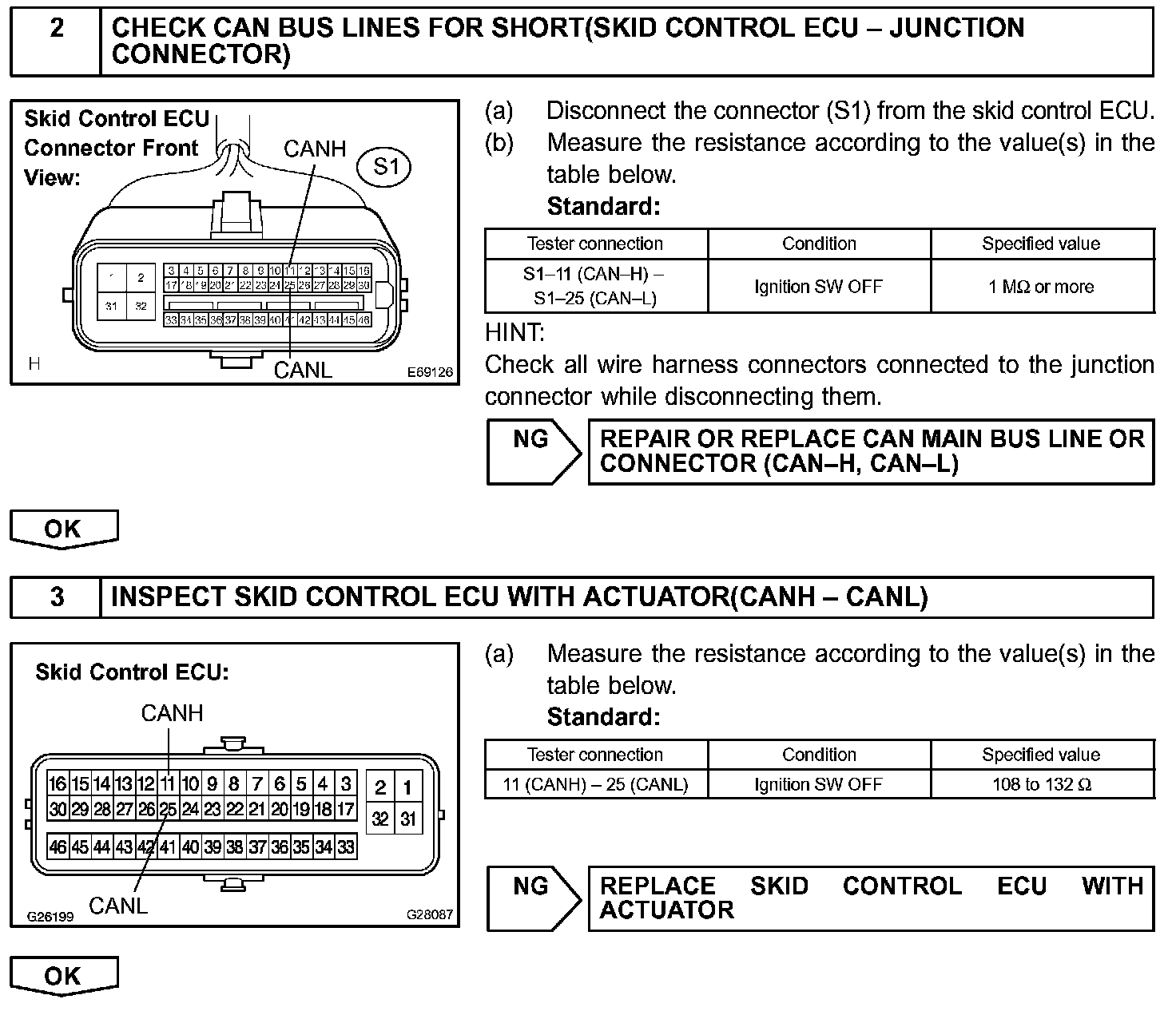

Step 2 - 3:

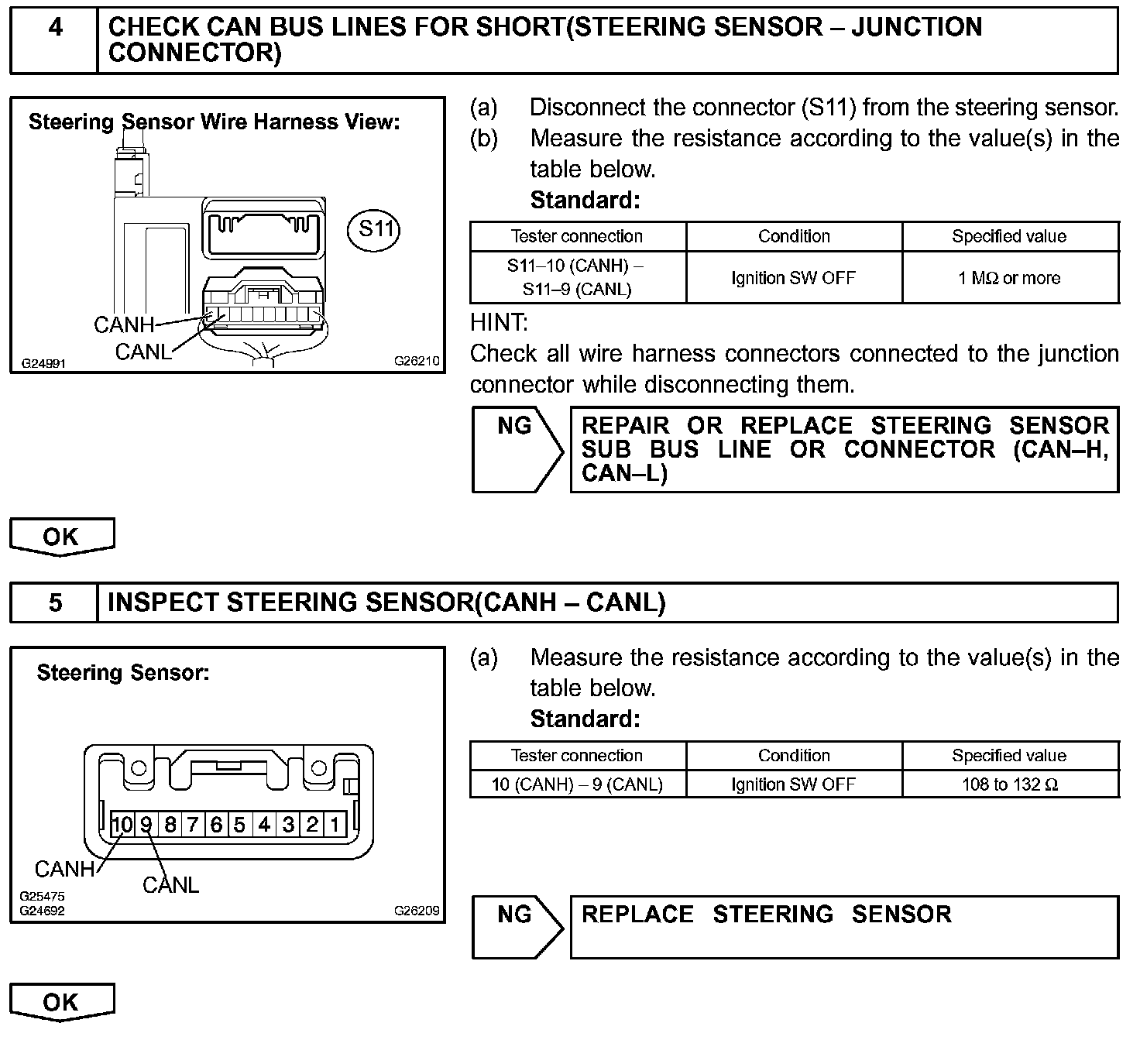

Step 4 - 5:

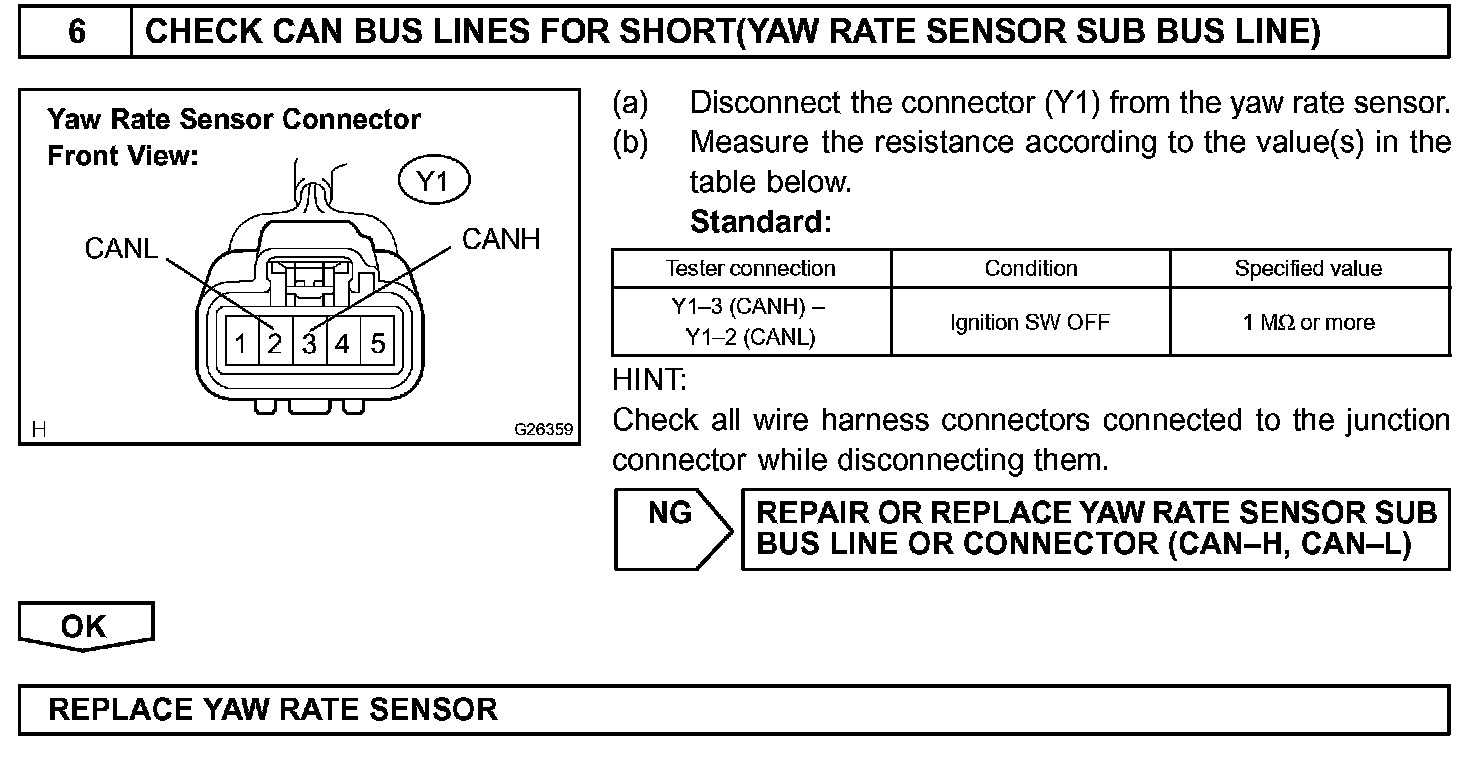

Step 6:

INSPECTION PROCEDURE
