Dispose of Curtain Shield Air Bag Assy LH When Installed In Veh
DISPOSALHINT:
- Disposal procedure of the RH side is the same as that for the LH side.
- When scrapping a vehicle equipped with SRS or disposing of the curtain shield airbag assembly LH, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
CAUTION:
- Never dispose of the curtain shield airbag assembly LH that has an undeployed airbag.
- The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
- When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
- When deploying the airbag, perform the operation at least 10 m (33 ft) away from the curtain shield airbag assembly LH.
- The curtain shield airbag assembly LH is extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
- Use gloves and safety glasses when handling the curtain shield airbag assembly LH with the deployed airbag.
- Do not apply water, etc. to the curtain shield airbag assembly LH with the deployed airbag.
- Always wash your hands with water after completing the operation.
DISPOSE OF CURTAIN SHIELD AIR BAG ASSEMBLY LH (WHEN INSTALLED IN VEHICLE)
HINT: Prepare a battery as the power source to deploy the airbag.

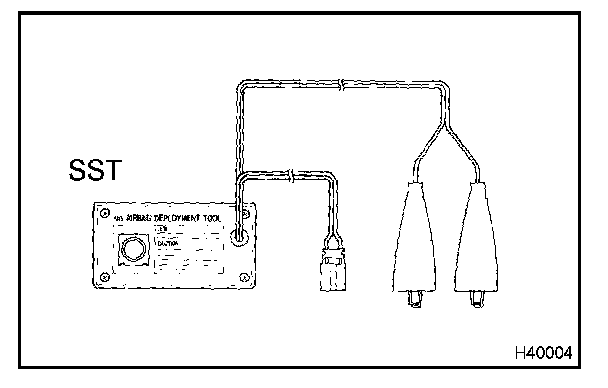

a. Check the function of the SST.
CAUTION: When deploying the airbag, always use the specified SST: SRS Airbag Deployment Tool.
SST 09082-00700
1. Connect the SST to the battery.
Connect the red clip of the SST to the battery positive (+)terminal and the black clip to the battery negative (-) terminal.
HINT: Do not connect the yellow connector which will be connected with the supplemental restraint system.
2. Check functioning of the SST.
Press the SST activation switch, and check that the LED of the SST activation switch lights up.
CAUTION: If the LED lights up when the activation switch is not being pressed, SST malfunction is probable, so definitely do not use the SST.
3. Disconnect the SST from the battery.
b. Precaution.
c. Disconnect the battery negative terminal.
d. Remove the rear door scuff plate LH.
e. Remove the rear door opening trim weatherstrip LH.
f. Remove the rear seat cushion assembly.
g. Remove the rear side seat back LH.
h. Remove the roof side inner garnish LH.
i. Install the SST.
1. Disconnect the connector from the curtain shield airbag assembly LH.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

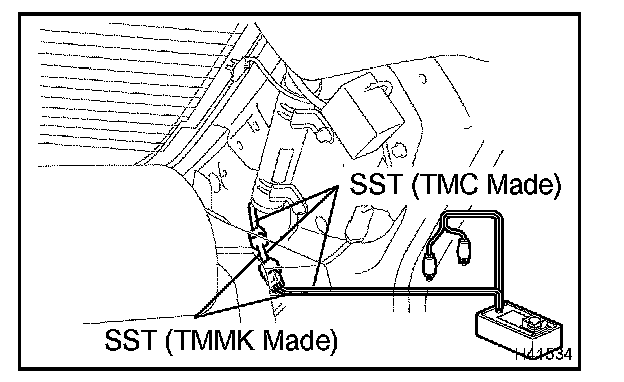

2. TMC Made:
After connecting the SST below to each other, connect them to the curtain shield airbag assembly LH.
SST 09082-00700, (09082-00802 09082-10801, 09082-20801)
NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.
3. TMMK Made:
Connect the connector of the SST to the curtain shield airbag assembly LH (TMMK Made).
SST 09082-00700, 09082-00760
NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

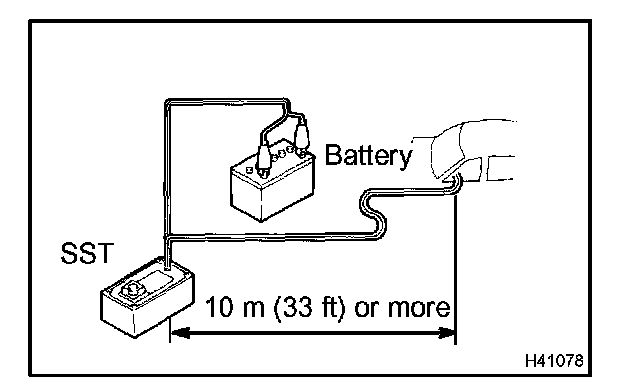

4. Move the SST at least 10 m (33 ft) away from the vehicle rear side window.
5. Maintaining enough clearance for the SST wire harness in the rear side window, close all doors and windows of the vehicle.
NOTE: Take care not to damage the SST wire harness.
6. Connect the red clip of the SST to the battery positive (+) terminal and the black clip of the SST to the negative (-) terminal.
j. Deploy the airbag.
1. Check that no one is inside the vehicle or within a 10 m (33 ft) radius of the vehicle.
2. Press the activation switch of the SST and deploy the airbag.
HINT: The airbag is deployed as the LED of the SST activation switch comes on.
CAUTION:
- The curtain shield airbag assembly LH is extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
- Use gloves and safety glasses when handling the curtain shield airbag assembly LH with the deployed airbag.
- Do not apply water, etc. to the curtain shield airbag assembly LH with the deployed airbag.
- Always wash your hands with water after completing the operation.
