Removal and Installation

REPLACEMENT

1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE FRONT SEAT TRACK COVER RH REAR INNER (POWER SEAT)
4. REMOVE FRONT SEAT TRACK COVER LH REAR INNER (POWER SEAT)
5. REMOVE SEAT TRACK COVER UPPER REAR (MANUAL SEAT)
6. REMOVE SEAT TRACK UPPER RAIL COVER RH (MANUAL SEAT)
7. REMOVE FRONT SEAT ASSEMBLY LH




8. REMOVE SEAT POSITION AIR BAG SENSOR
a. Disconnect the connector of the seat position sensor.

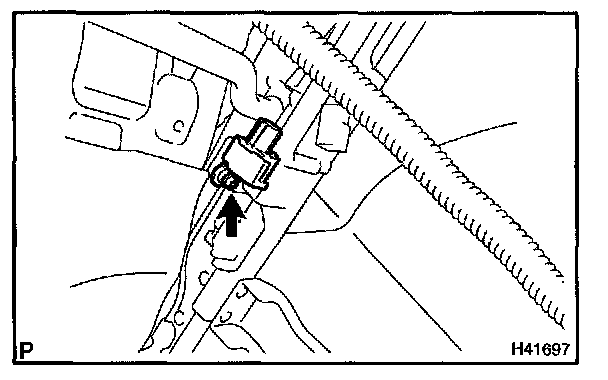

b. Using a torx socket wrench (T30), remove the torx screw and seat position sensor.

9. INSTALL SEAT POSITION AIR BAG SENSOR
a. Using a torx socket wrench (T30), install the seat position sensor with the torx screw.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Connect the connector of the seat position sensor.

NOTE:
- Installation of the connector is done with the sensor assembly installed. Make sure the sensor assembly is installed with the specified torque.
- If the sensor assembly has been dropped, or there are cracks, dents or other defects In the case, bracket or connector, replace the sensor assembly with a new one.
- When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
- After installation, shake the sensor assembly to check that there is no looseness.

10. INSTALL FRONT SEAT ASSEMBLY LH

Torque: 36.8 N.m (375 kgf.cm, 27 ft.lbf)

11. SRS WARNING LIGHT
