ABS W/EBD & BA & TRAC & VSC System
ABS W/EBD & BA & TRAC & VSC System
DTC C1249 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT

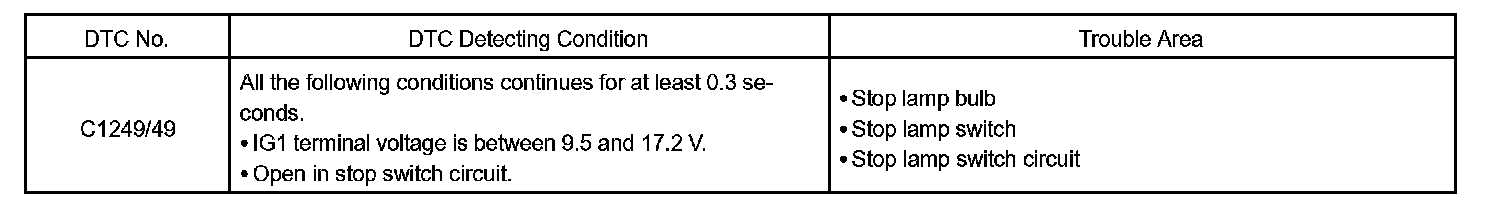

DTC Detecting Condition:
CIRCUIT DESCRIPTION

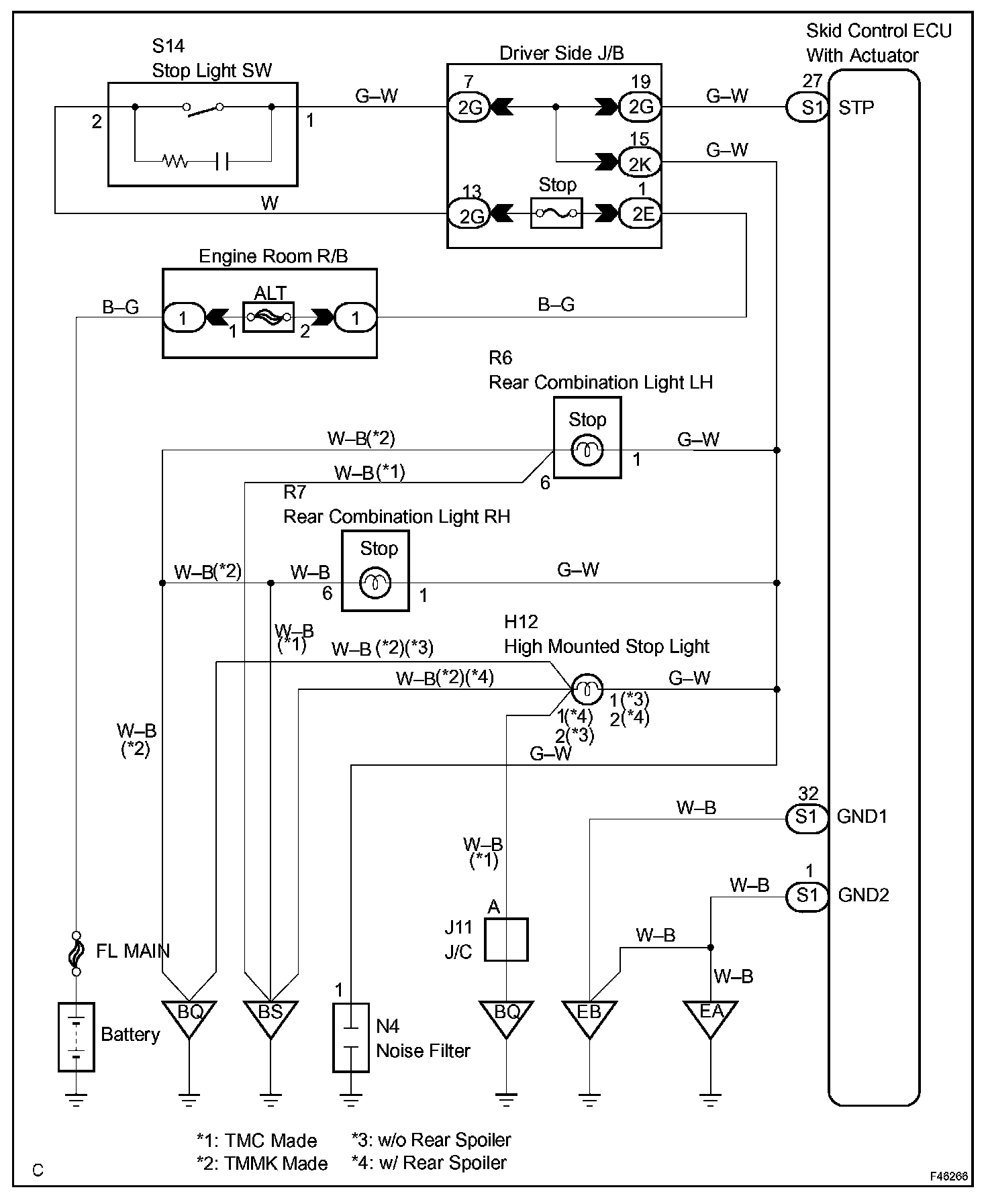

Wiring Diagram:

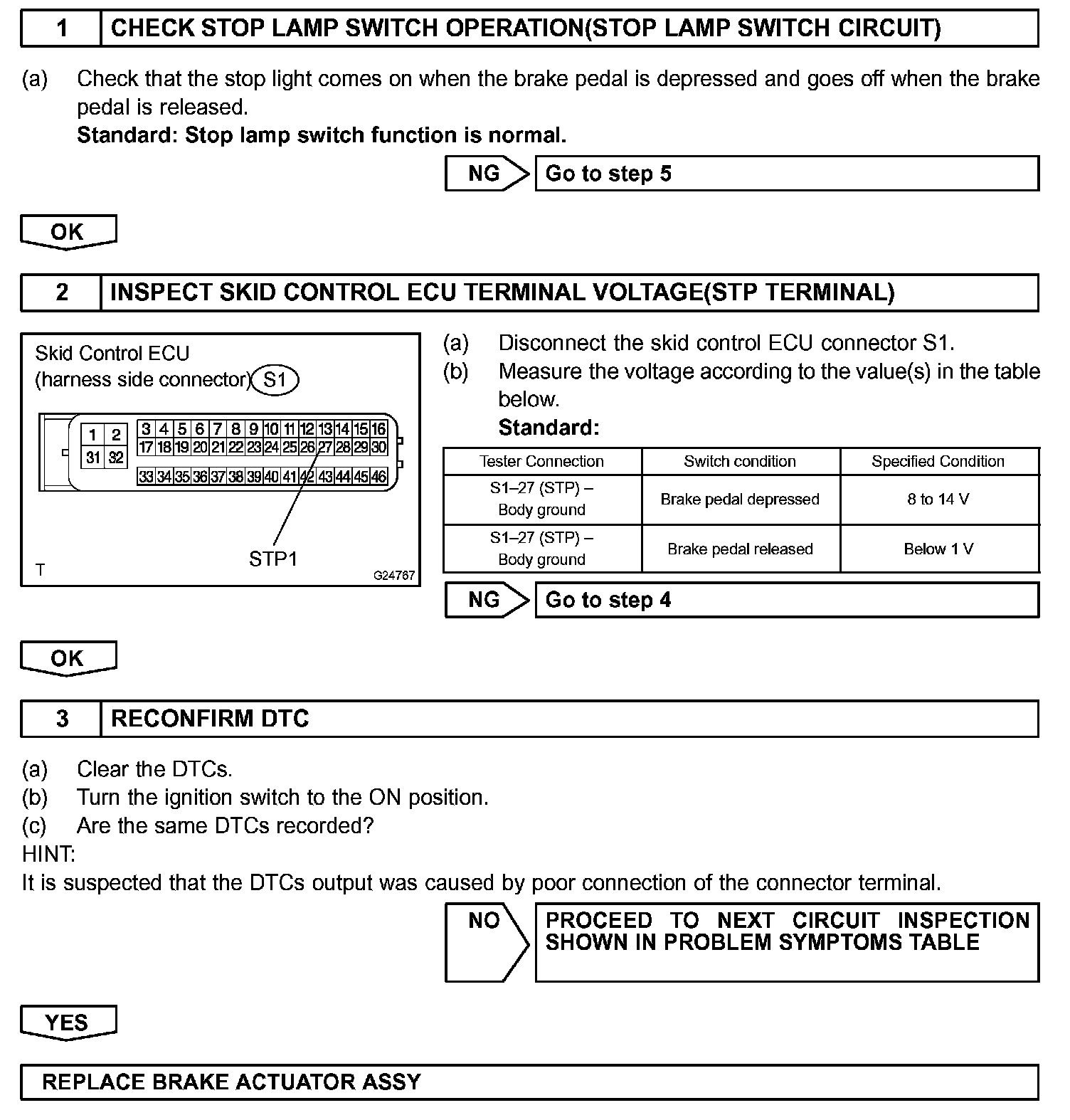

Step 1 - 3:

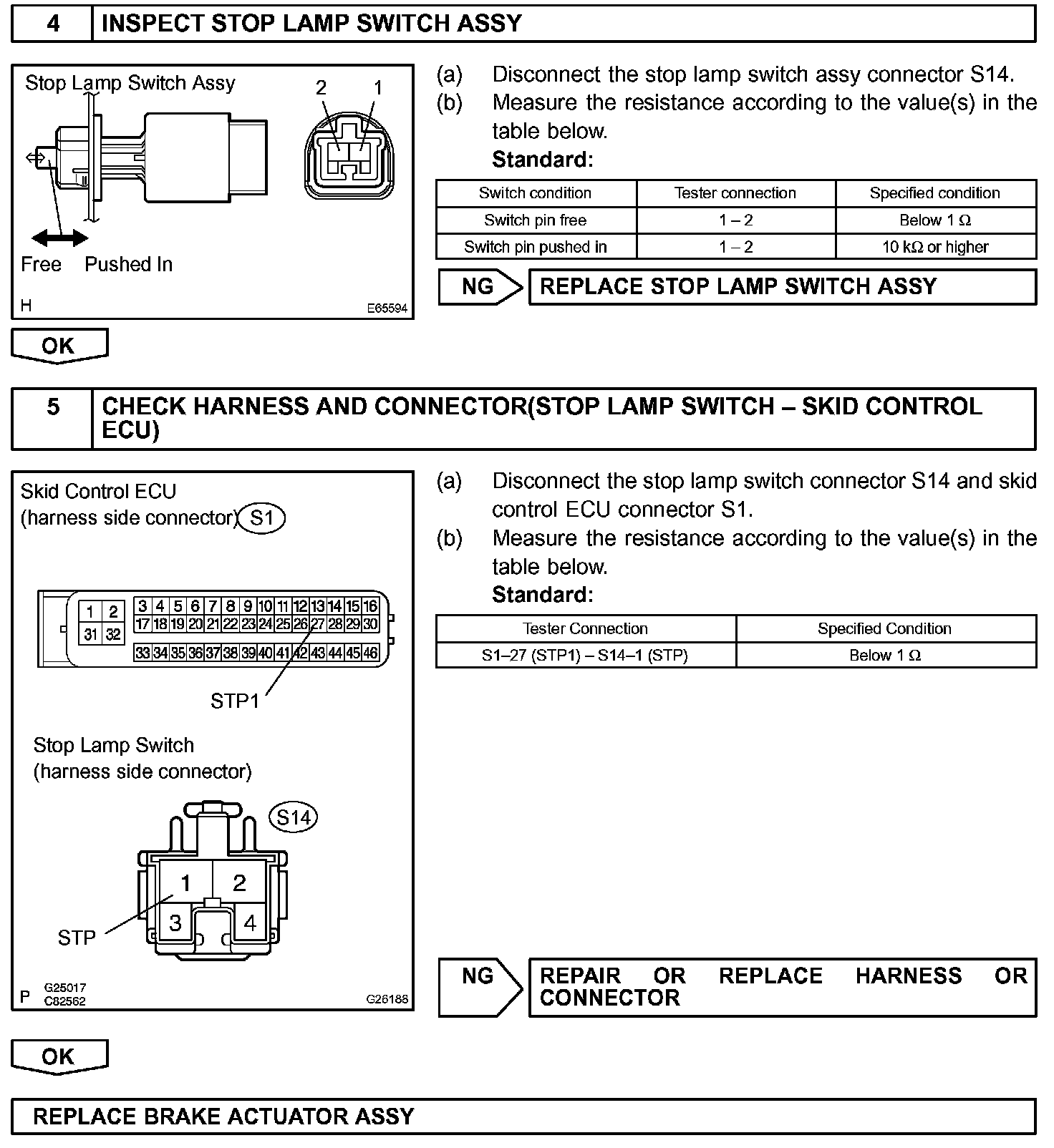

Step 4 - 5:
INSPECTION PROCEDURE
