Air Conditioning System

DTC 12 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the temperature outside the cabin and sends the appropriate signals to the A/C amplifier.

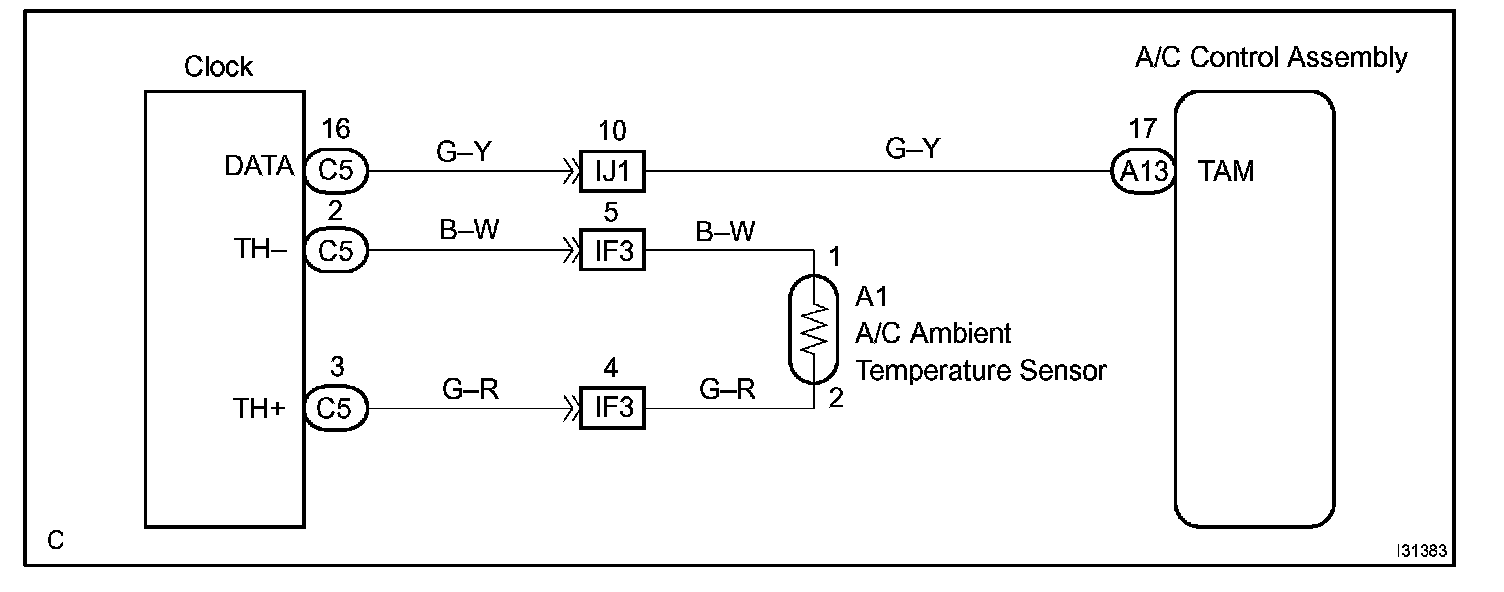

Wiring Diagram:

Step 1 - 4:

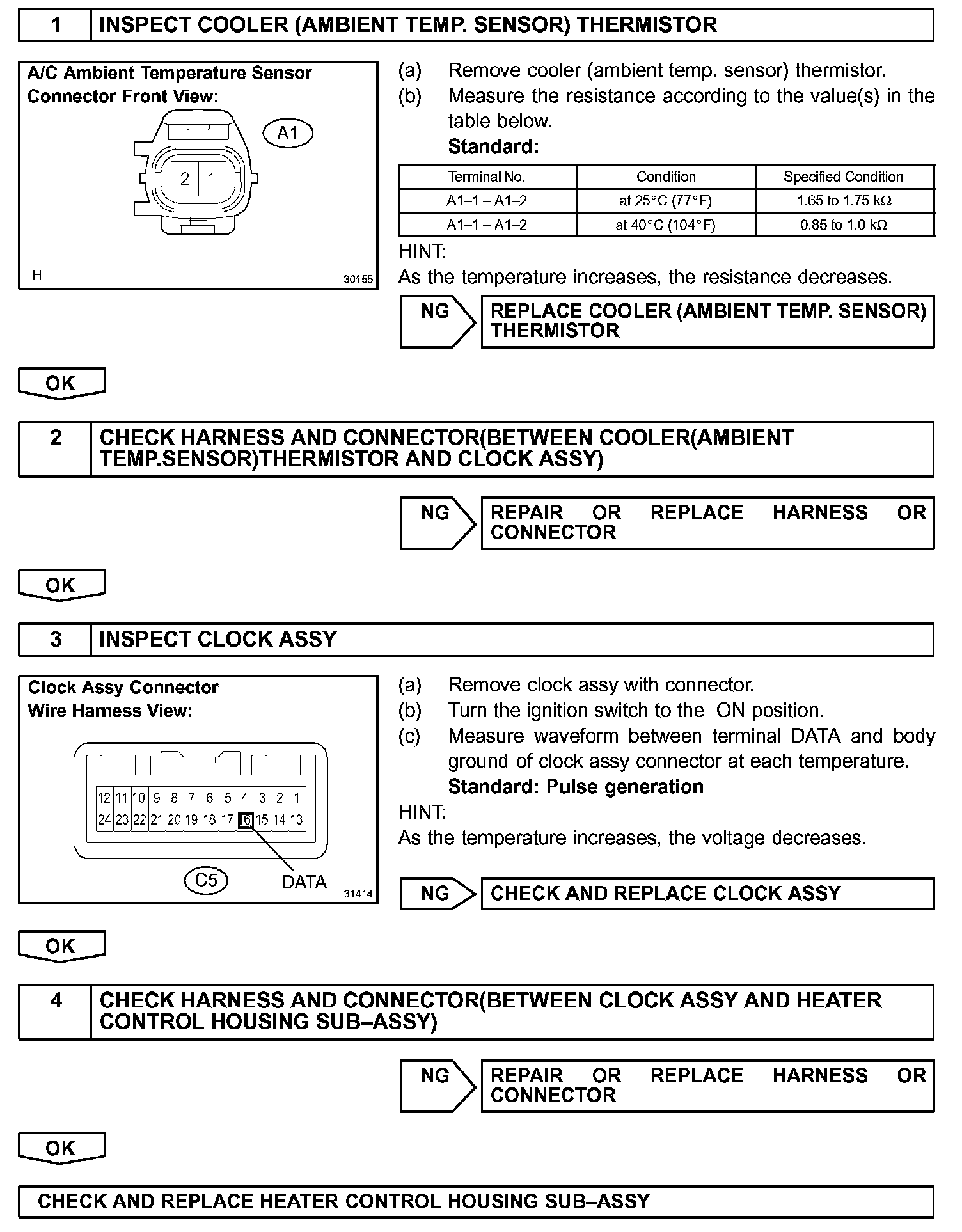

INSPECTION PROCEDURE
