DTC 51
>>
ABS W/EBD System (Denso Made)
ABS W/EBD System (Denso Made)
DTC 51 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND

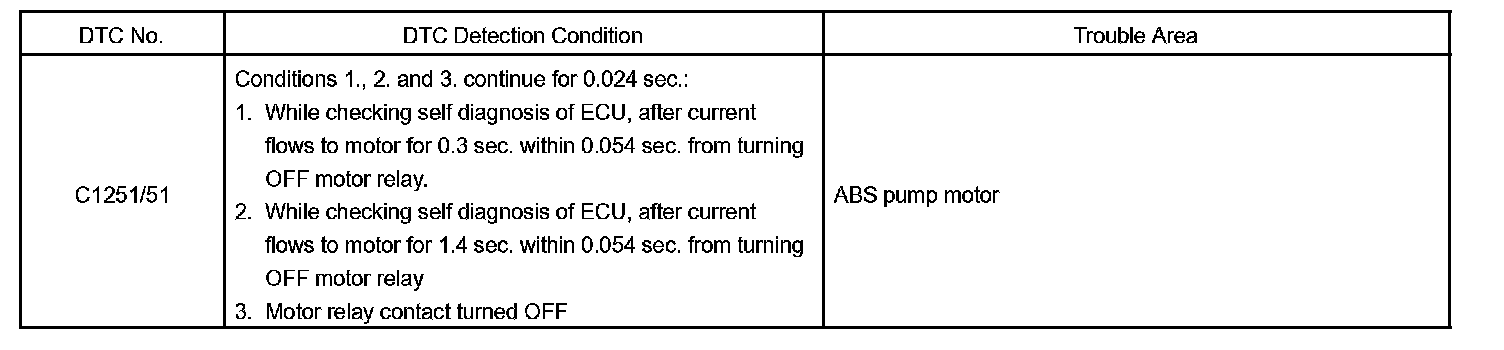

DTC Detection Condition:
CIRCUIT DESCRIPTION

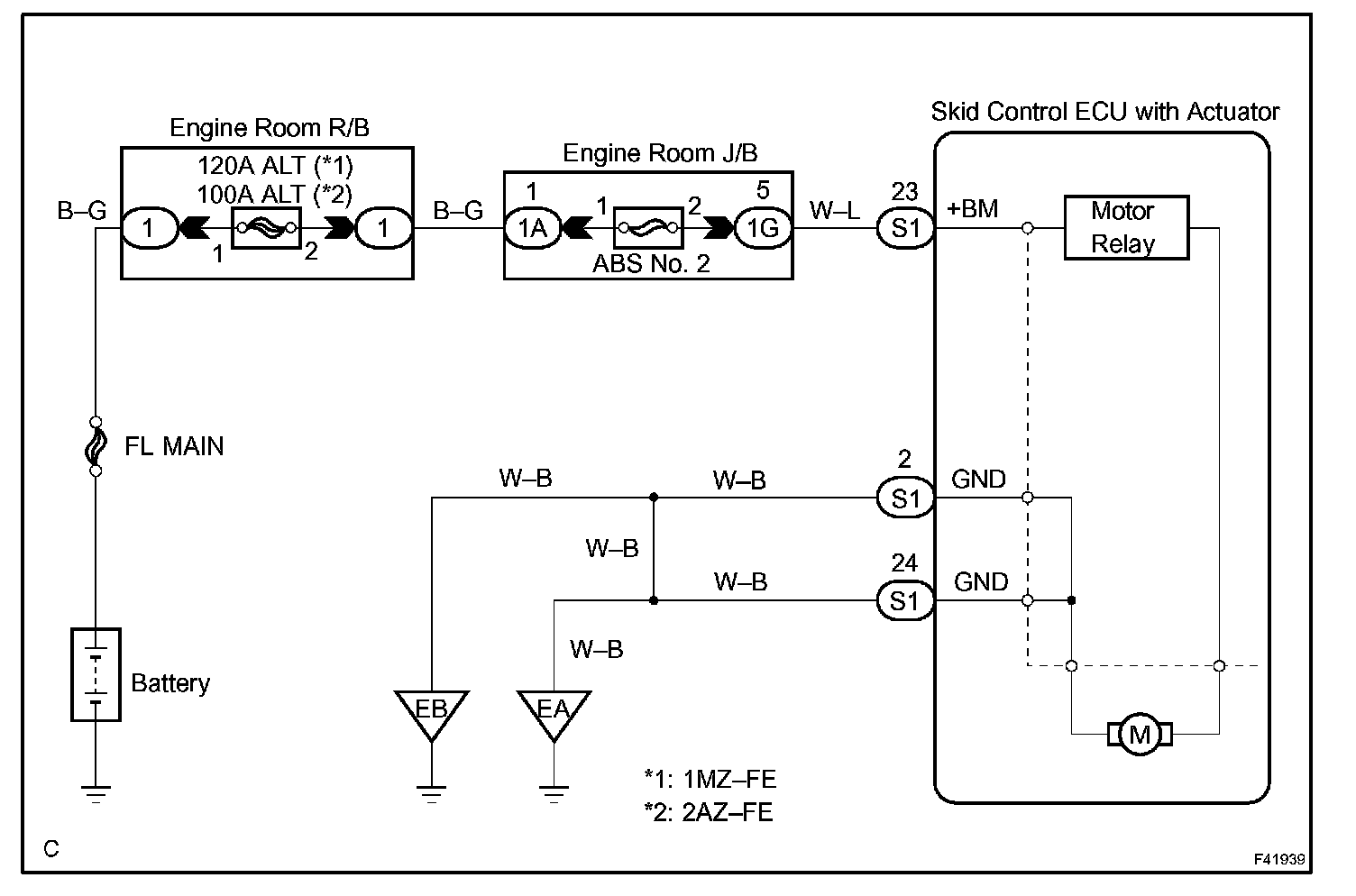

Wiring Diagram:

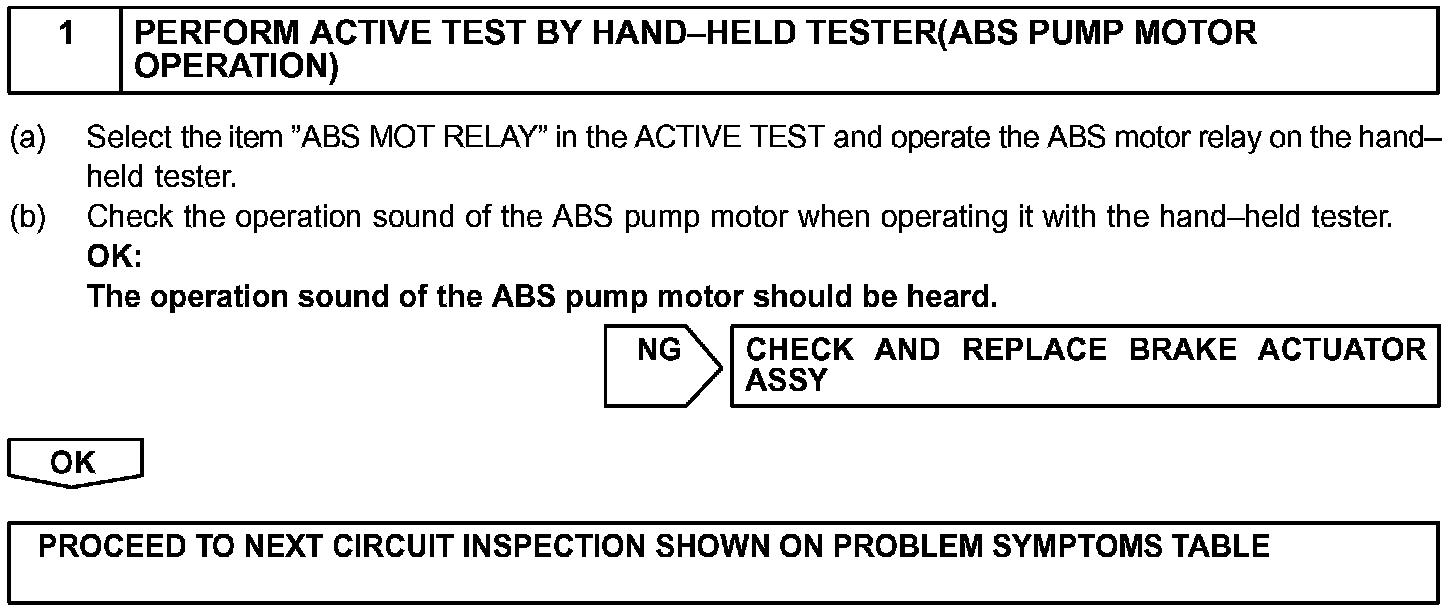

Step 1:
INSPECTION PROCEDURE
