Amplifier: Service and Repair

STEREO COMPONENT AMPLIFIER ASSEMBLY

REPLACEMENT

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1
4. REMOVE GLOVE COMPARTMENT DOOR PAD
5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER




6. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
a. Disconnect the connectors.

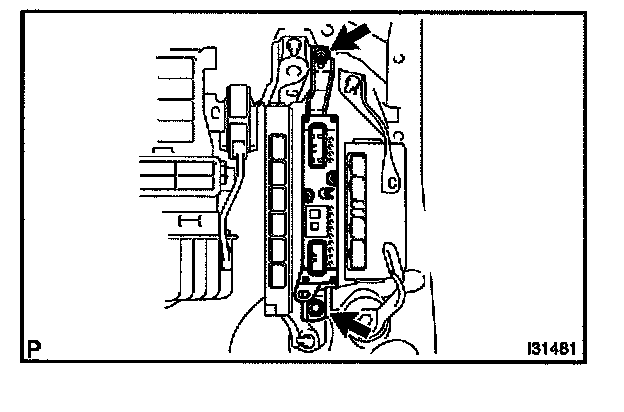

b. Remove the 2 nuts and stereo component amplifier assembly
