Front No.1 Speaker Assy

REPLACEMENT

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH




5. REMOVE FRONT NO.1 SPEAKER ASSEMBLY
a. Disconnect the connector.

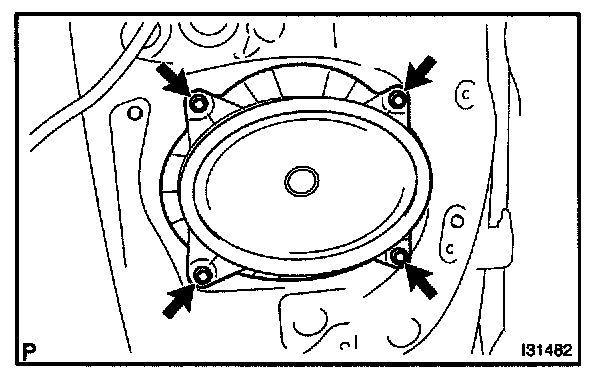

b. Remove the 4 screws and front No.1 speaker assembly.




6. INSTALL FRONT NO.1 SPEAKER ASSEMBLY

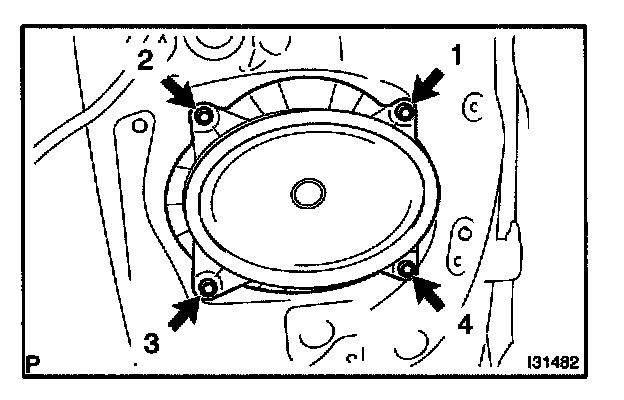

a. Install the front No.1 speaker assembly with the 4 screws.

NOTE: Install them in the order shown in the illustration.

b. Connect the connector.
