Light Switch Does Not Light Up Night Time Illumination of Radio
Light Switch Does Not Light Up Night Time Illumination of Radio
TURNING ON LIGHT SWITCH DOES NOT COME ON NIGHT TIME ILLUMINATION OF RADIO RECEIVER

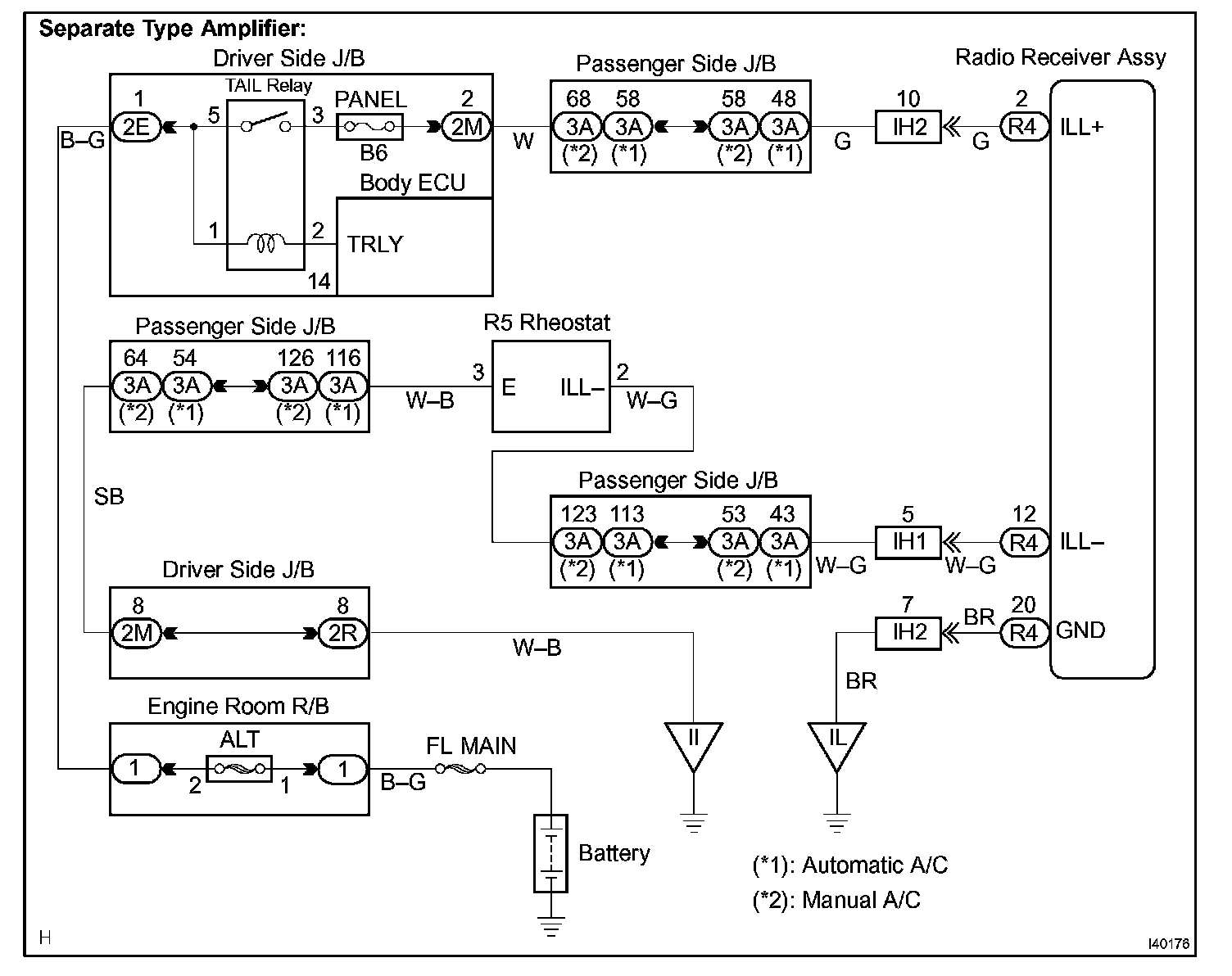

Wiring Diagram:
Wiring Diagram:

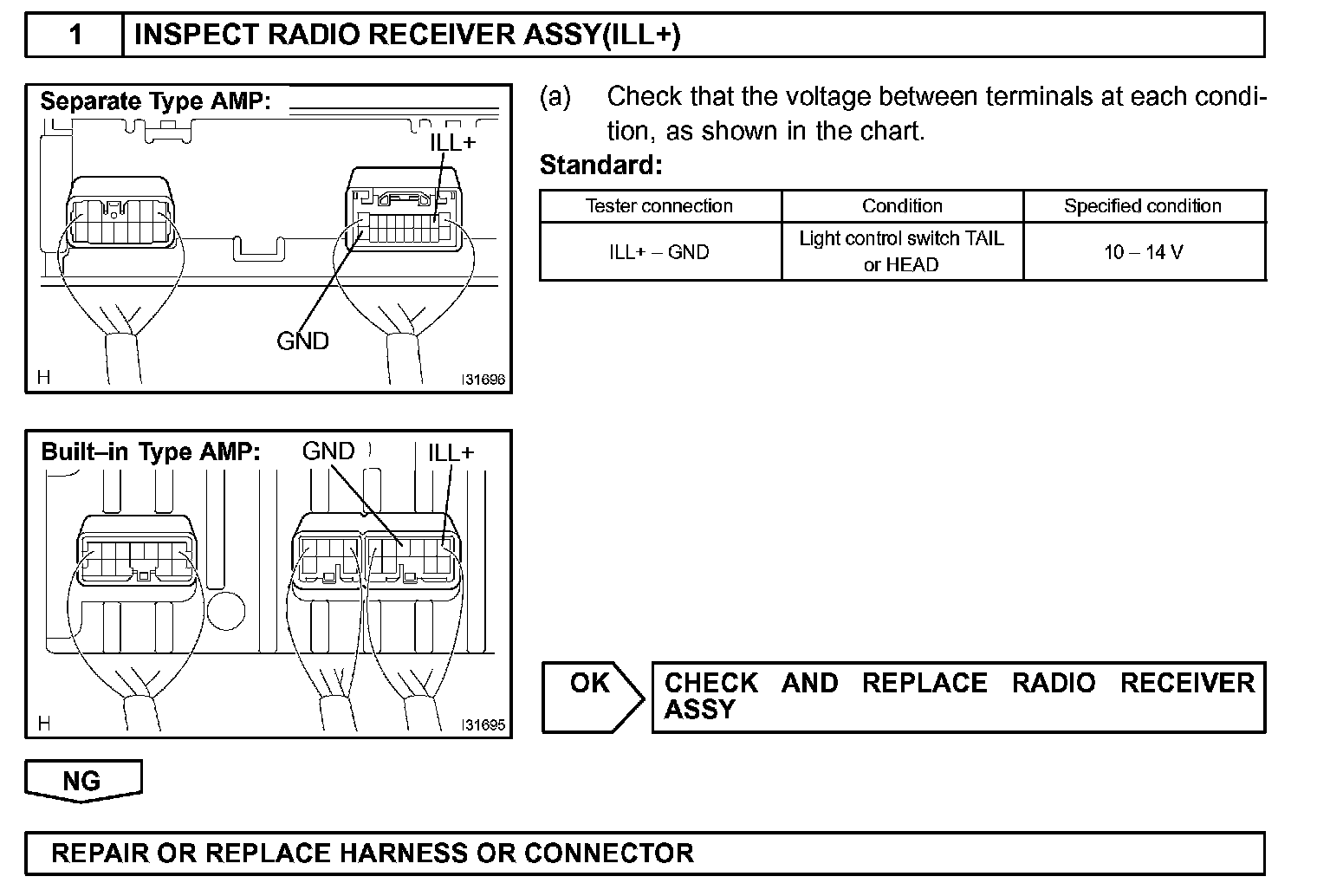

Step 1:
INSPECTION PROCEDURE
