VSC Warning Light Circuit (Does Not Light Up)

VSC WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION
If the ECU stores DTC, the VSC warning light lights up on the combination meter.

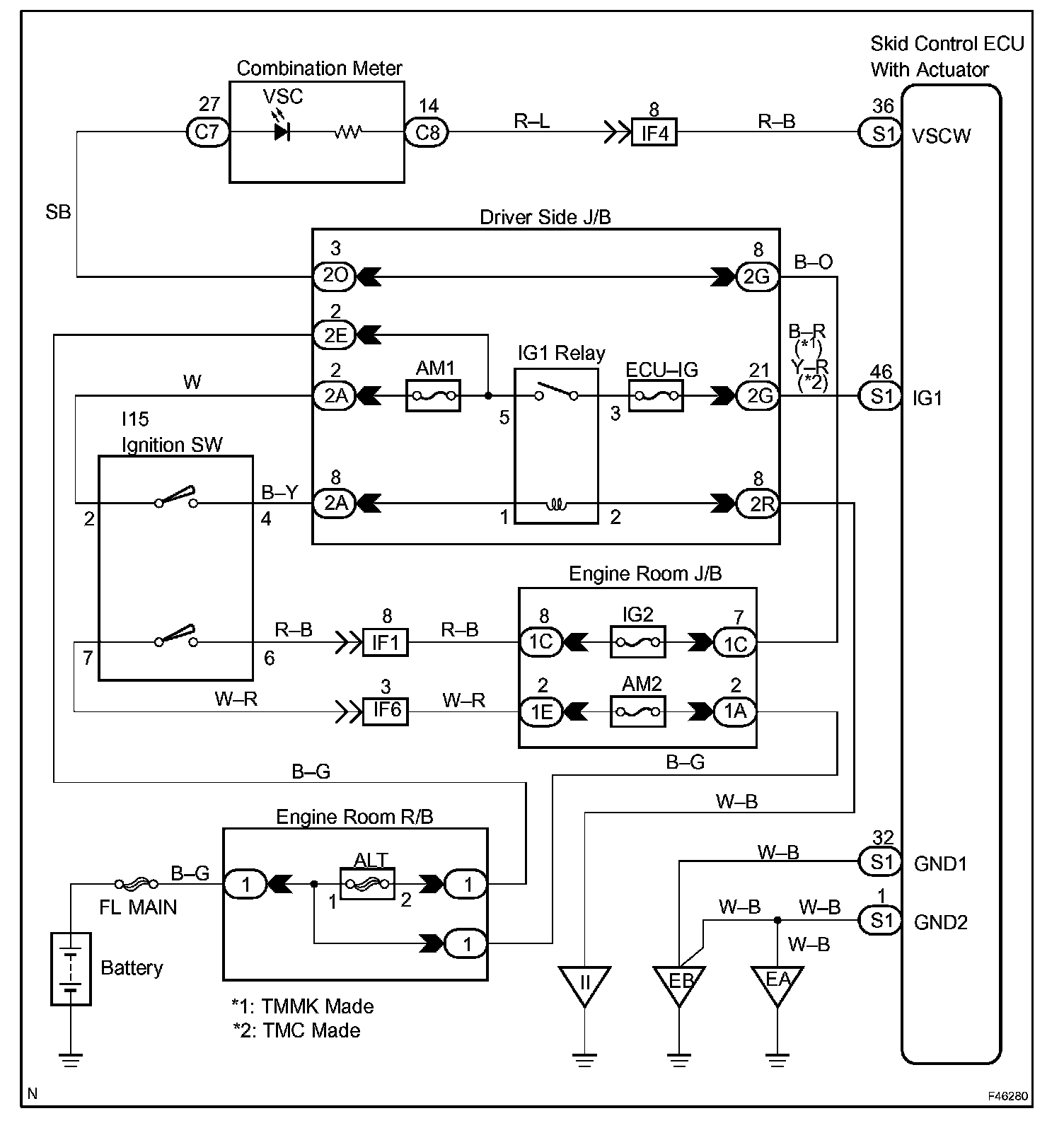

Wiring Diagram:

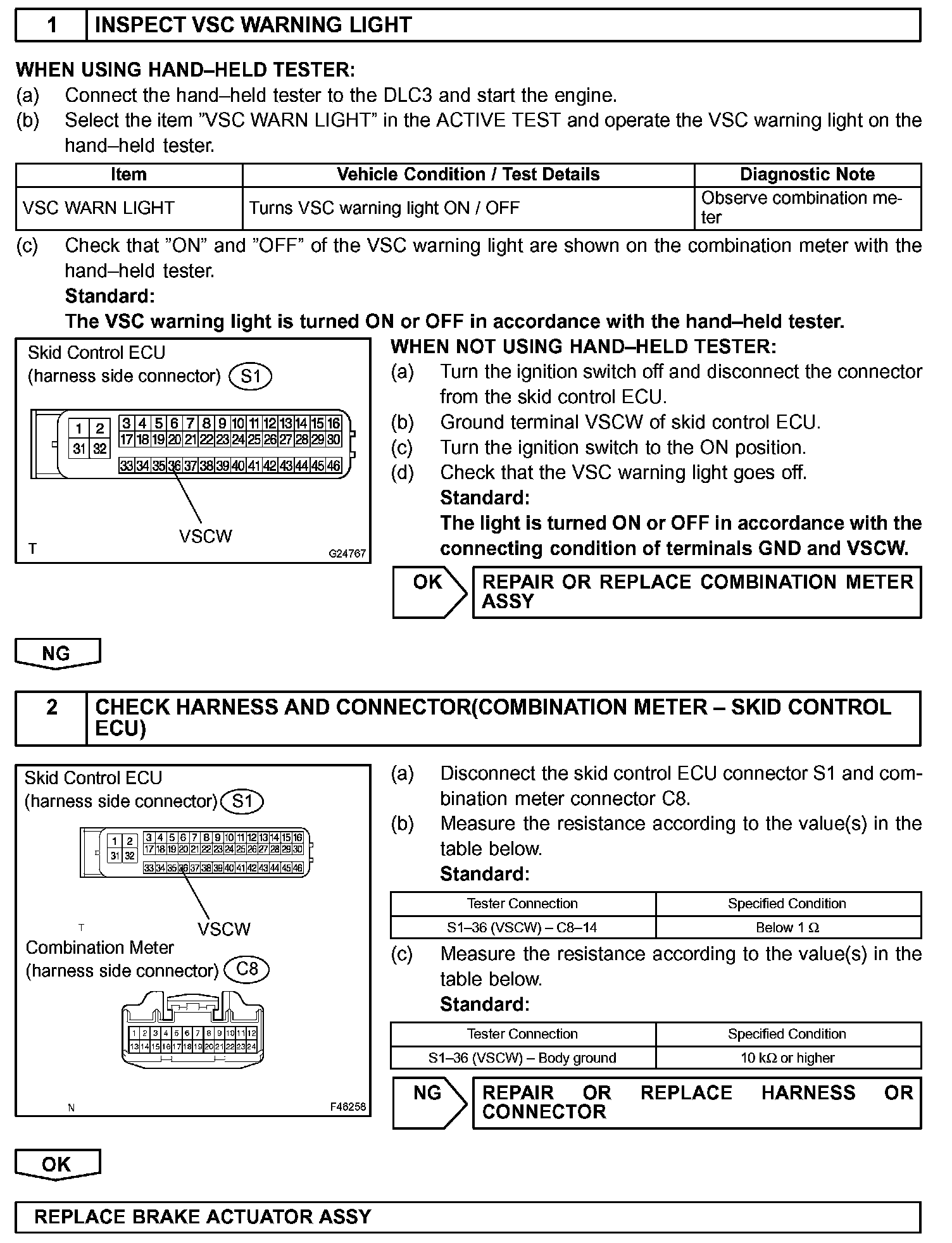

Step 1 - 2:




INSPECTION PROCEDURE
