Parking Brake Pedal: Service and Repair

PARKING BRAKE CONTROL PEDAL ASSY
OVERHAUL
1. REMOVE INSTRUMENT CLUSTER FINISH PANEL
2. REMOVE COMBINATION METER ASSY
3. REMOVE FRONT DOOR SCUFF PLATE LH
4. REMOVE COWL SIDE TRIM SUB-ASSY LH
5. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER
6. REMOVE INSTRUMENT PNL INSERT SUB-ASSY LWR LH





7. REMOVE PARKING BRAKE CONTROL PEDAL ASSY
a. Disconnect the parking brake switch connector.

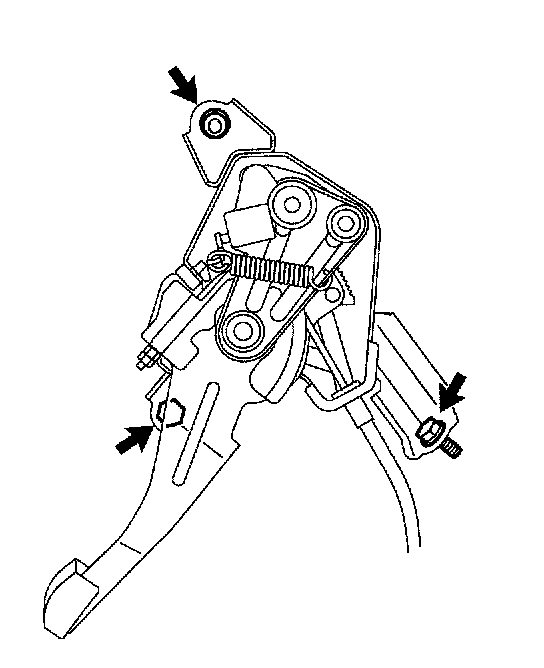

b. Remove the 2 bolts, nut and parking brake control pedal assy.





8. REMOVE PARKING BRAKE CABLE ASSY NO.1

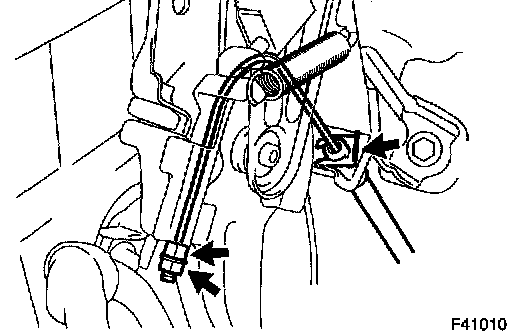

a. Remove the lock nut, adjusting nut, clip and parking brake assy No. 1.
9. REMOVE PARKING BRAKE SWITCH ASSY
a. Remove the screw and parking brake switch assy.
10. REMOVE TENSION SPRING
11. REMOVE RETURN SPRING DAMPER
12. REMOVE PARKING PEDAL PAD
13. INSTALL PARKING PEDAL PAD
14. INSTALL RETURN SPRING DAMPER
15. INSTALL TENSION SPRING
16. INSTALL PARKING BRAKE SWITCH ASSY
a. Install the parking brake switch assy with the screw.





17. INSTALL PARKING BRAKE CABLE ASSY NO.1

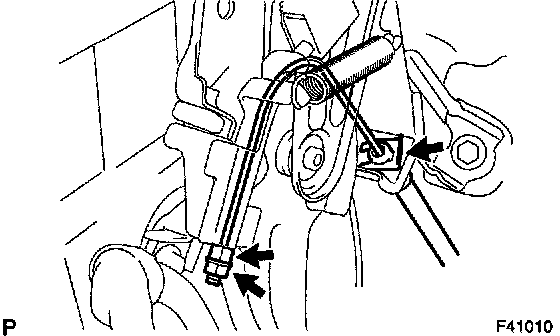

a. Install the parking brake cable assy No.1 with the clip, adjusting nut and lock nut.





18. INSTALL PARKING BRAKE CONTROL PEDAL ASSY

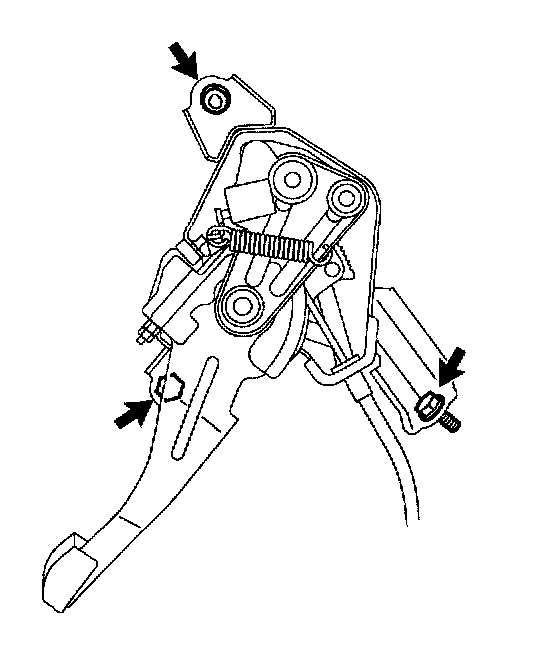

a. Install the parking brake control pedal assy with the 2 bolts and nut.
Torque: 39 Nm (398 kgf-cm, 29 ft. lbs.)
b. Connect the parking brake switch connector.
19. INSTALL INSTRUMENT PNL INSERT SUB-ASSY LWR LH
20. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
21. INSTALL COWL SIDE TRIM SUB-ASSY LH
22. INSTALL FRONT DOOR SCUFF PLATE LH
23. INSTALL COMBINATION METER ASSY
24. INSTALL INSTRUMENT CLUSTER FINISH PANEL
25. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
