Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Camry V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Injector
Fuel Injector

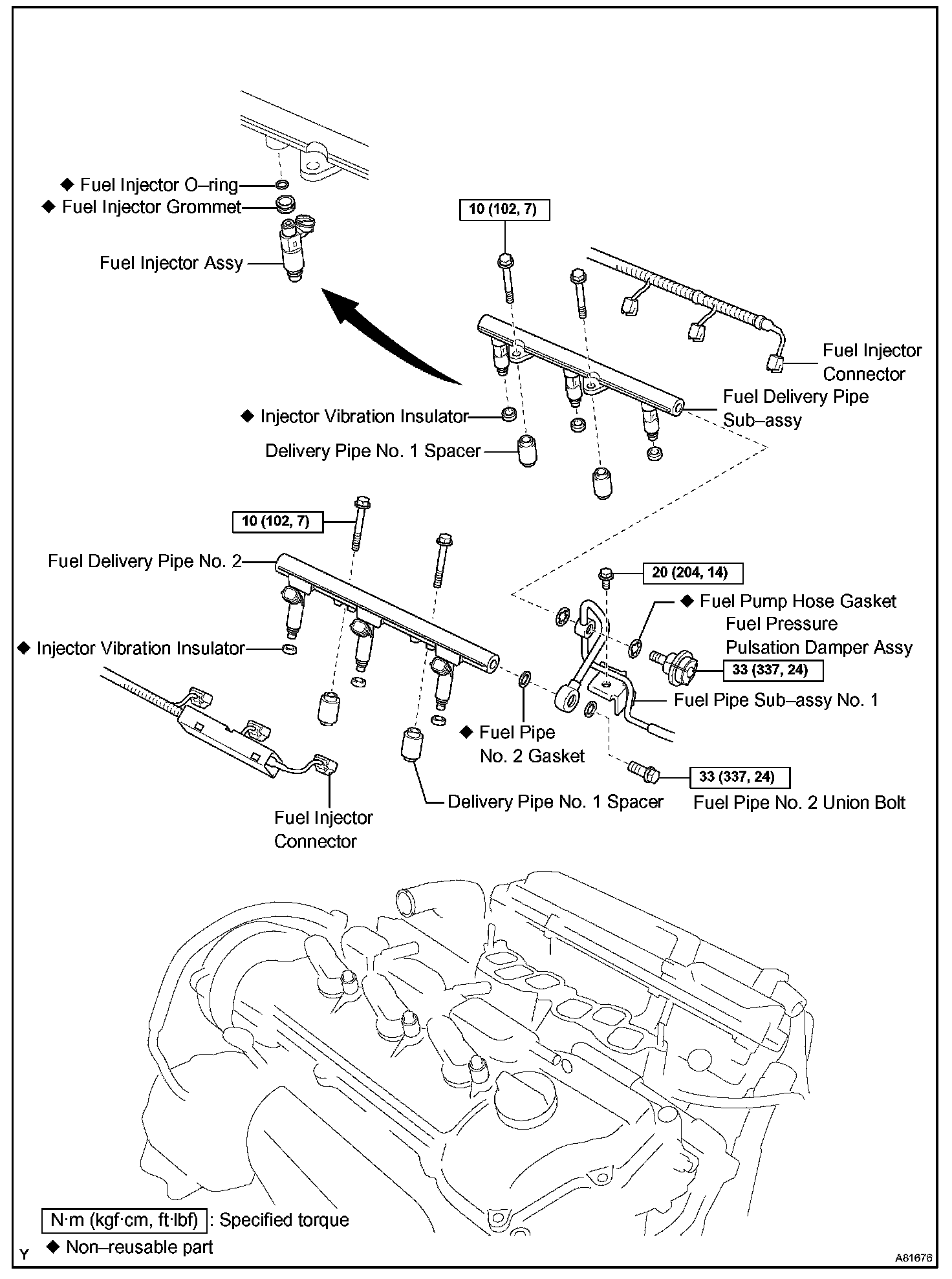

Fuel Injector Assy:
Fuel Injector Assy:
Fuel Injector Assy:
