Home >> Toyota >> 2004 >> Camry V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

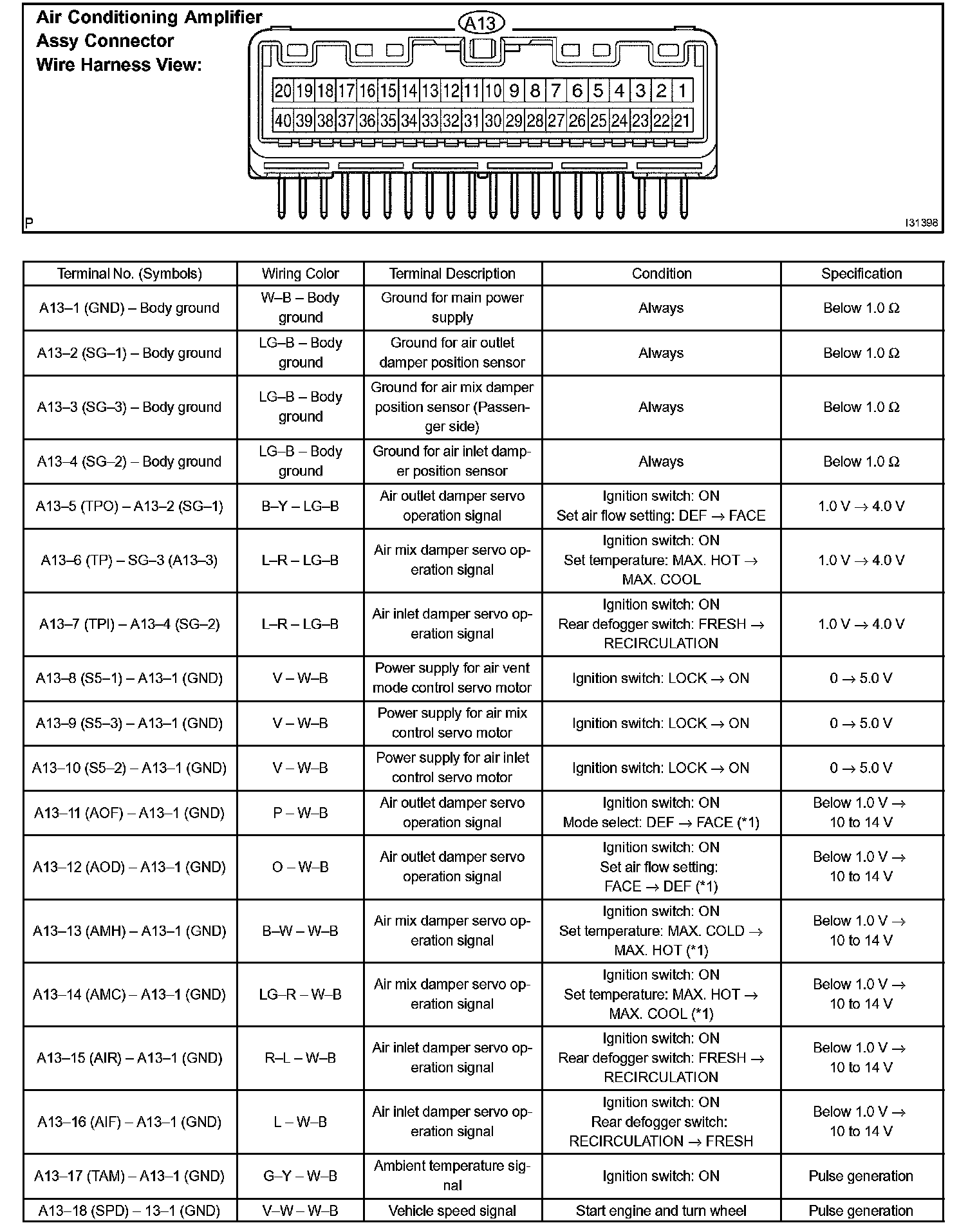

Terminals Of ECU/Pinouts - Heater Control Housing Sub-Assy (A/C Amplifier) Part 1:

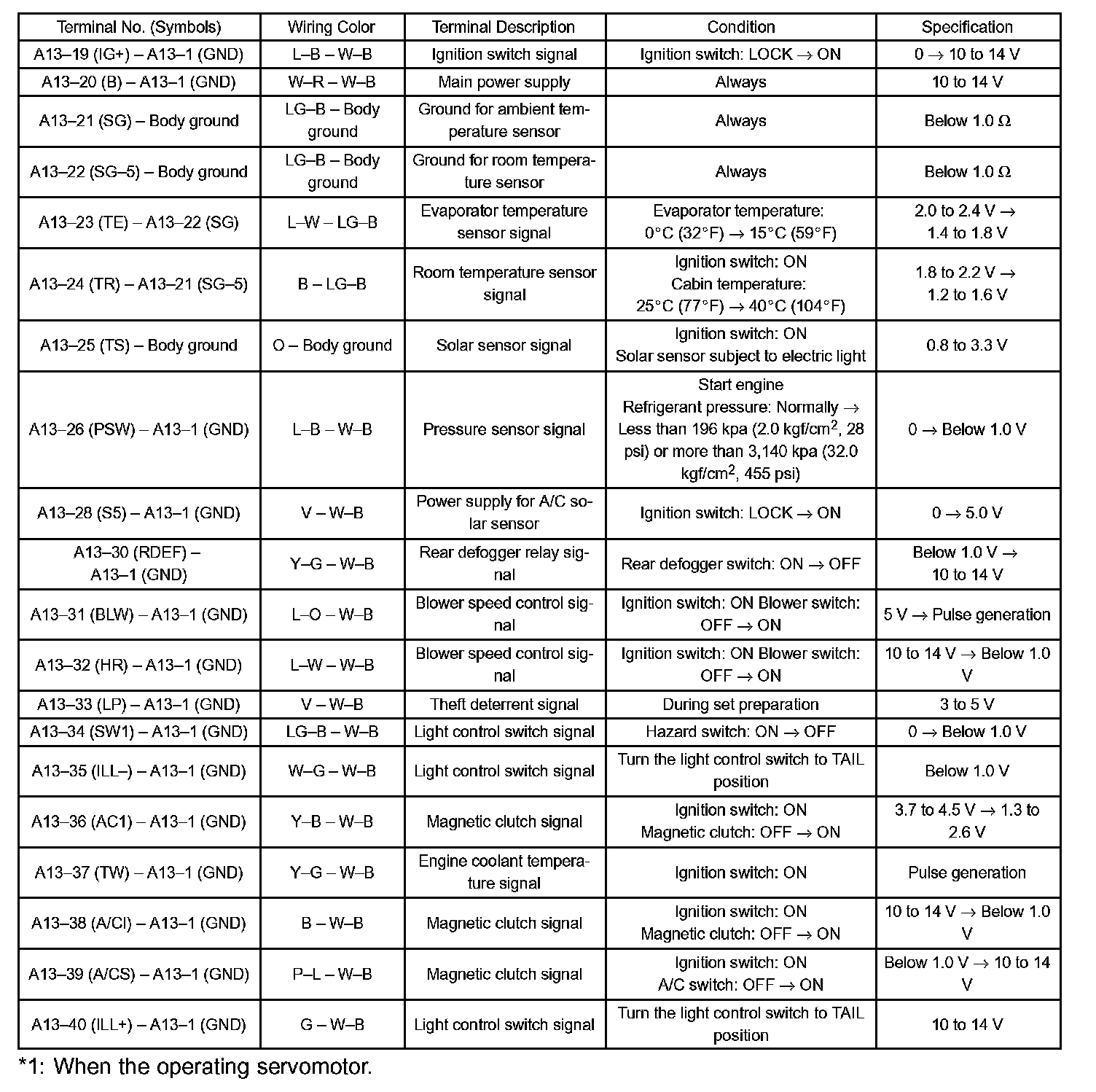

Terminals Of ECU/Pinouts - Heater Control Housing Sub-Assy (A/C Amplifier) Part 2:

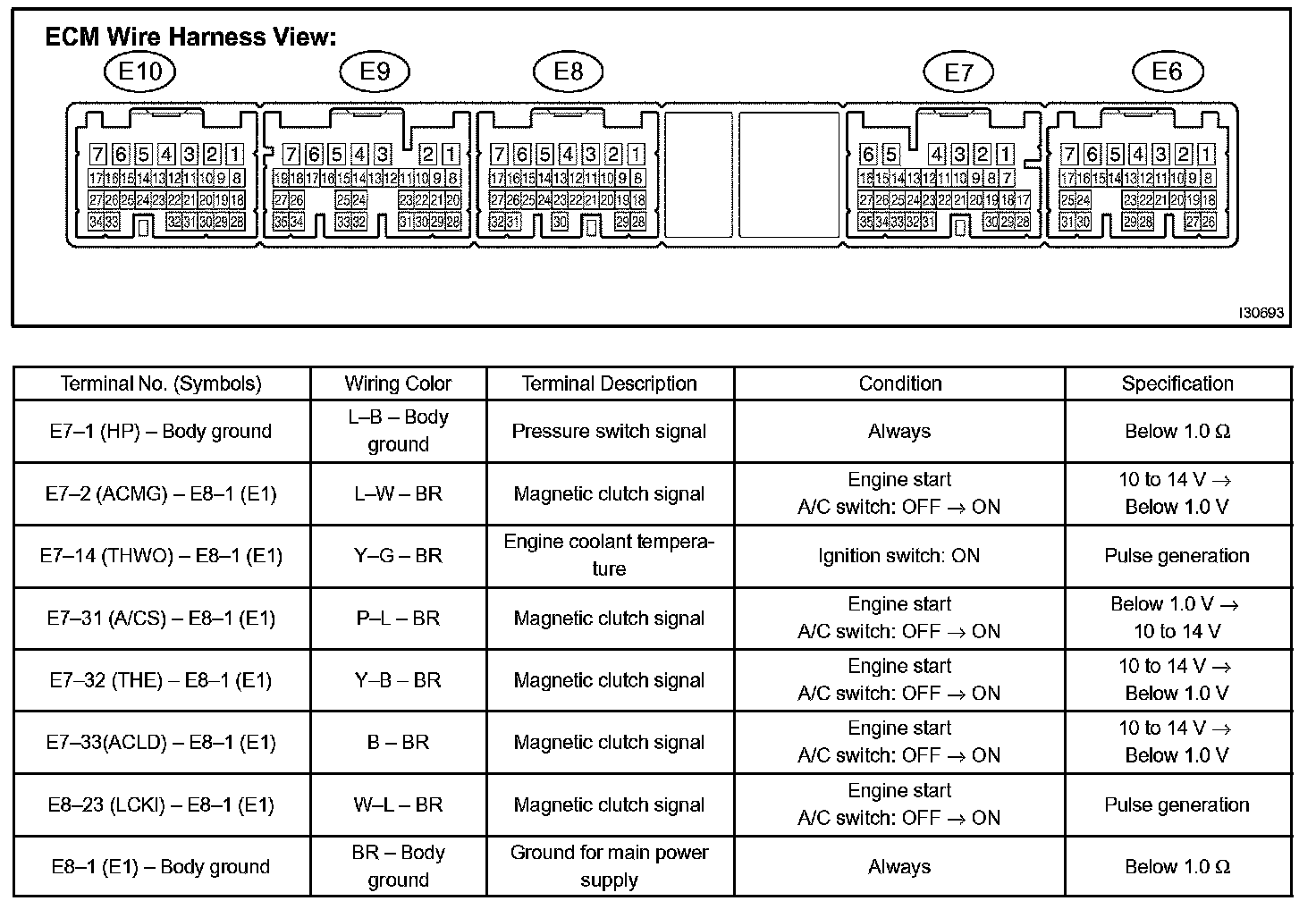

Terminals Of ECM/Pinouts:
