Malfunction In Water Temperature Receiver Gauge
MALFUNCTION IN WATER TEMPERATURE RECEIVER GAUGE

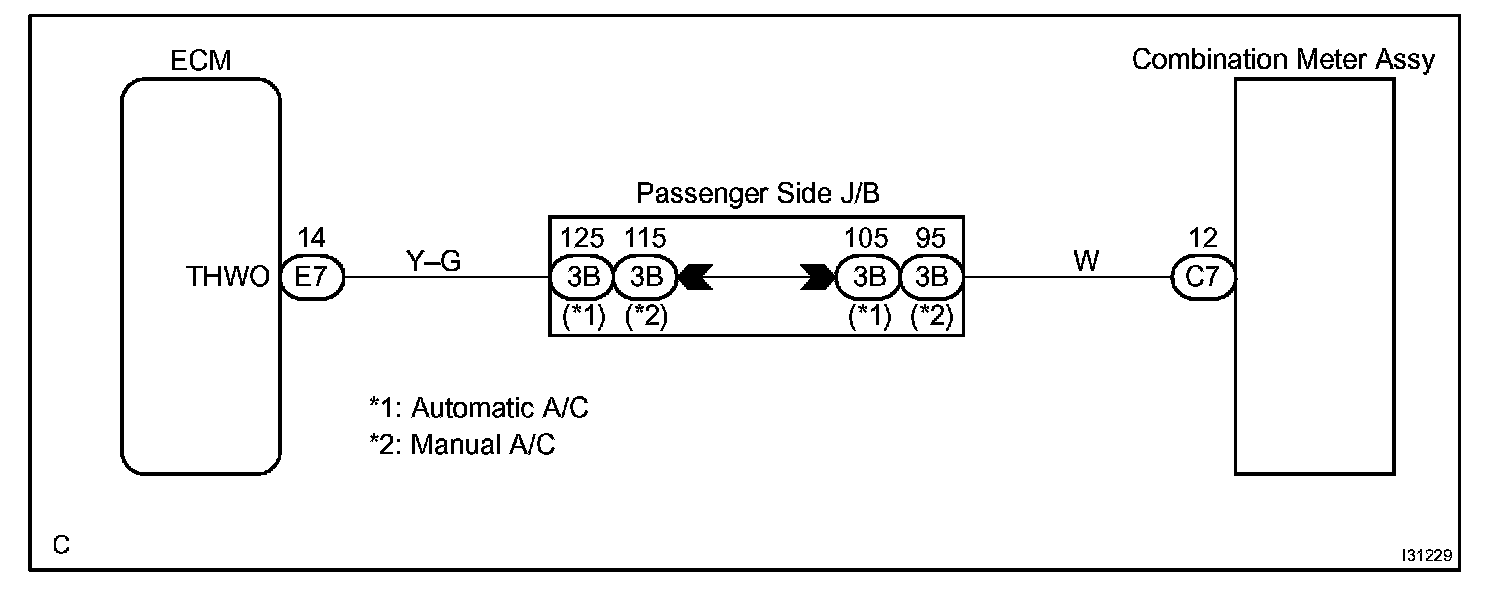

Wiring Diagram:

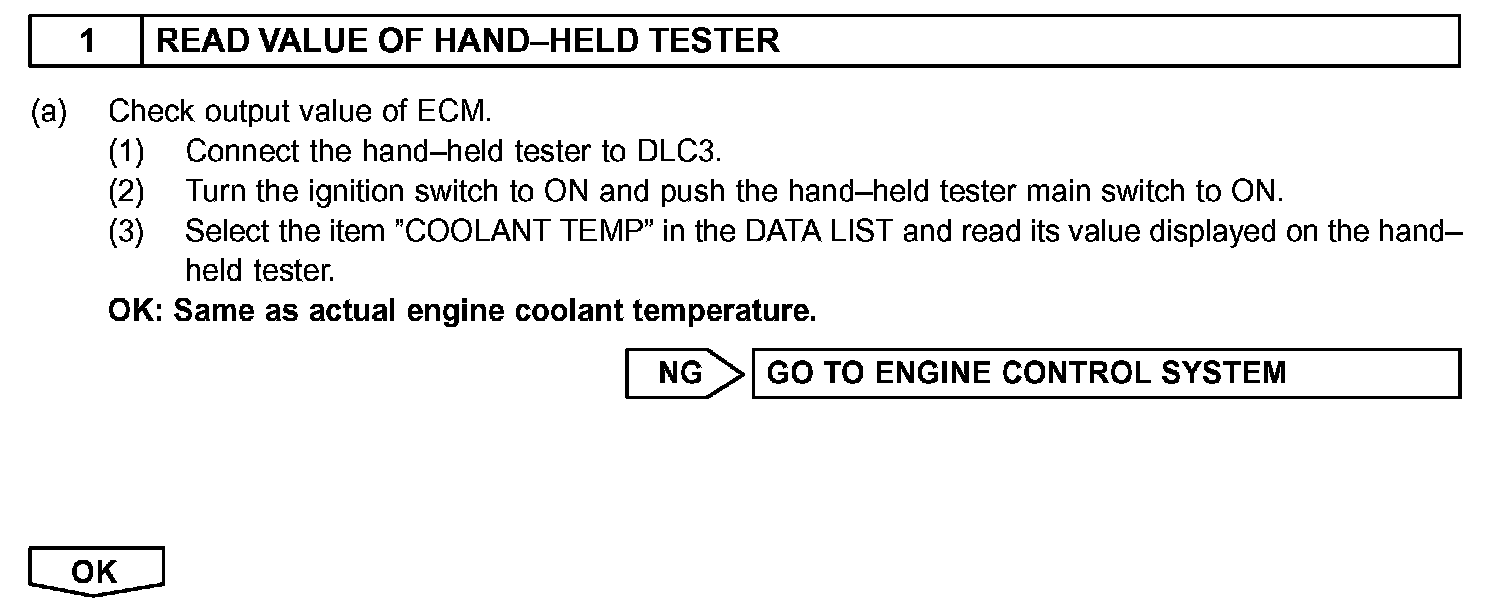

Step 1:

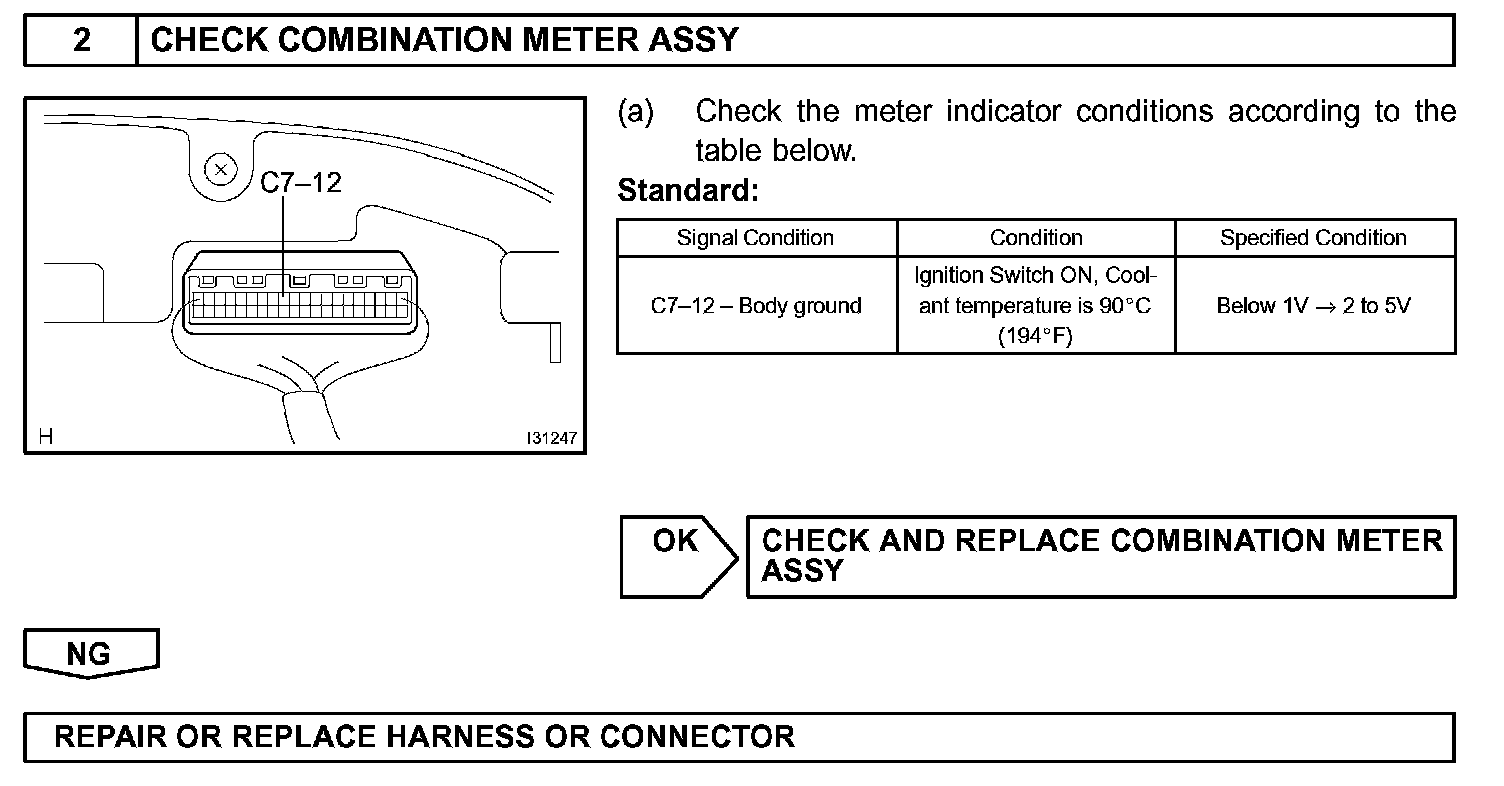

Step 2:
INSPECTION PROCEDURE
