ACIS Control Circuit

ACIS CONTROL CIRCUIT

CIRCUIT DESCRIPTION

HINT: The engine has a VSV (No.1 only)
ACIS stands for "Acoustic Control Induction System".




The ECM opens and closes the Intake Air Control (IAC) valve No. 2 in response to engine speed (RPM/NE).

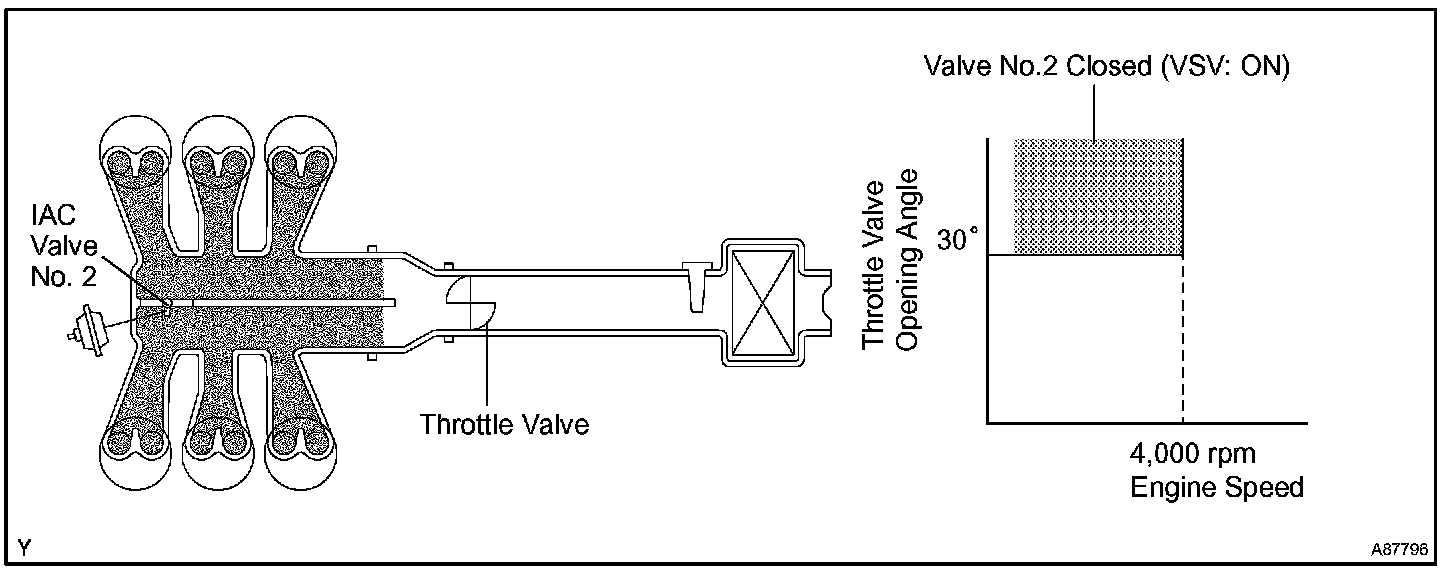

This system improves intake manifold tuning for better efficiency at low and high engine rpm. When the engine speed is 4,000 rpm or less and the throttle valve opening angle is 30° or more, the ECM turns the VSV On or Off to operate the IAC valve.

Wiring Diagram:






INSPECTION PROCEDURE

Step 1:




Step 2:

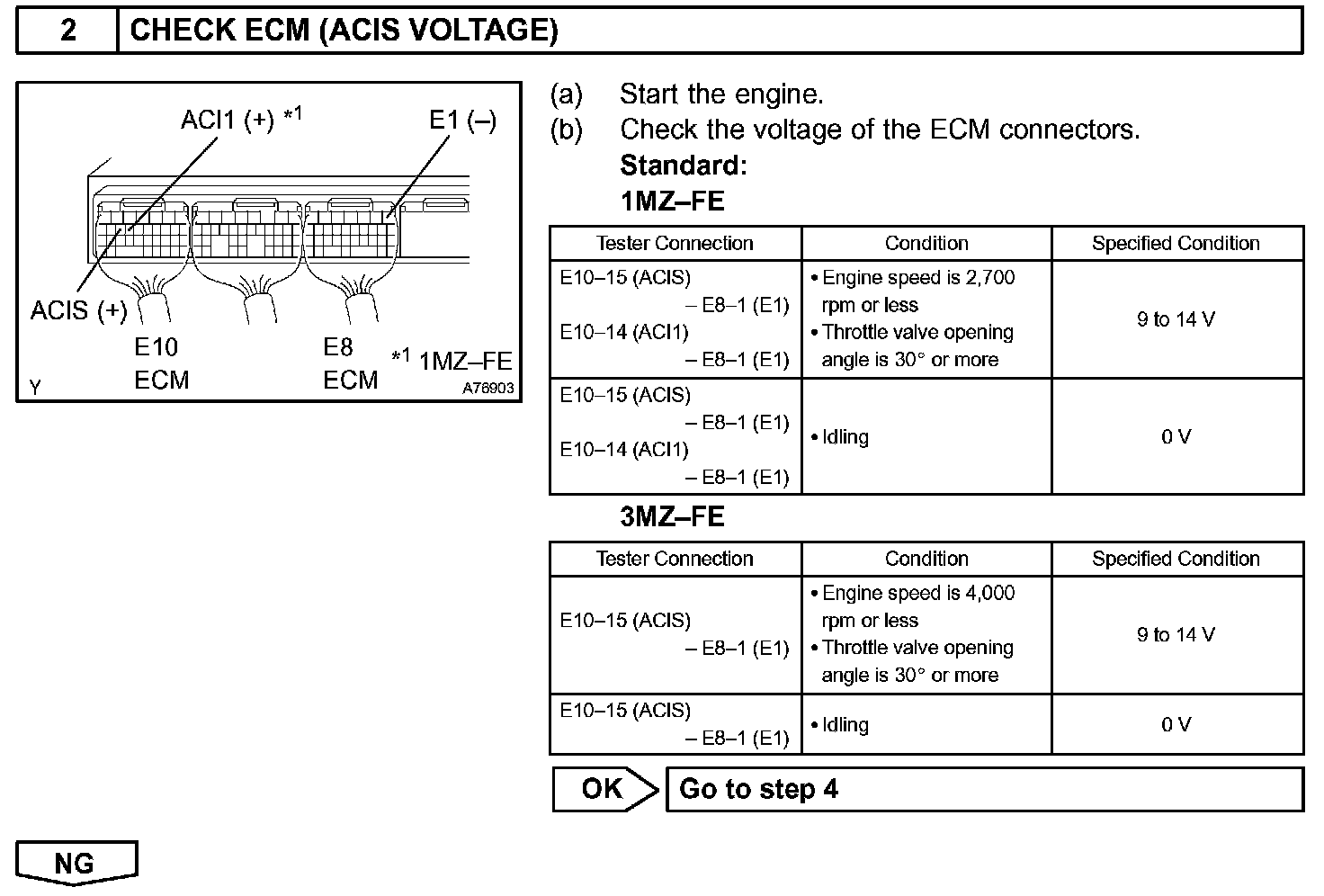

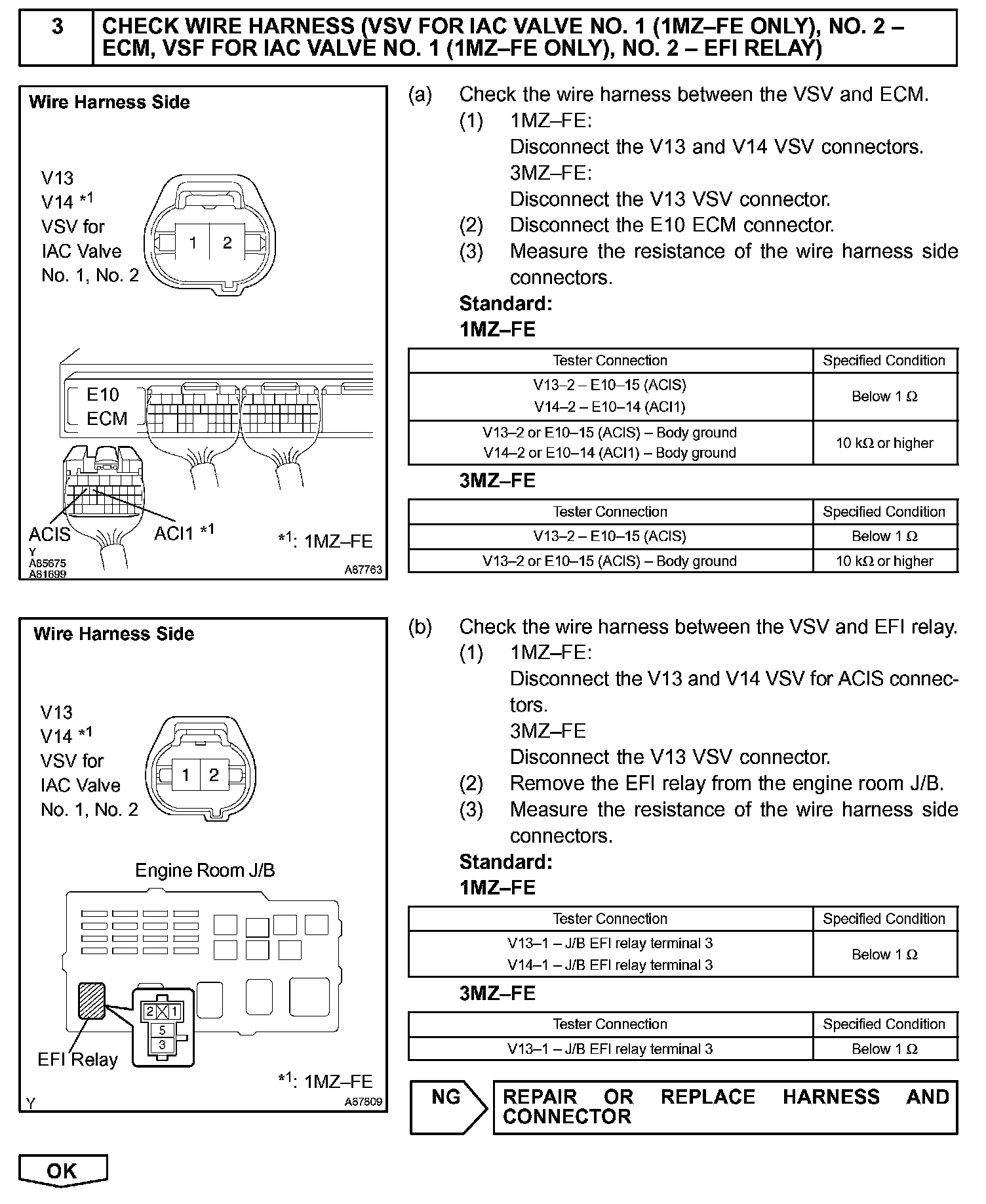

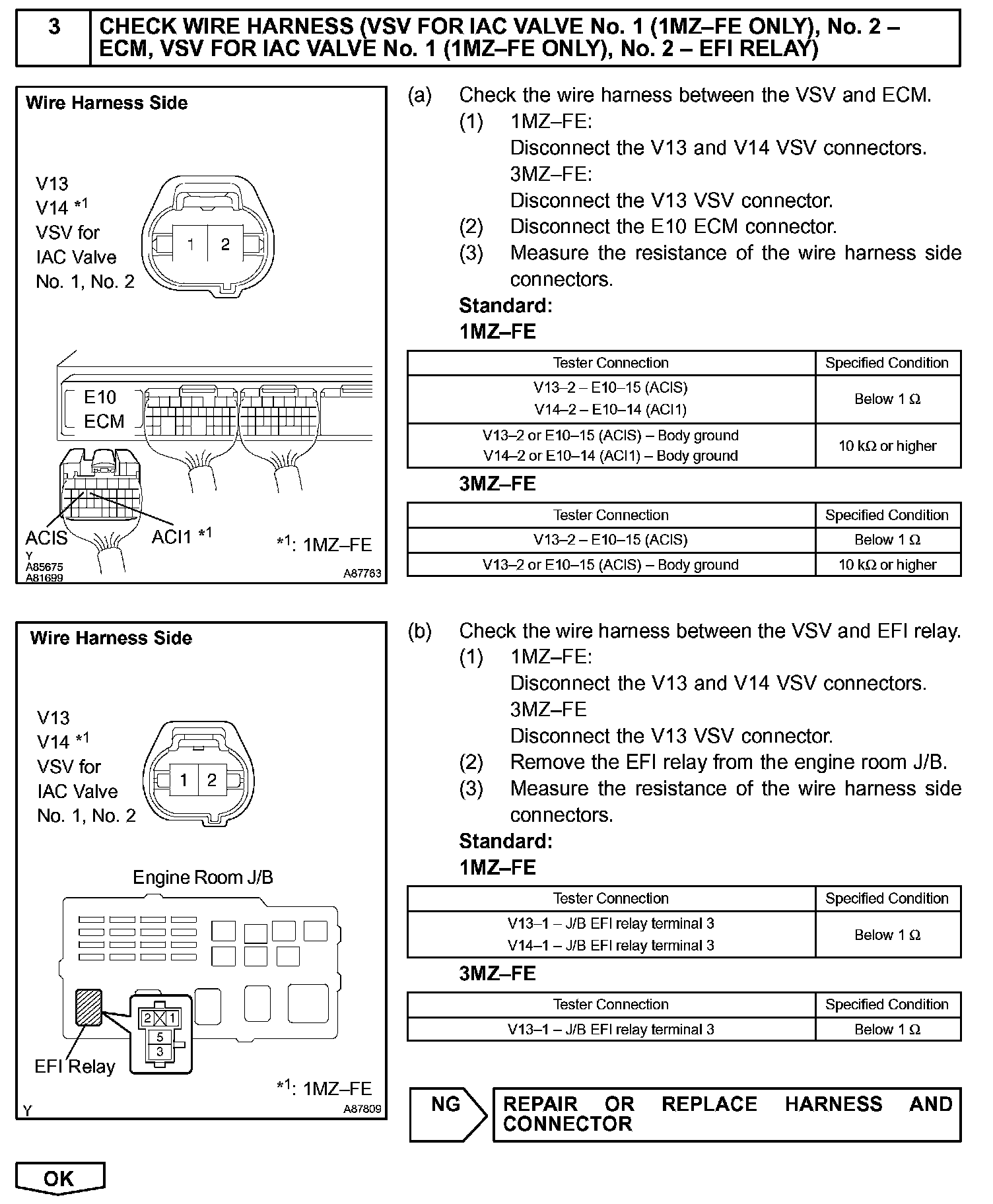

Step 3:

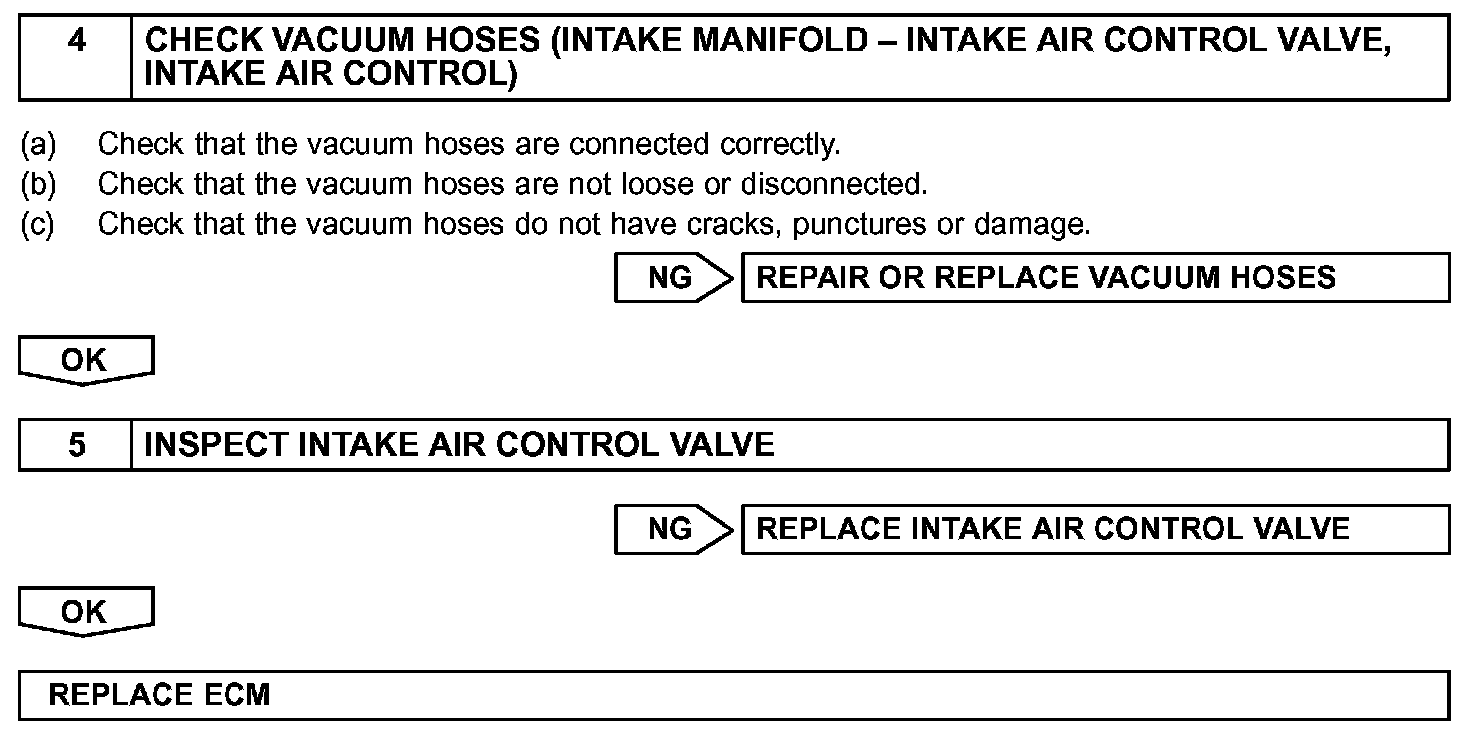

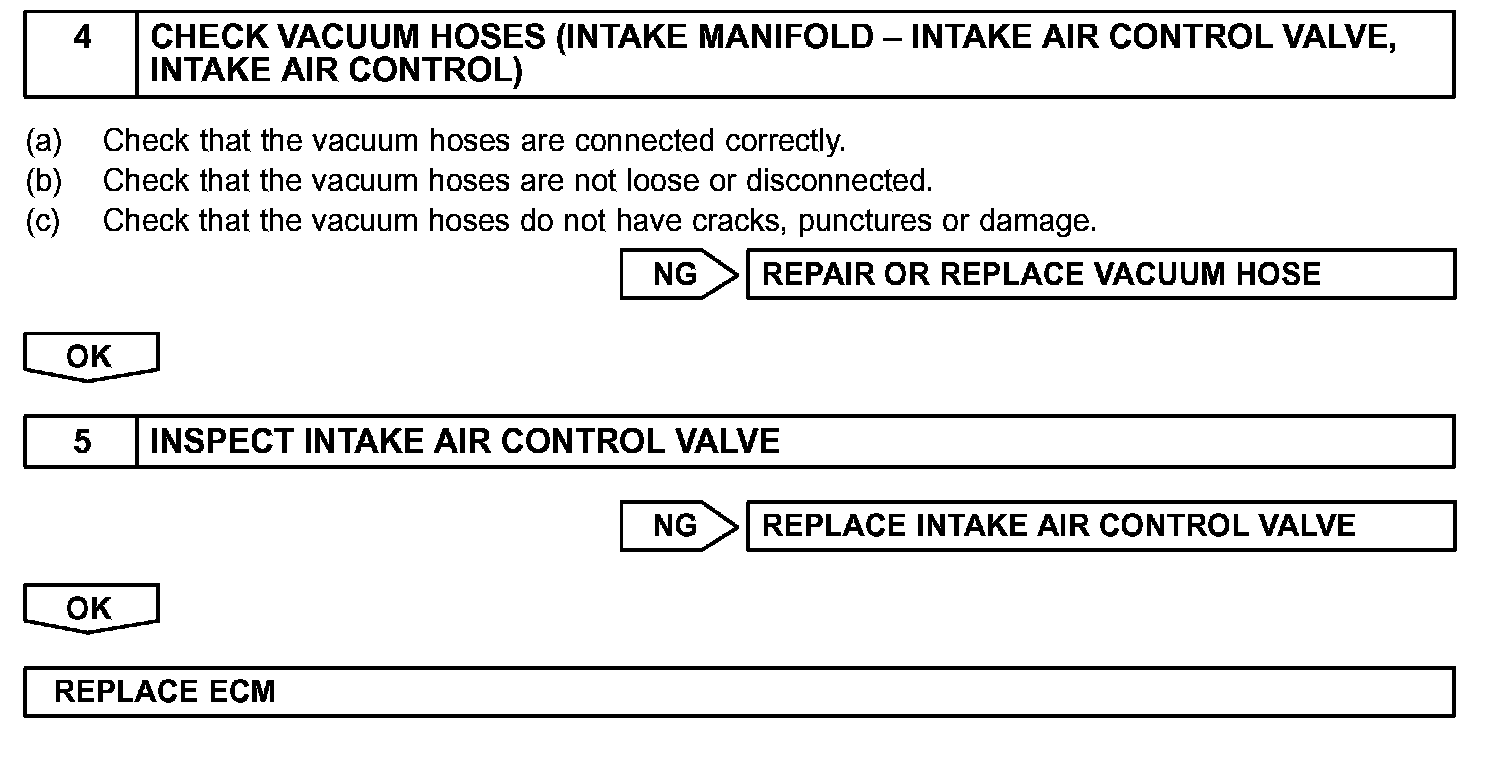

Step 4 - 5:

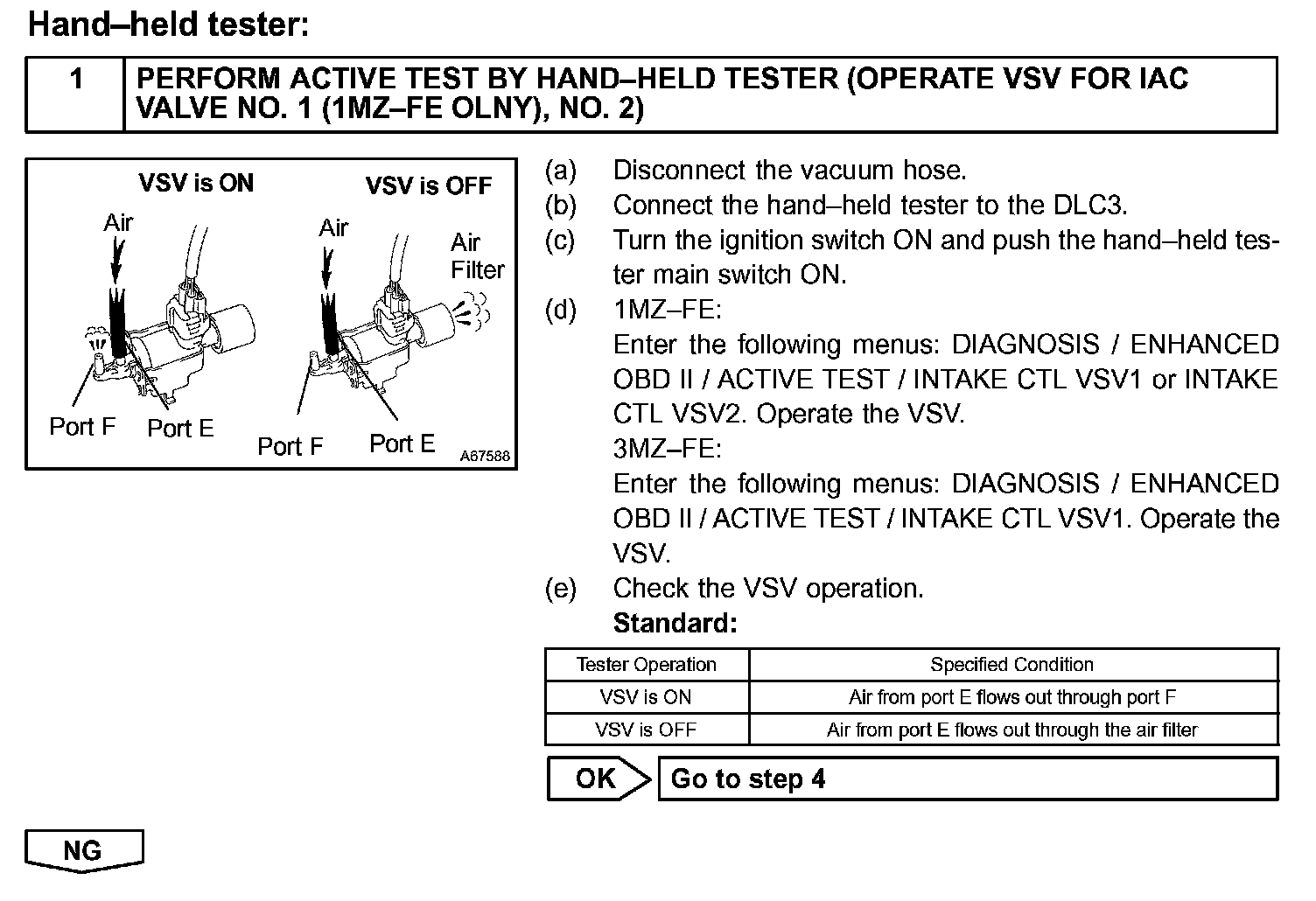

Hand-held Tester

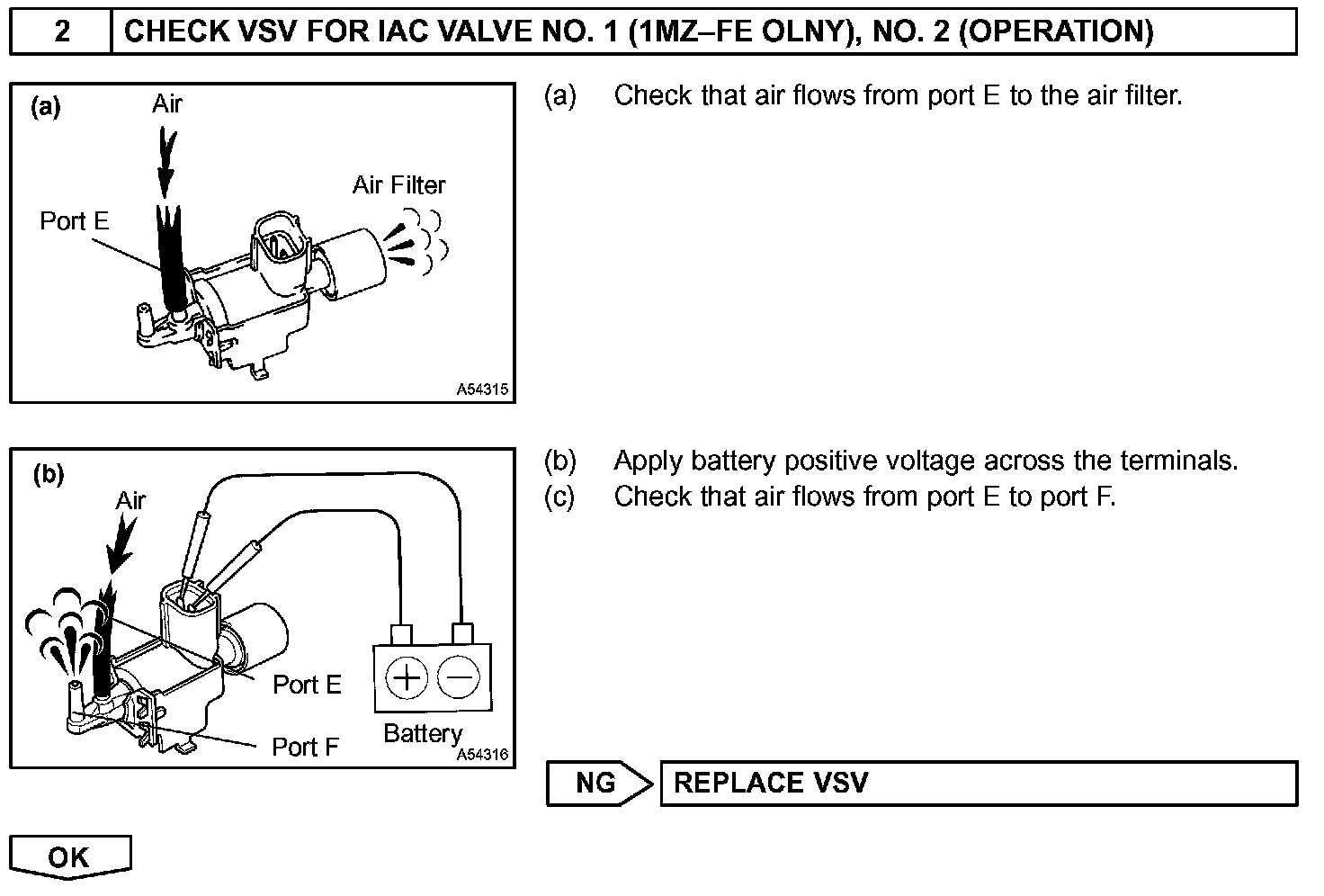

Step 1:




Step 2:




Step 3:




Step 4:

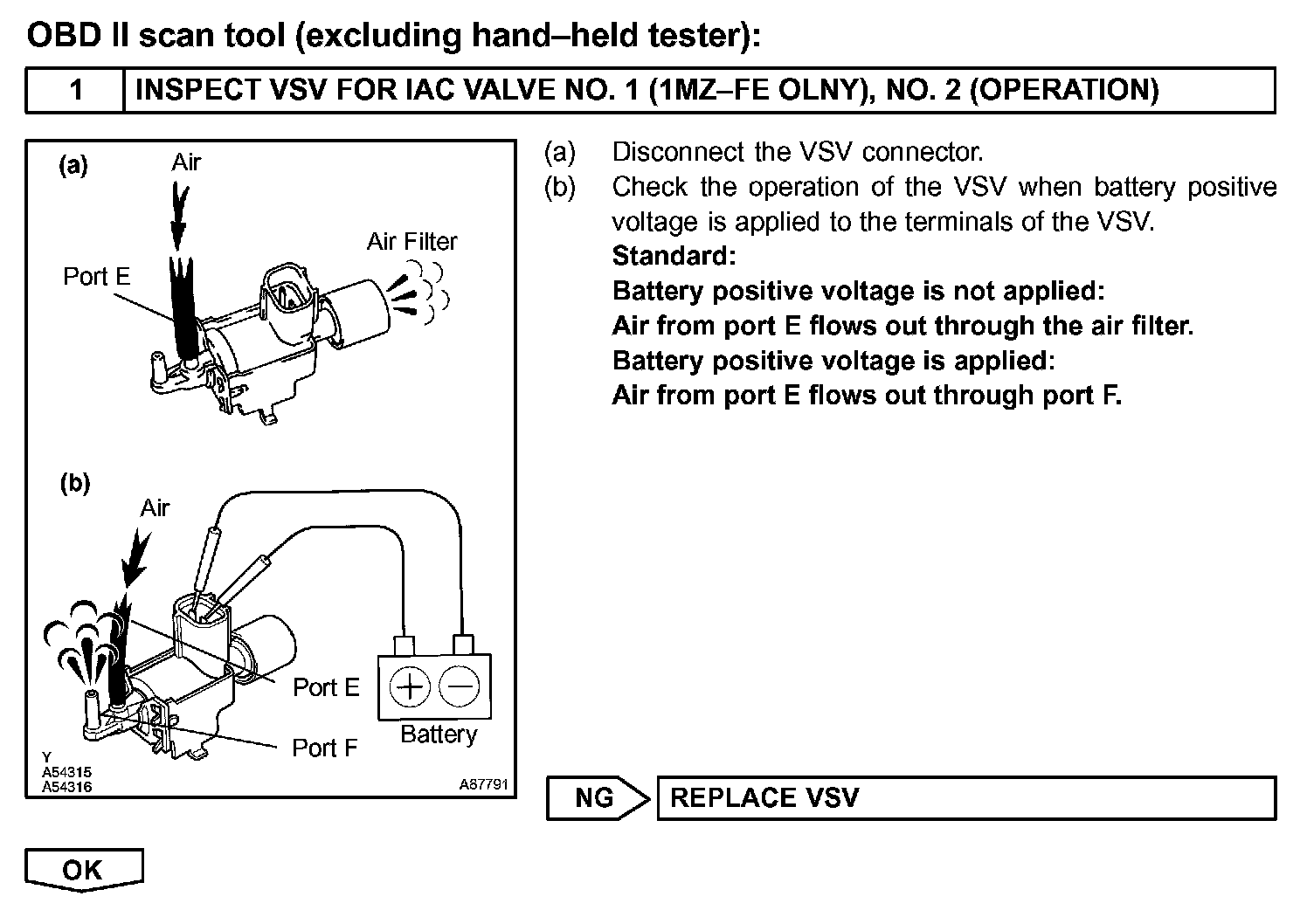

OBD II scan tool (Excluding hand-held tester)
