Replacement
Front Passenger Airbag Assy:
REPLACEMENT
HINT: Installation is in the reverse order of removal.
1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL COVER LOWER NO.2
5. REMOVE STEERING WHEEL COVER LOWER NO.2 (W/O STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)
6. REMOVE STEERING WHEEL COVER LOWER NO.3 (3 SPOKE STEERING WHEEL ASSEMBLY)
7. REMOVE CONNECTOR COVER (W/ STEERING PAD SWITCH 4 SPOKE STEERING WHEEL)
8. REMOVE HORN BUTTON ASSEMBLY
9. REMOVE STEERING WHEEL ASSEMBLY
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
10. REMOVE STEERING COLUMN COVER

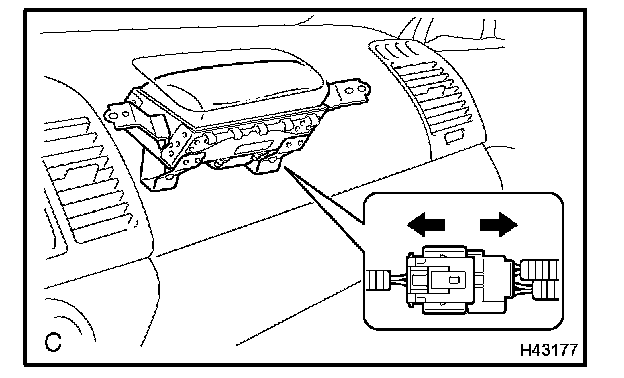

11. DISCONNECT FRONT PASSENGER AIRBAG ASSEMBLY CONNECTOR
a. Disconnect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
12. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY.
13. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.2.
14. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.1.
15. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.2.
16. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.1.
17. REMOVE DEFROSTER NOZZLE ASSEMBLY.
18. REMOVE HEATER TO REGISTER DUCT NO.1.
19. REMOVE HEATER TO REGISTER DUCT NO.3.
20. REMOVE HEATER TO REGISTER DUCT NO.2
21. DISCONNECT INSTRUMENT PANEL WIRE NO.2
a. Remove the clip.

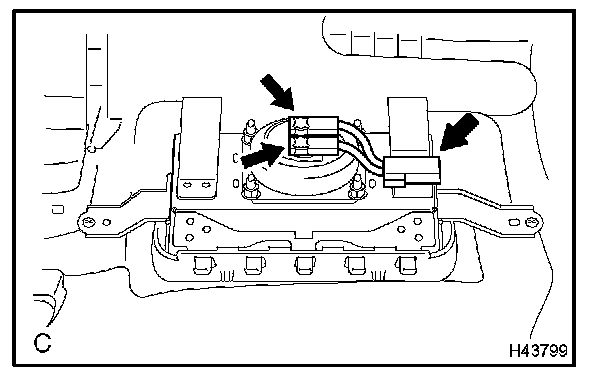

b. Disconnect the connectors from the front passenger air-bag assembly.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
22. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

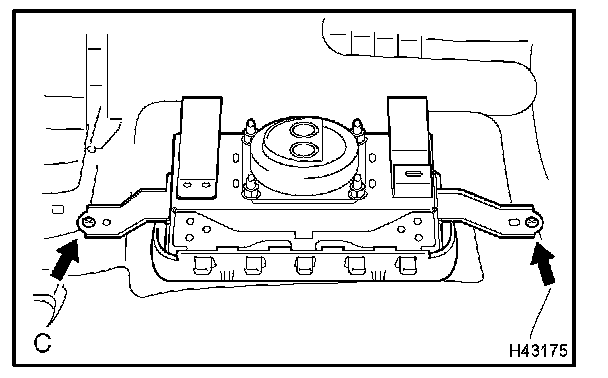

a. Remove the 2 screws.

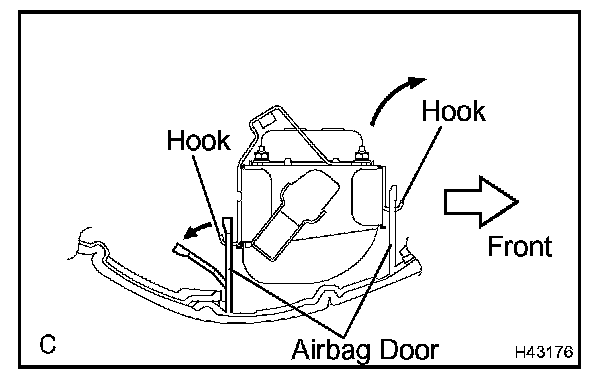

b. Release the rear side wall of the airbag door from the hook by slightly deflecting it and roll the front passenger airbag assembly forward.
c. Release the front side wall of the airbag door from the other hook and remove the front passenger airbag assembly.
23. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
24. INSPECT FRONT PASSENGER AIRBAG ASSEMBLY
25. CONNECT INSTRUMENT PANEL WIRE NO.2

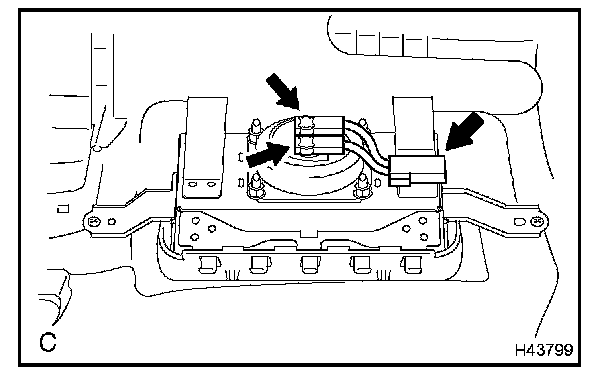

a. Connect the connectors to the front passenger airbag assembly.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
b. Install the clip.
26. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

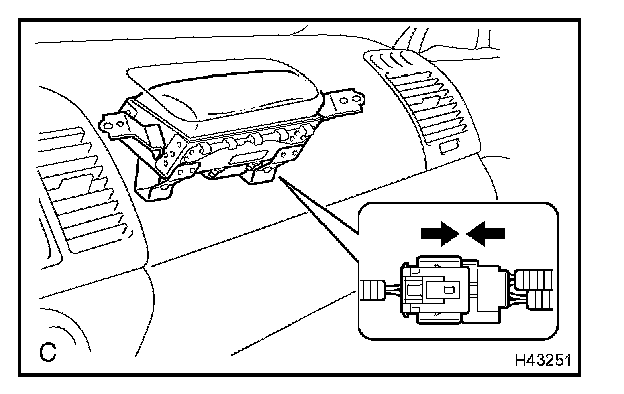

27. CONNECT FRONT PASSENGER AIRBAG ASSEMBLY CONNECTOR
a. Connect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
28. INSTALL SPIRAL CABLE SUB-ASSEMBLY.
29. ADJUST SPIRAL CABLE SUB-ASSEMBLY.
30. INSTALL STEERING WHEEL ASSEMBLY.
31. INSPECT STEERING WHEEL CENTER POINT.
32. INSTALL HORN BUTTON ASSEMBLY.
33. INSPECT HORN BUTTON ASSEMBLY.
34. INSPECT SRS WARNING LIGHT.
