Automatic Transmission System

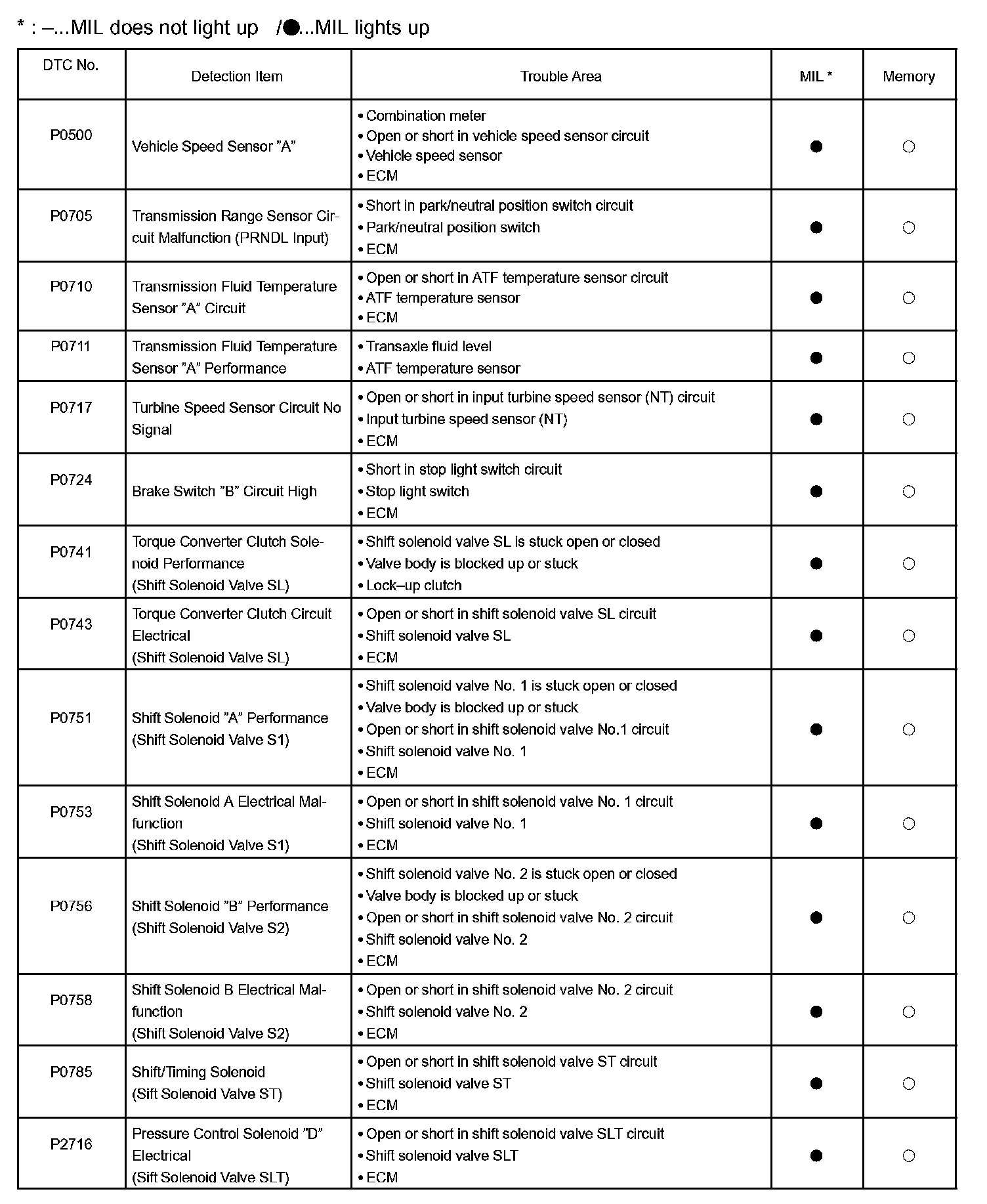

DIAGNOSTIC TROUBLE CODE CHART

P0500 - P2716:

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table proceed to the corresponding troubleshooting.
