DTC 51
>>
ABS (Antilock Brake System)
ABS (Antilock Brake System)
DTC 51 ABS PUMP MOTOR LOCK

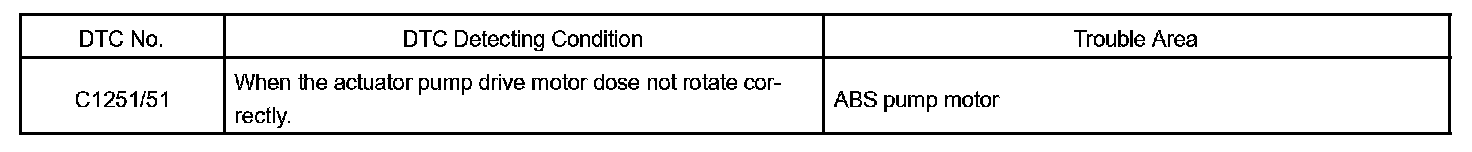

DTC Detecting Condition:

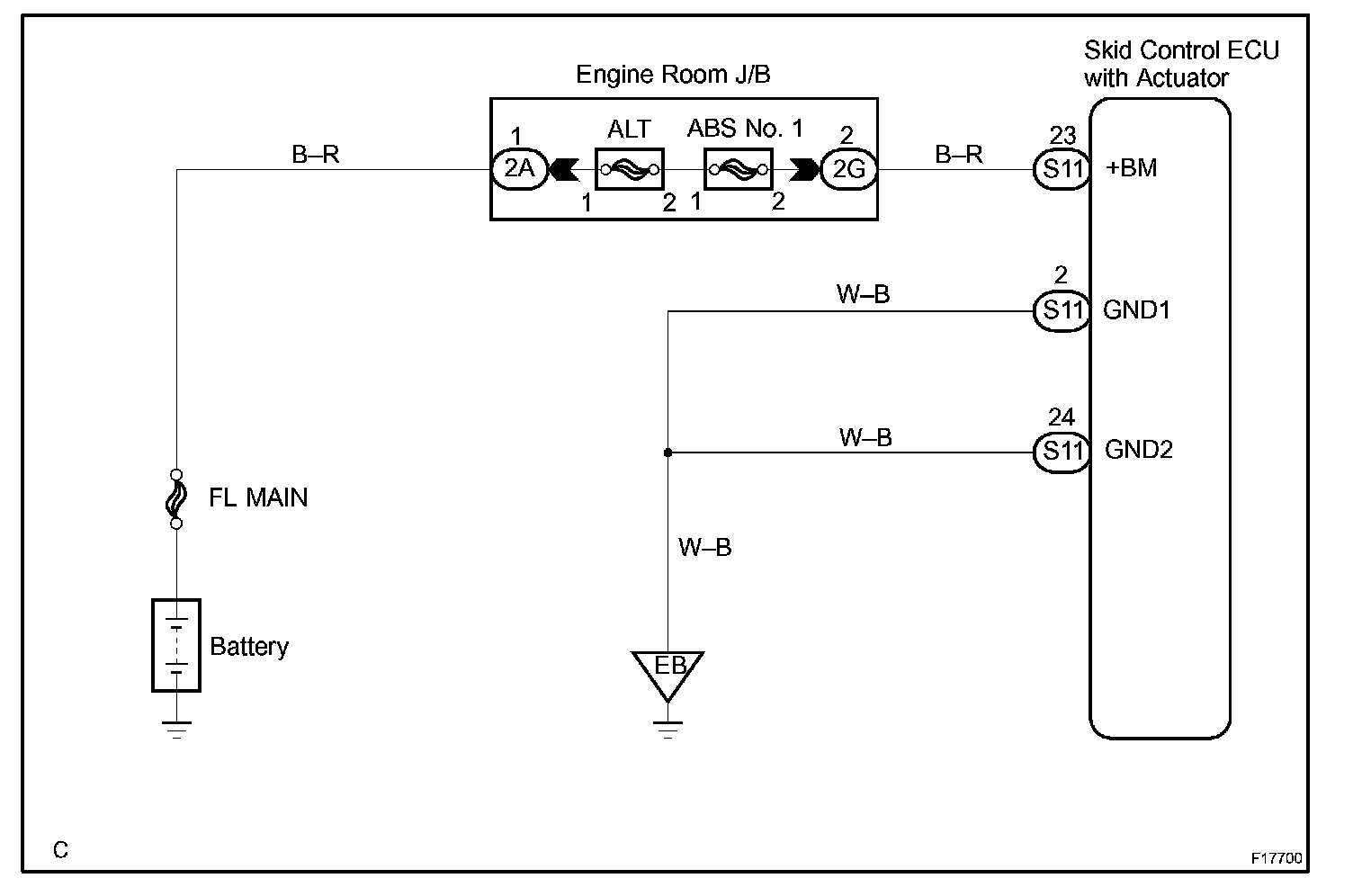

Wiring Diagram:

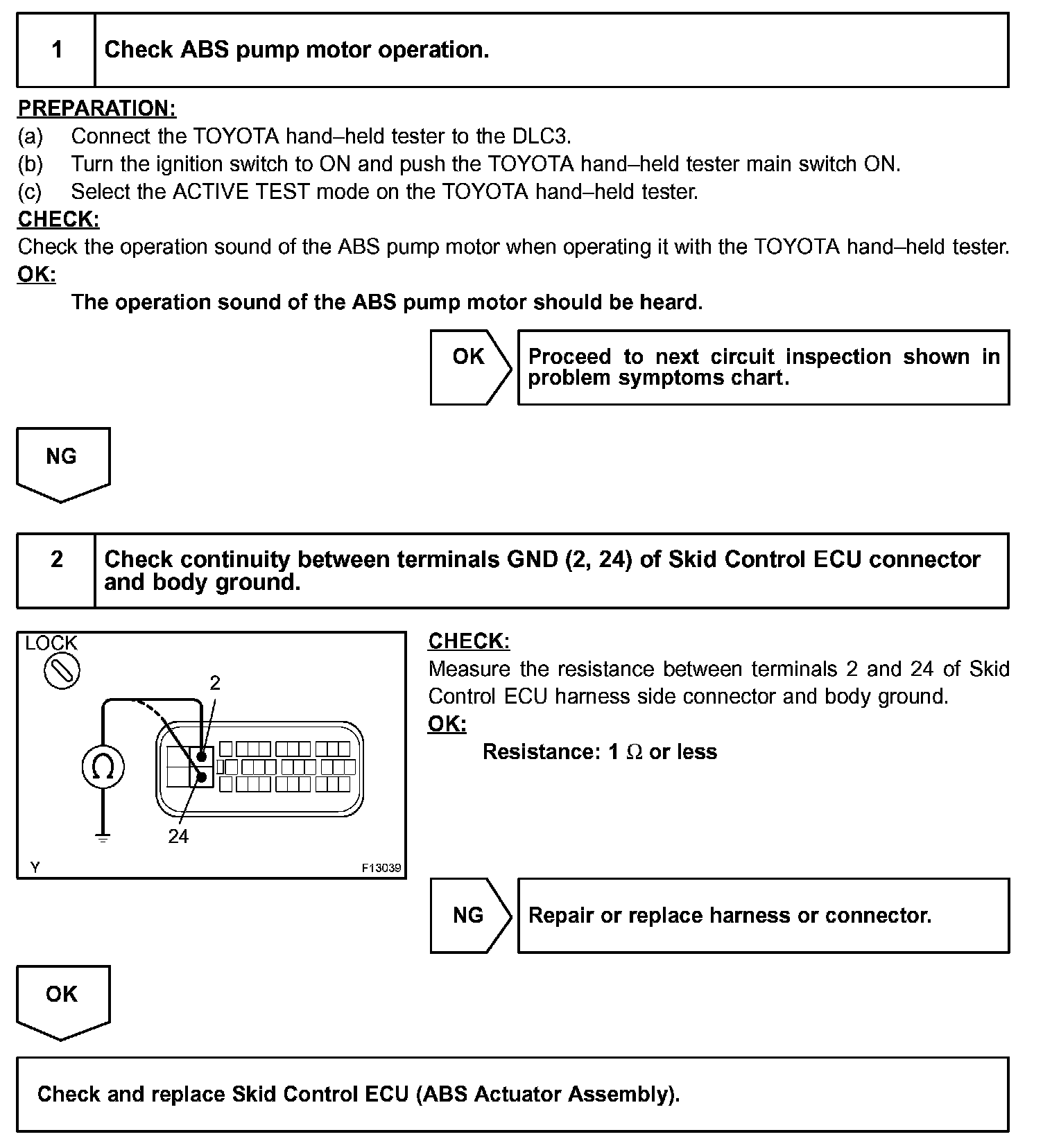

Step 1 - 2:
INSPECTION PROCEDURE
