AIRBAG SENSOR ASSEMBLY COMMUNICATION CIRCUIT

CIRCUIT DESCRIPTION
Signals received at the body ECU, such as the passenger seat occupant detection sensor signal, are transmitted to the airbag sensor assembly.

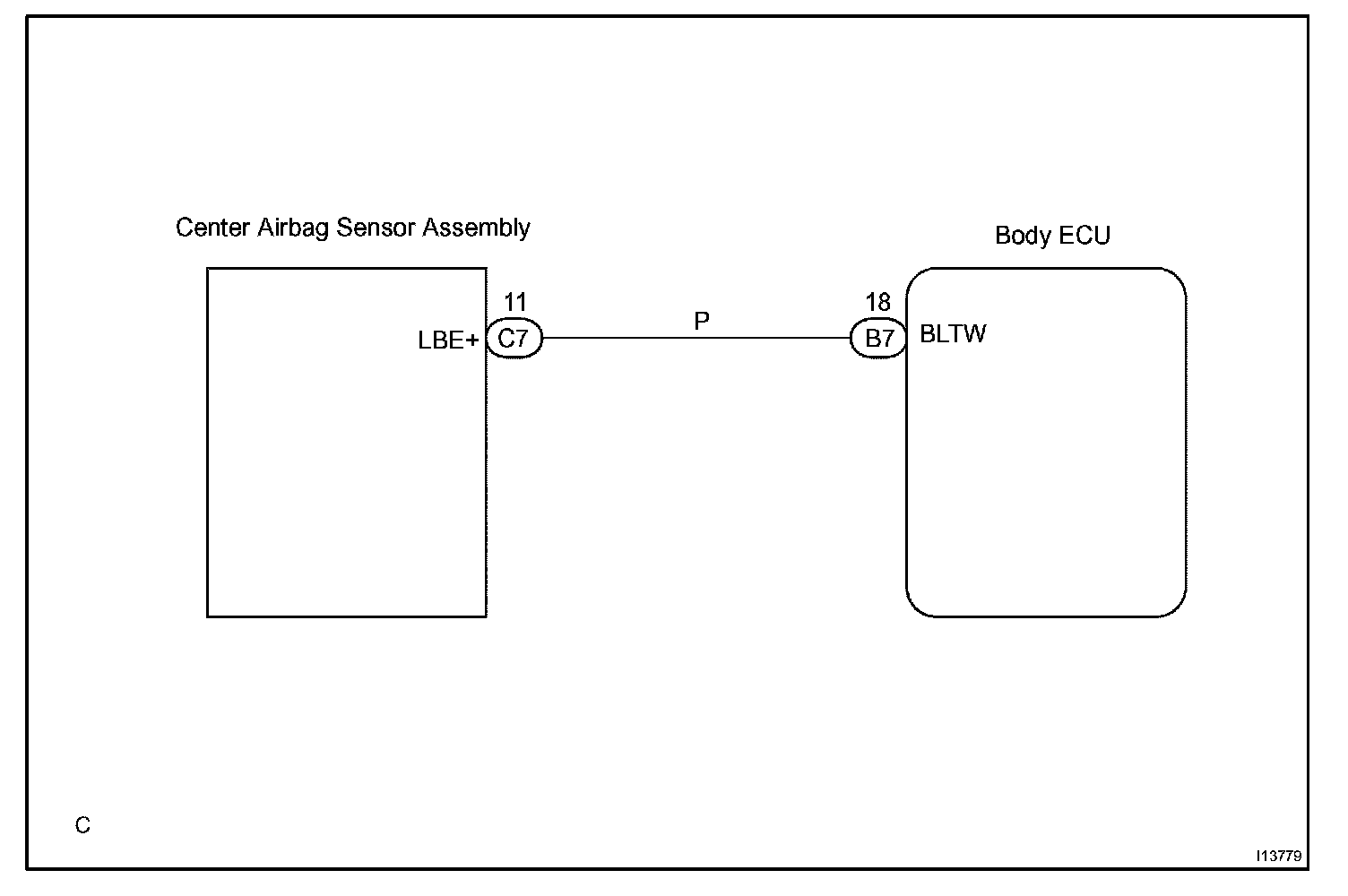

Wiring Diagram:

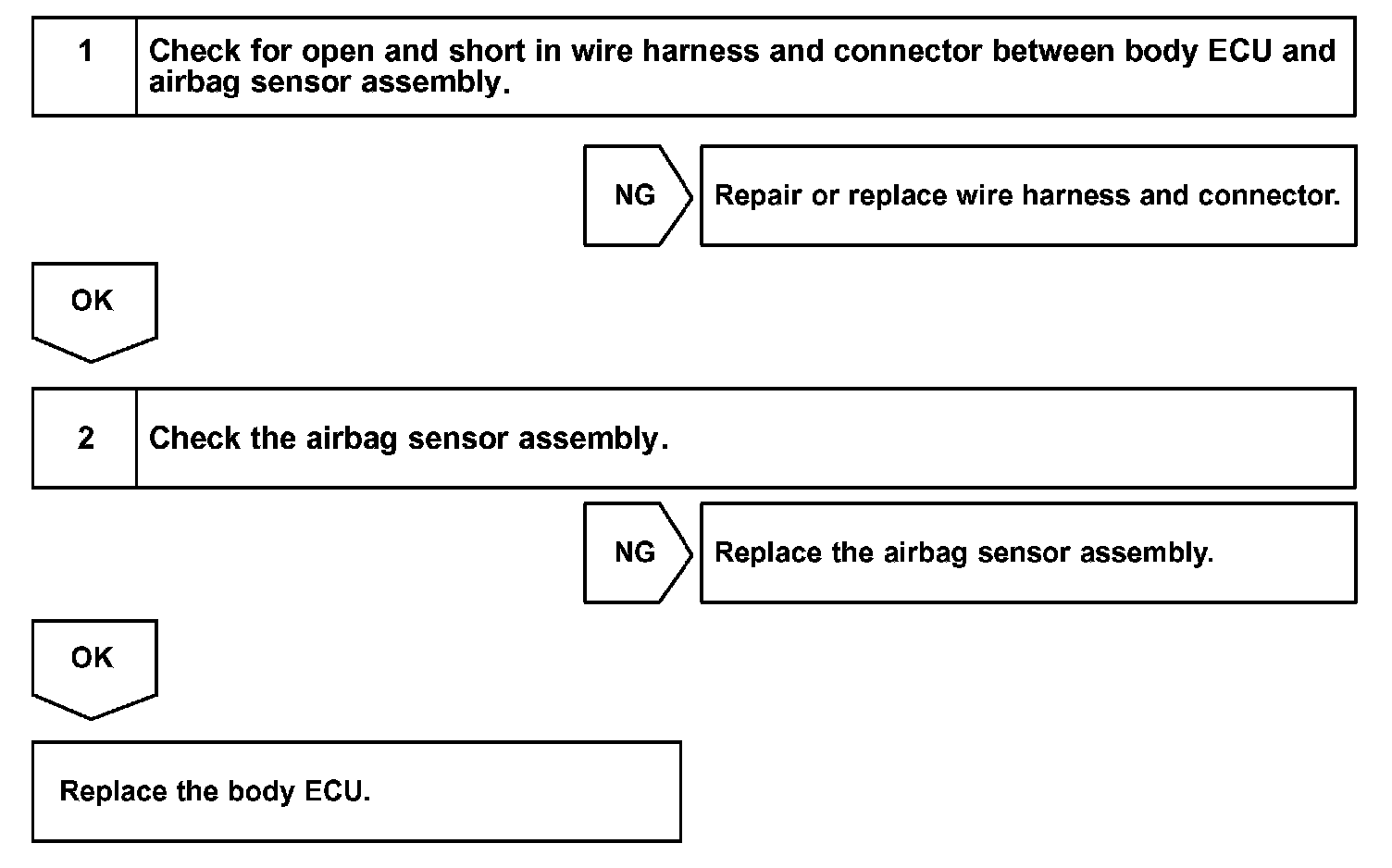

Step 1 - 2:

INSPECTION PROCEDURE
