Fuel Sender Gauge Circuit

FUEL SENDER GAUGE CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects sensor signals from the fuel sender gauge.

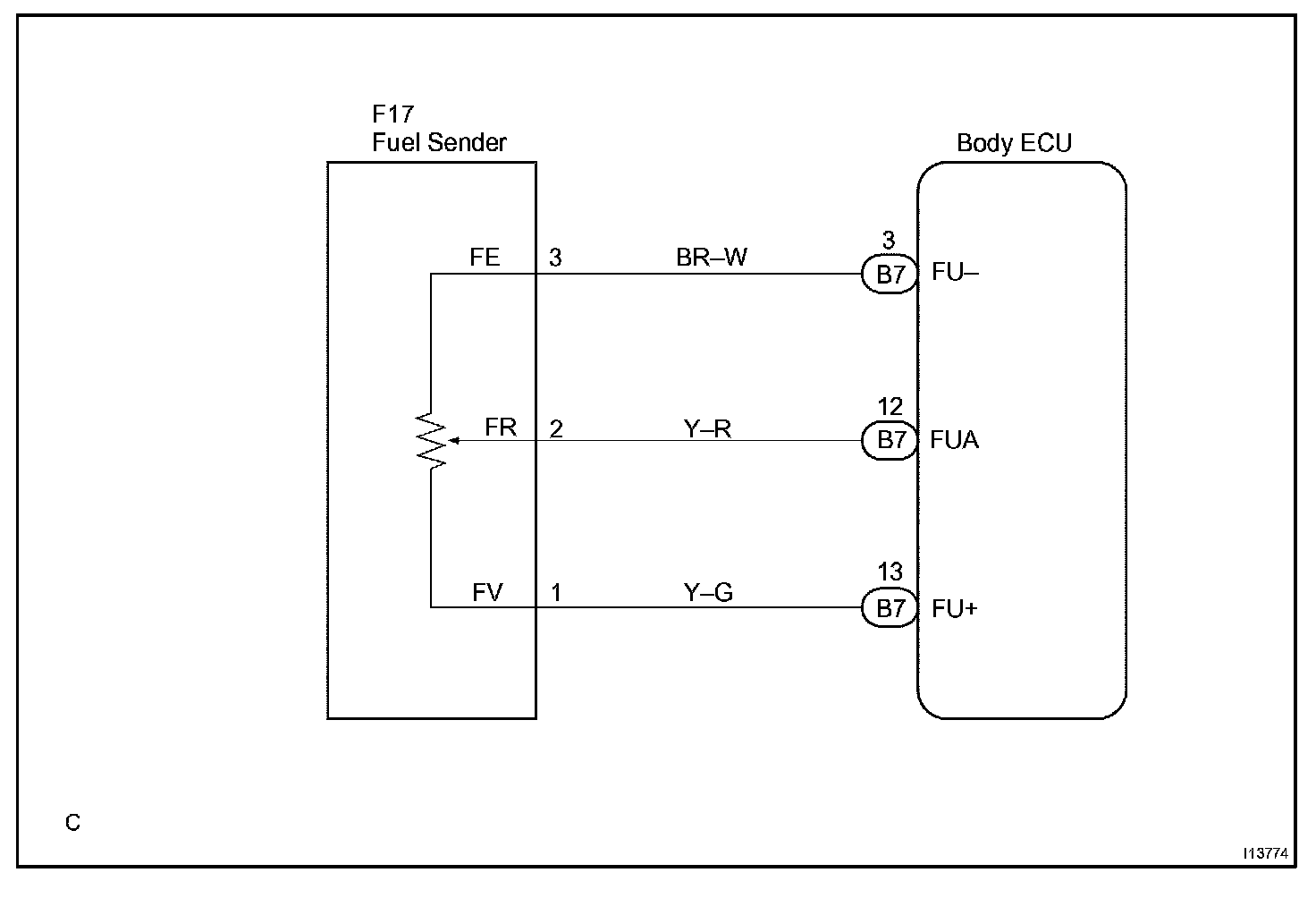

Wiring Diagram:

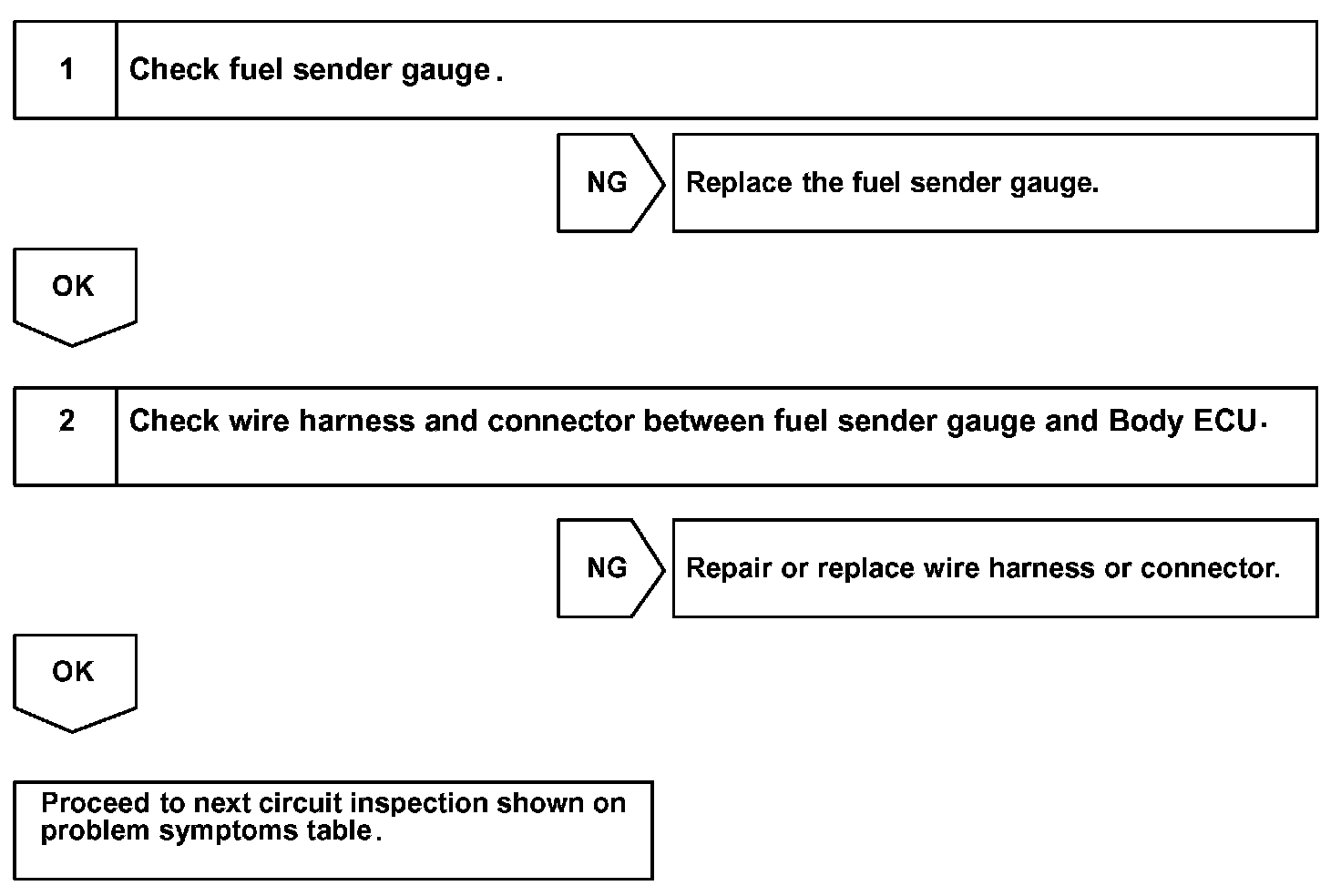

Step 1 - 2:




INSPECTION PROCEDURE
