Headlight Relay Circuit

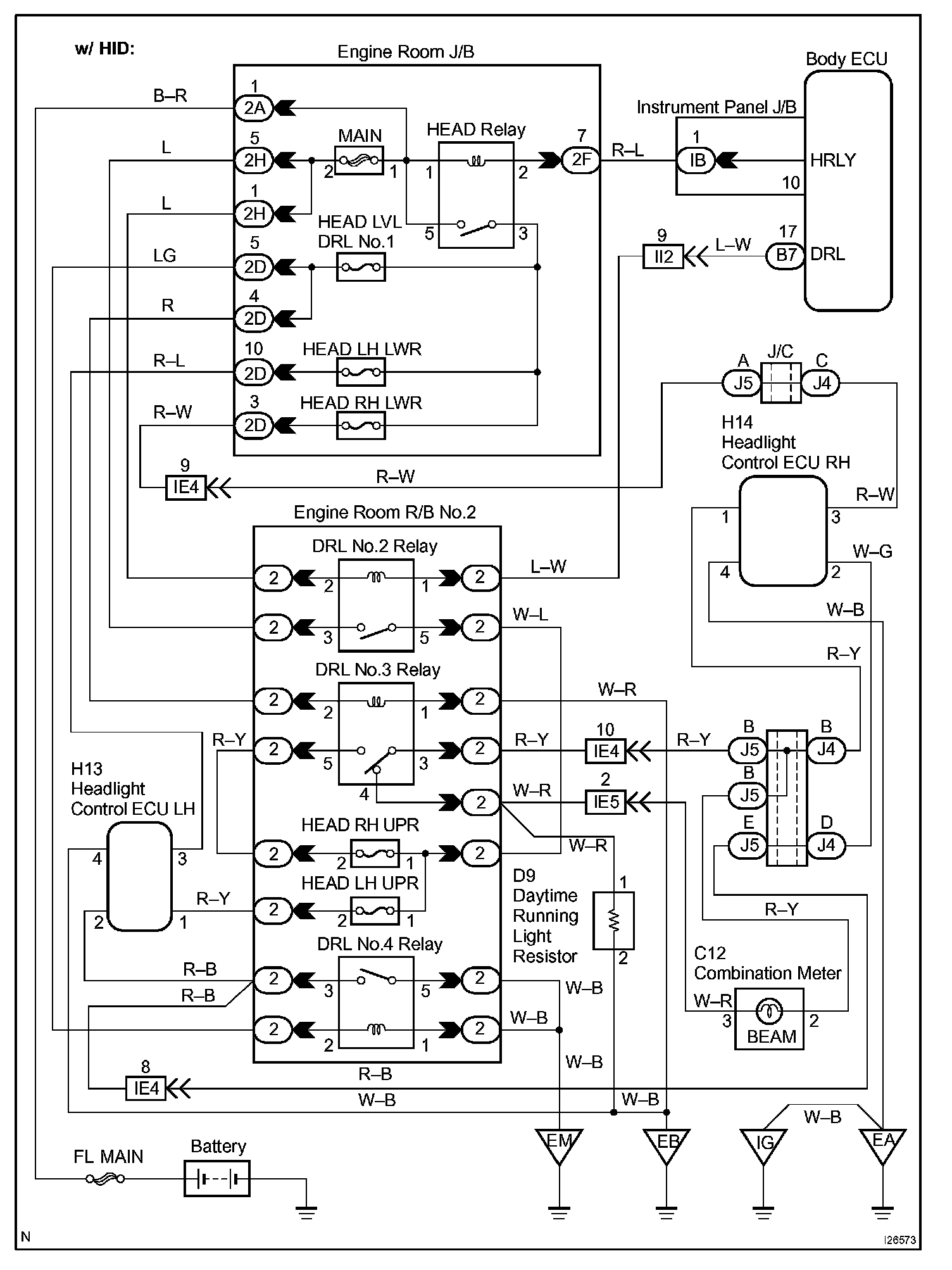

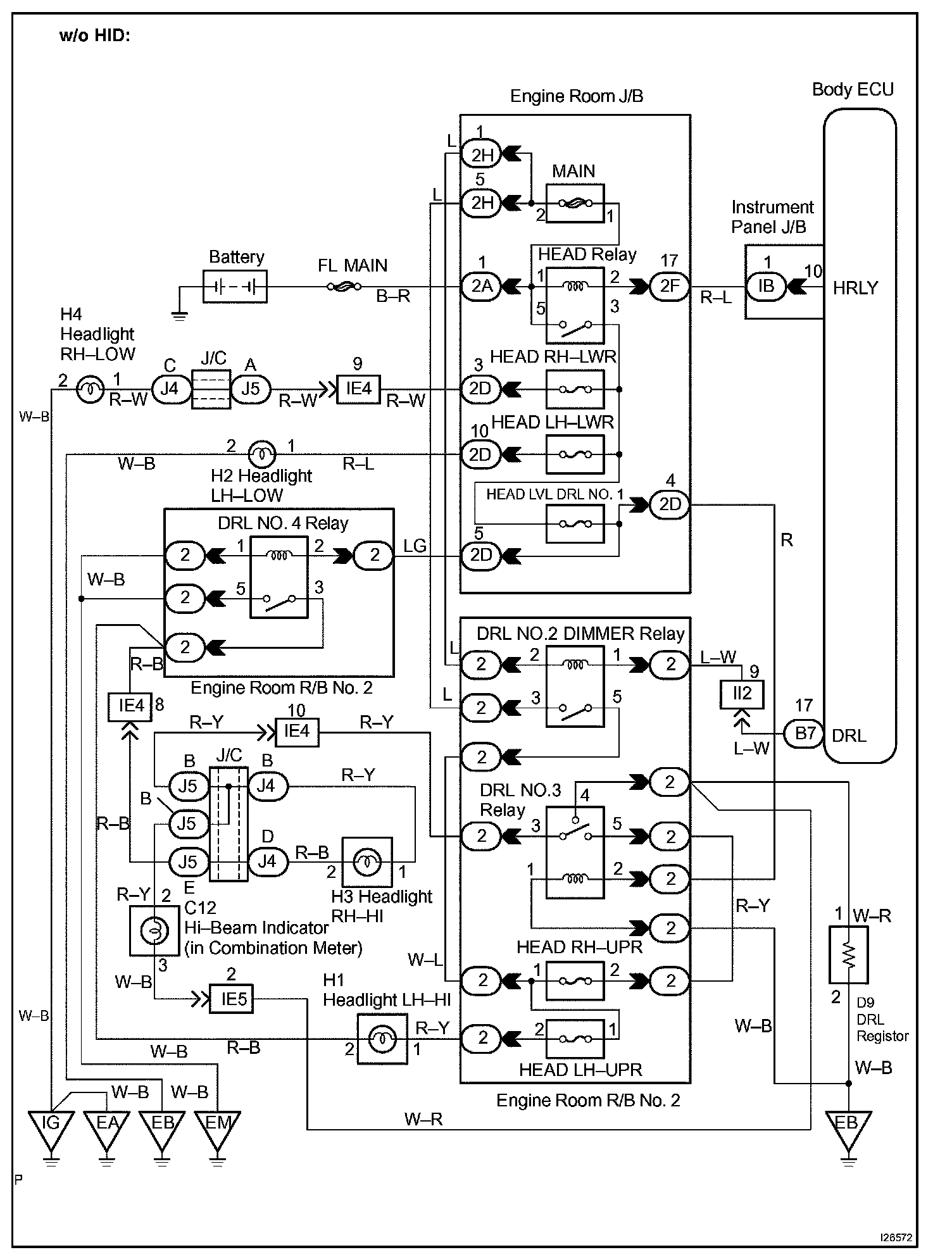

HEADLIGHT RELAY CIRCUIT

CIRCUIT DESCRIPTION
Headlight relay will be "ON" by operating the headlight switch. The transistor which activates relay has two sorts: one is activated directly by the headlight switch for fail-safe and the by CPU. The one activated by CPU has two systems and prevents the headlight to be turned of trouble with one system in the automatic operation circuit.
