Light Sensor Circuit

LIGHT SENSOR CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects signals output from the light control sensor.

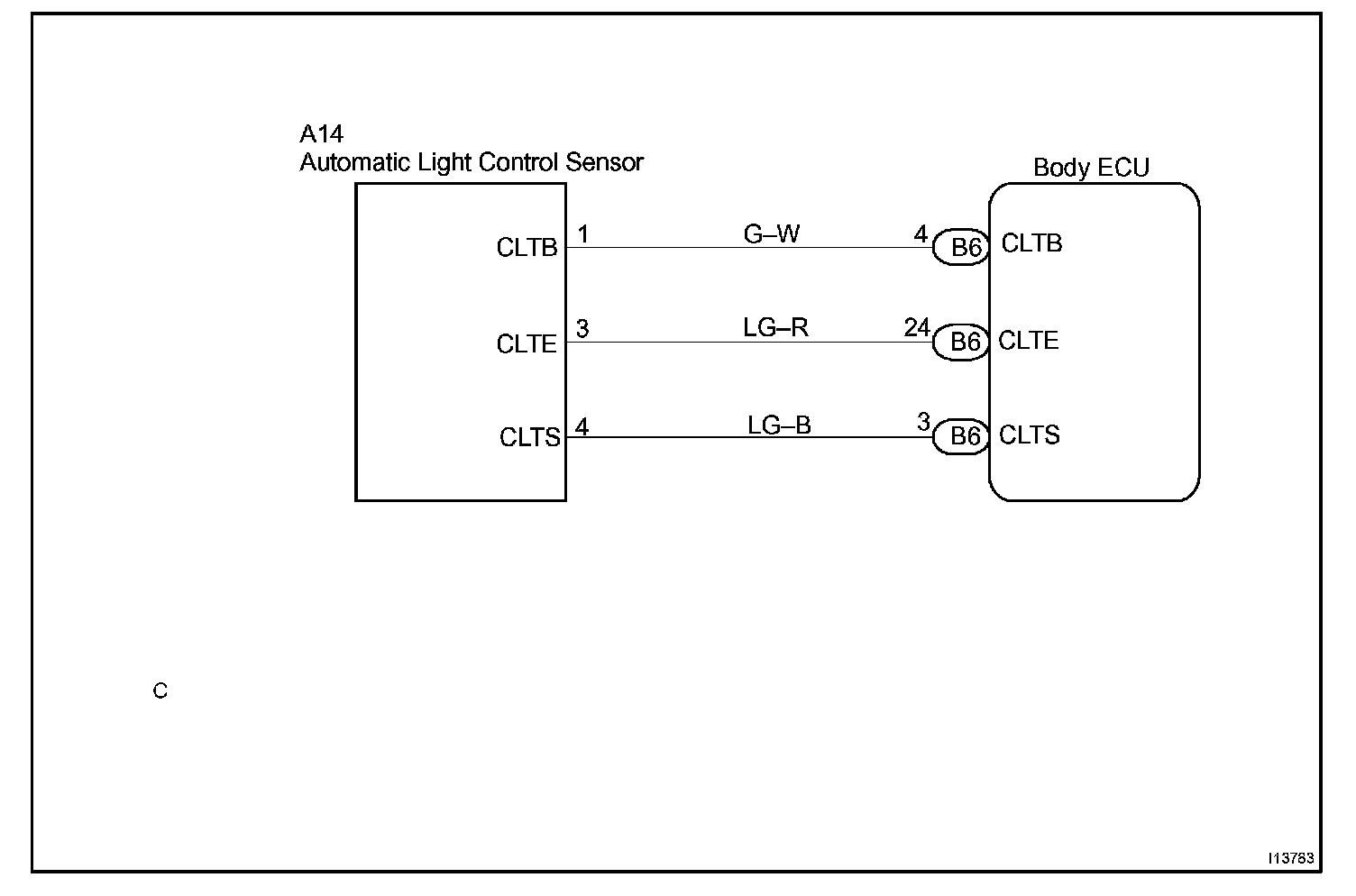

Wiring Diagram:

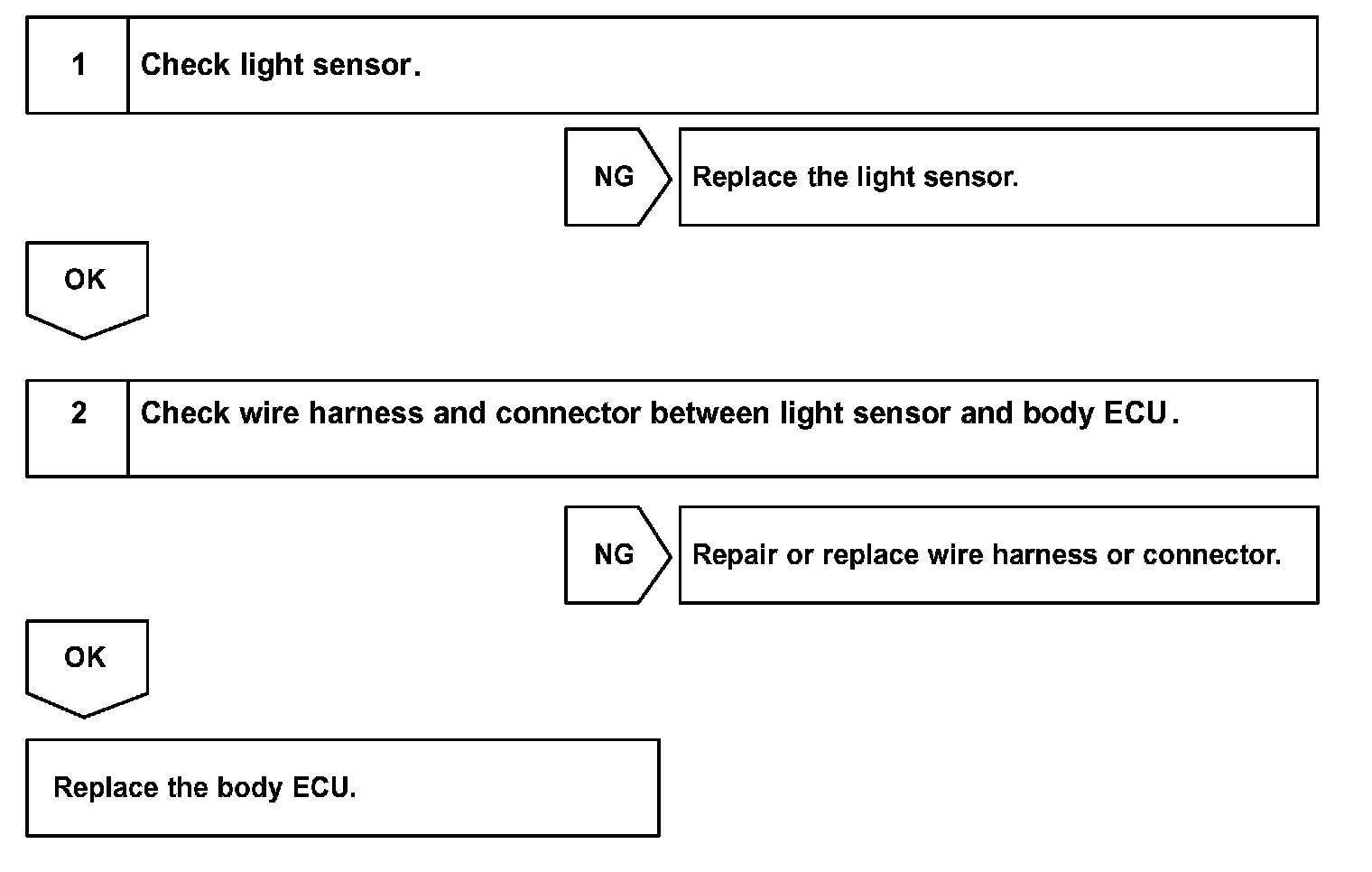

Step 1- 2:




INSPECTION PROCEDURE
