Luggage Courtesy Switch Circuit

LUGGAGE COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The luggage courtesy switch comes on when luggage compartment door is opened and goes off when luggage compartment door is closed.

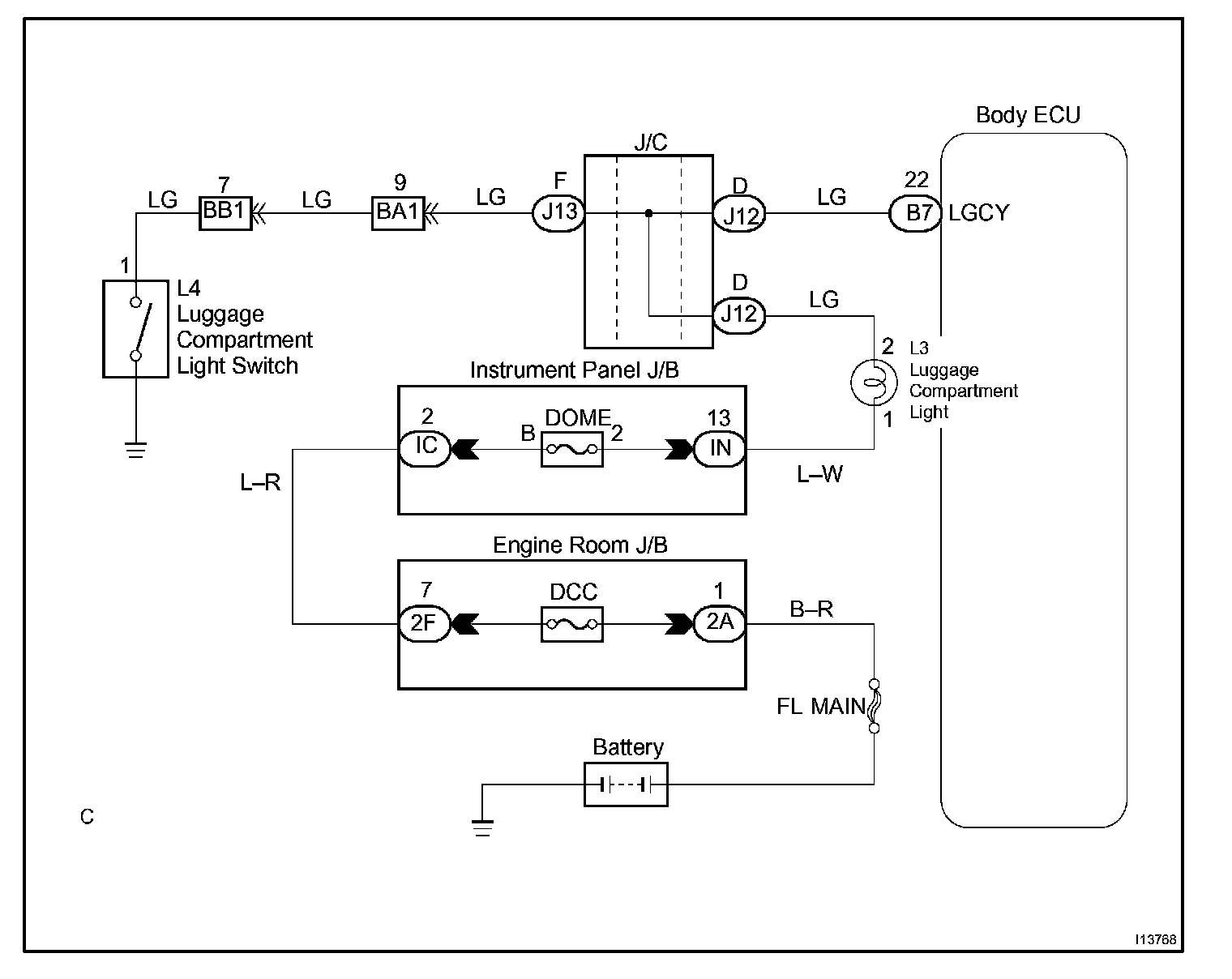

Wiring Diagram:

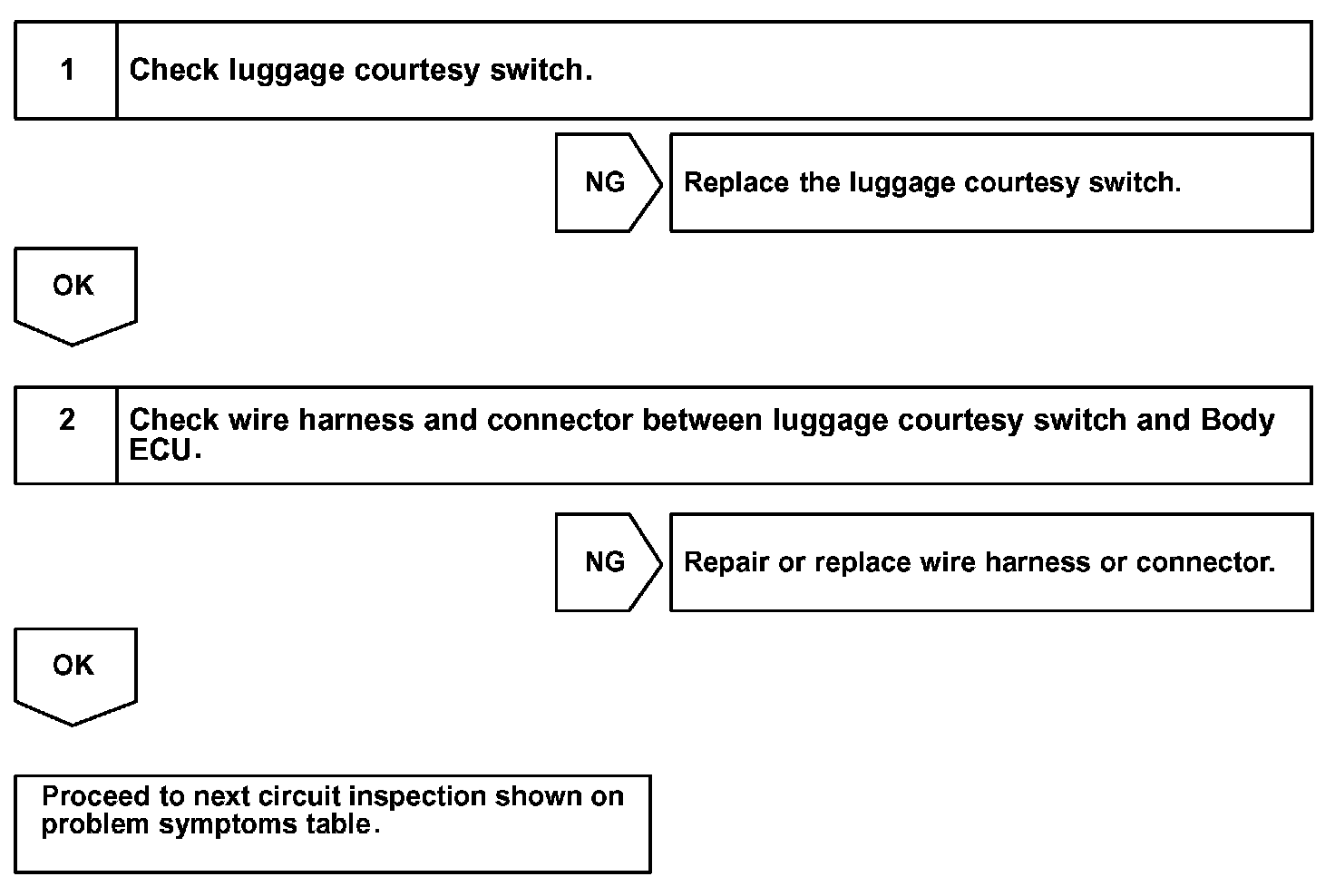

Step 1 - 2:

INSPECTION PROCEDURE
