Power Window Master Switch Circuit

POWER WINDOW MASTER SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects the state of the power window master switch.

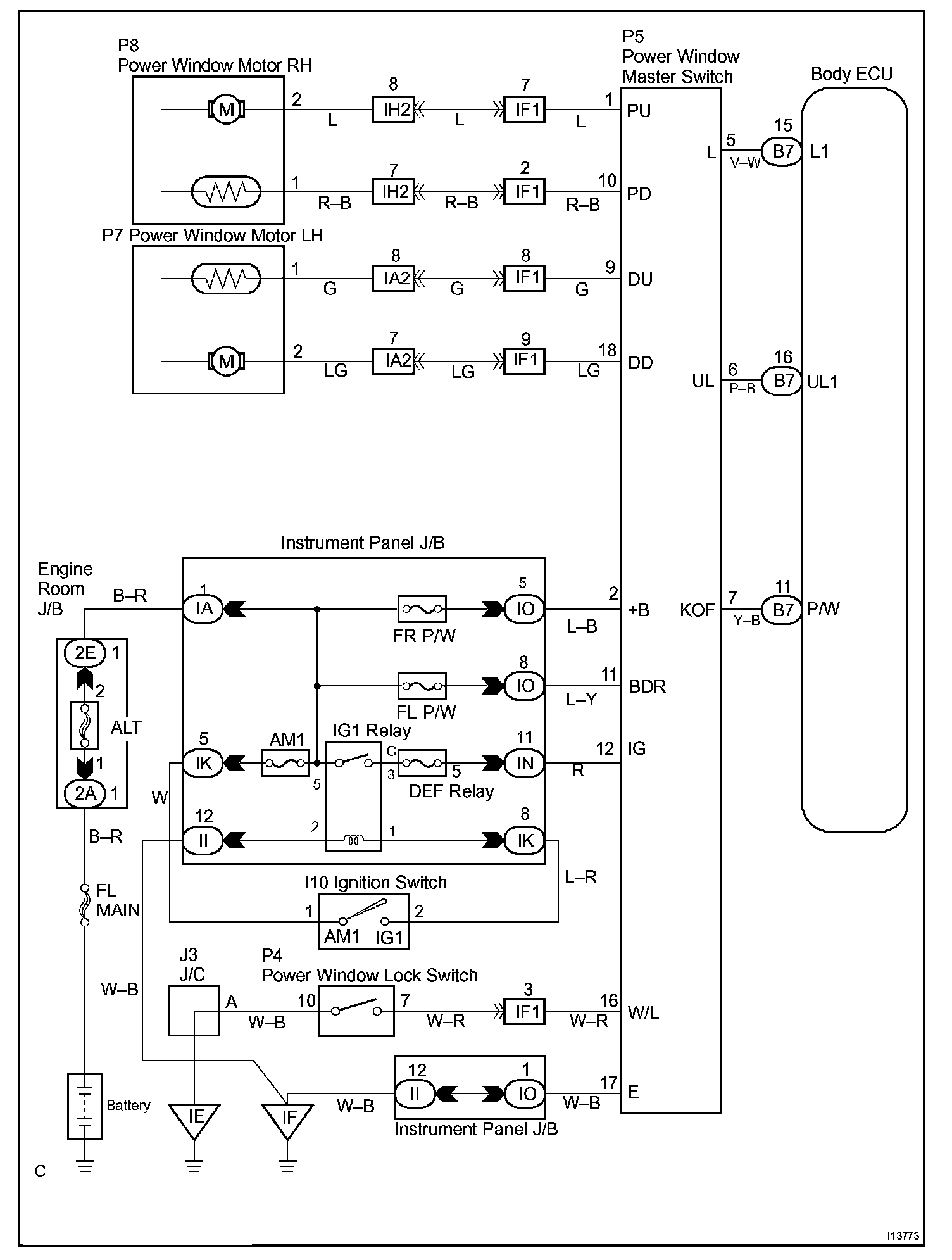

Wiring Diagram:






Step 1 - 2:

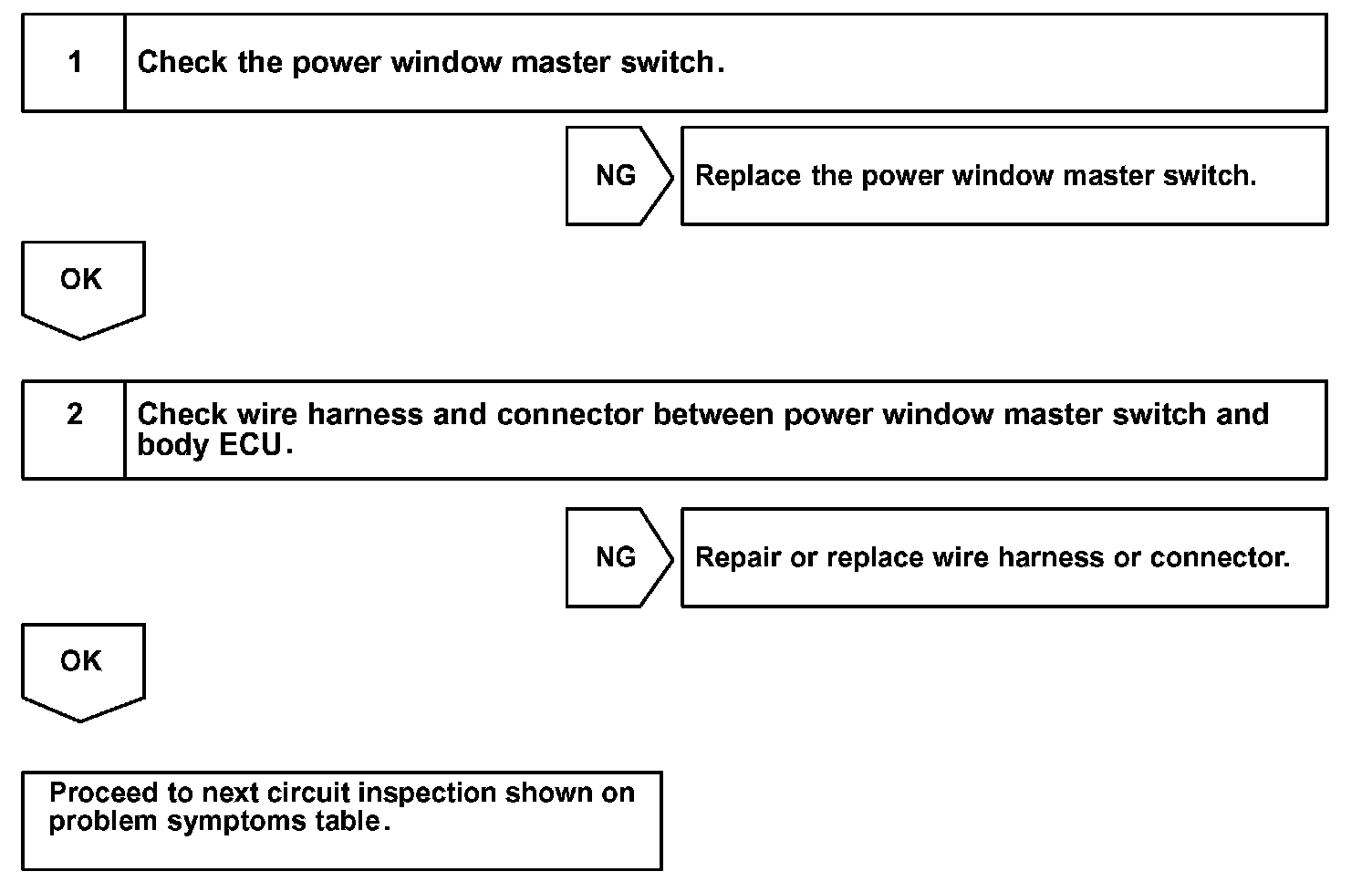

INSPECTION PROCEDURE
