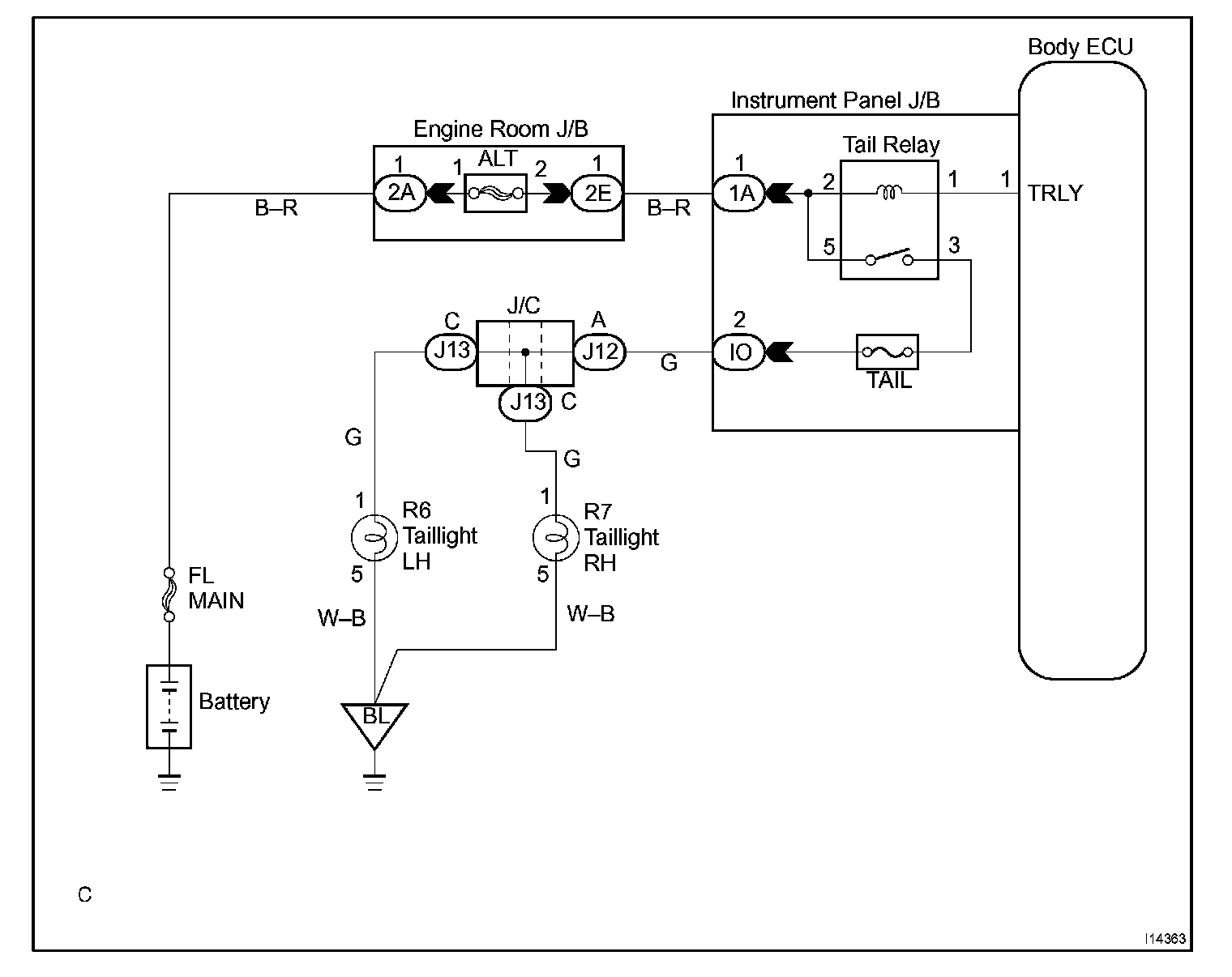

Taillight Relay Circuit

TAILLIGHT RELAY CIRCUIT

CIRCUIT DESCRIPTION
Taillight relay will be ON by operating the taillight switch. The transistor which activates the taillight relay has two sorts: one is activated by the taillight switch for fail safe and the other is activated by CPU.
