Diagnosis Circuit

CIRCUIT DESCRIPTION
This circuit sends a signal to ECU which outputs DTC.

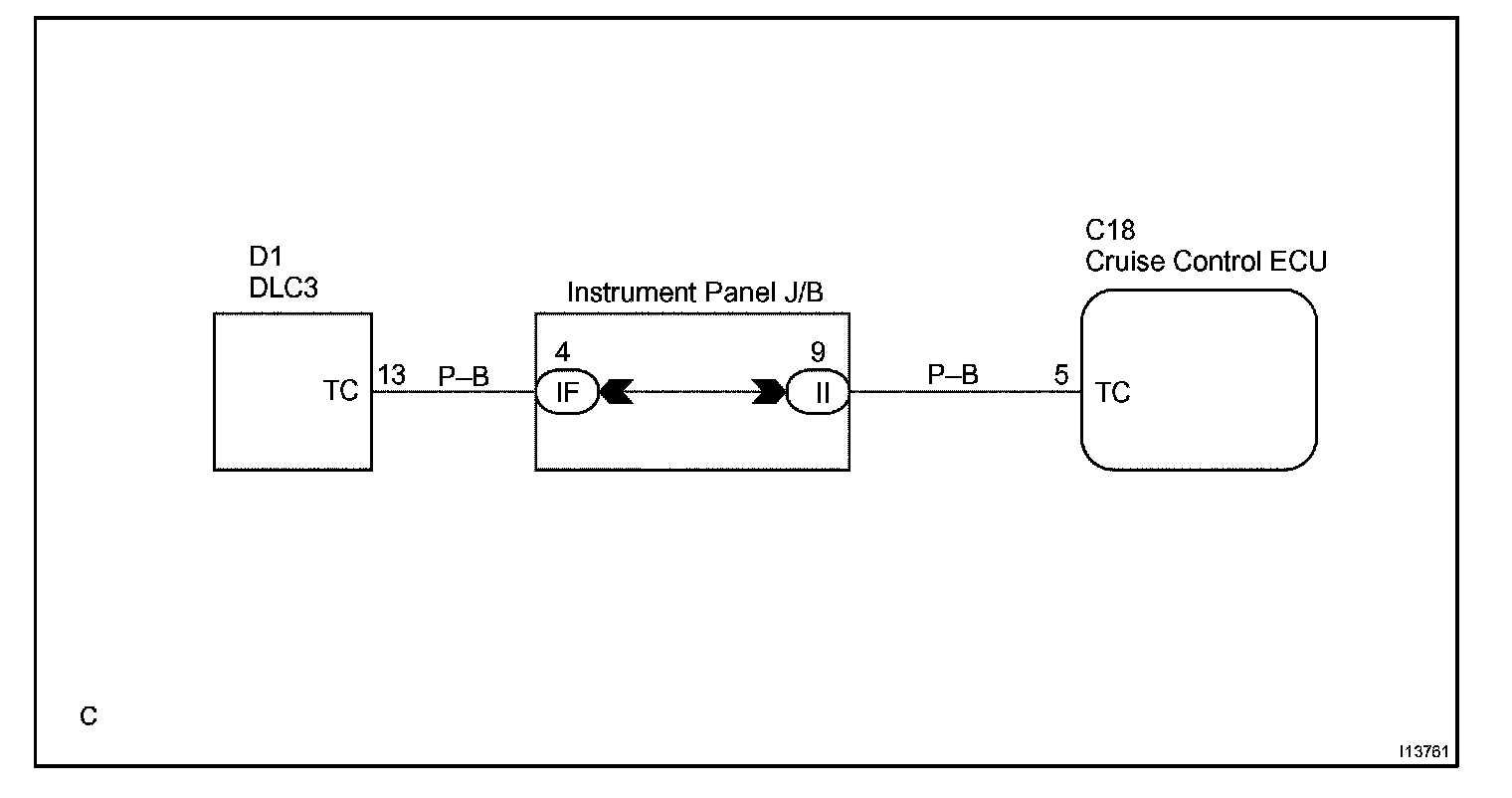

Wiring Diagram:

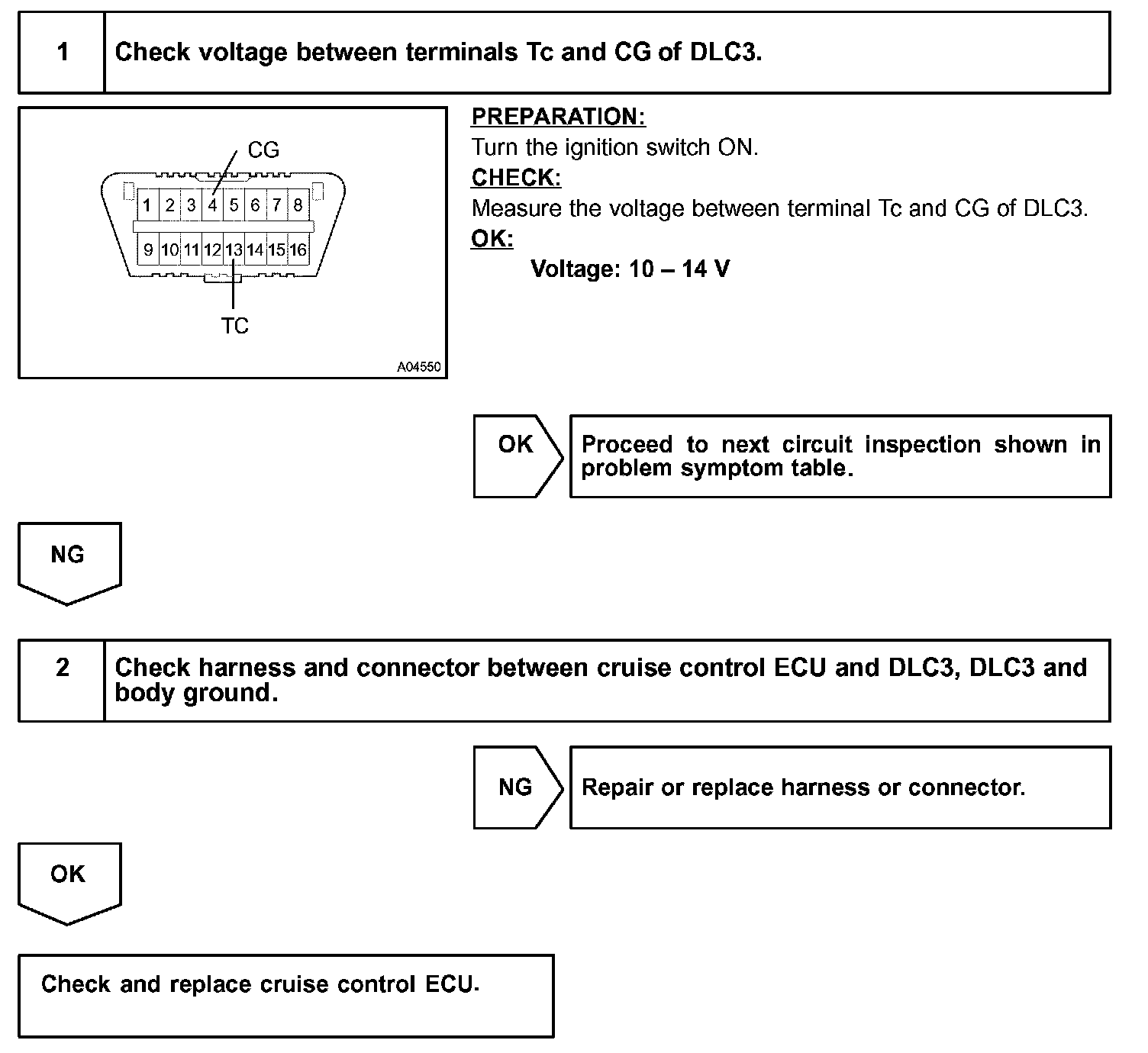

Step 1 - 2:




INSPECTION PROCEDURE
