ECU Power Source Circuit
CIRCUIT DESCRIPTIONThe ECU power source supplies a power to the actuator and the sensors, etc. when terminal GND and the cruise control ECU case are grounded.

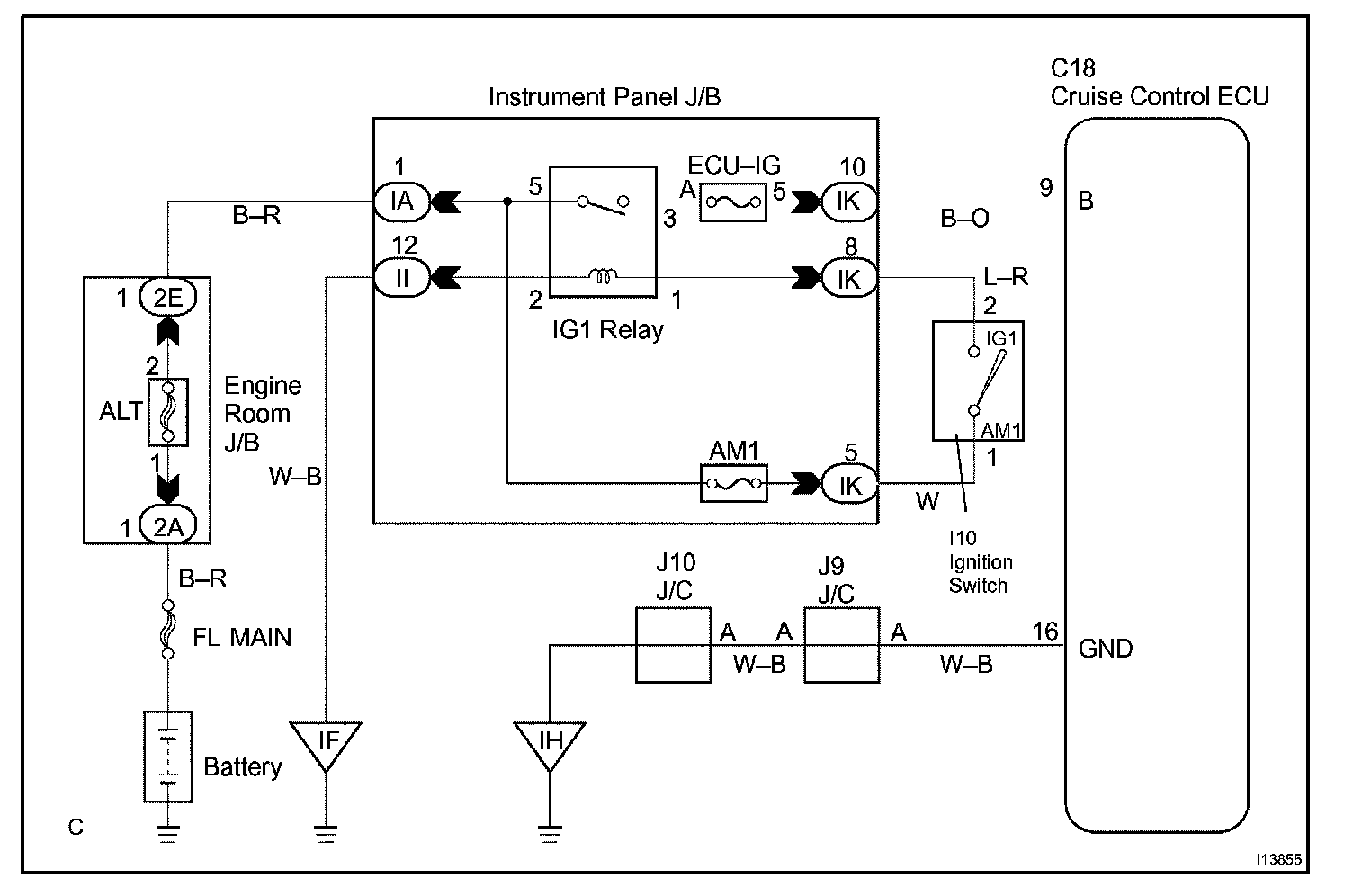

Wiring Diagram:

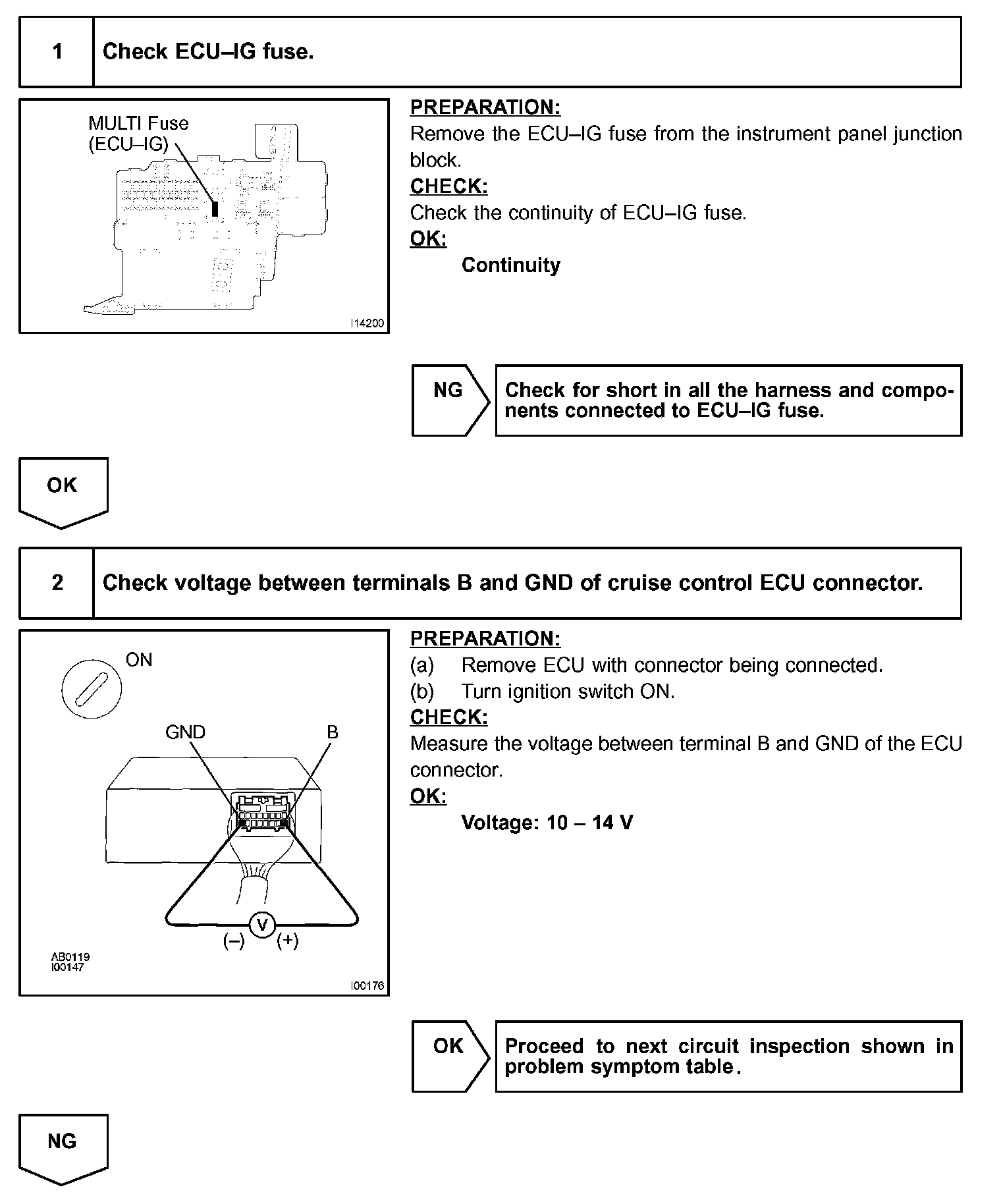

Step 1 - 2:

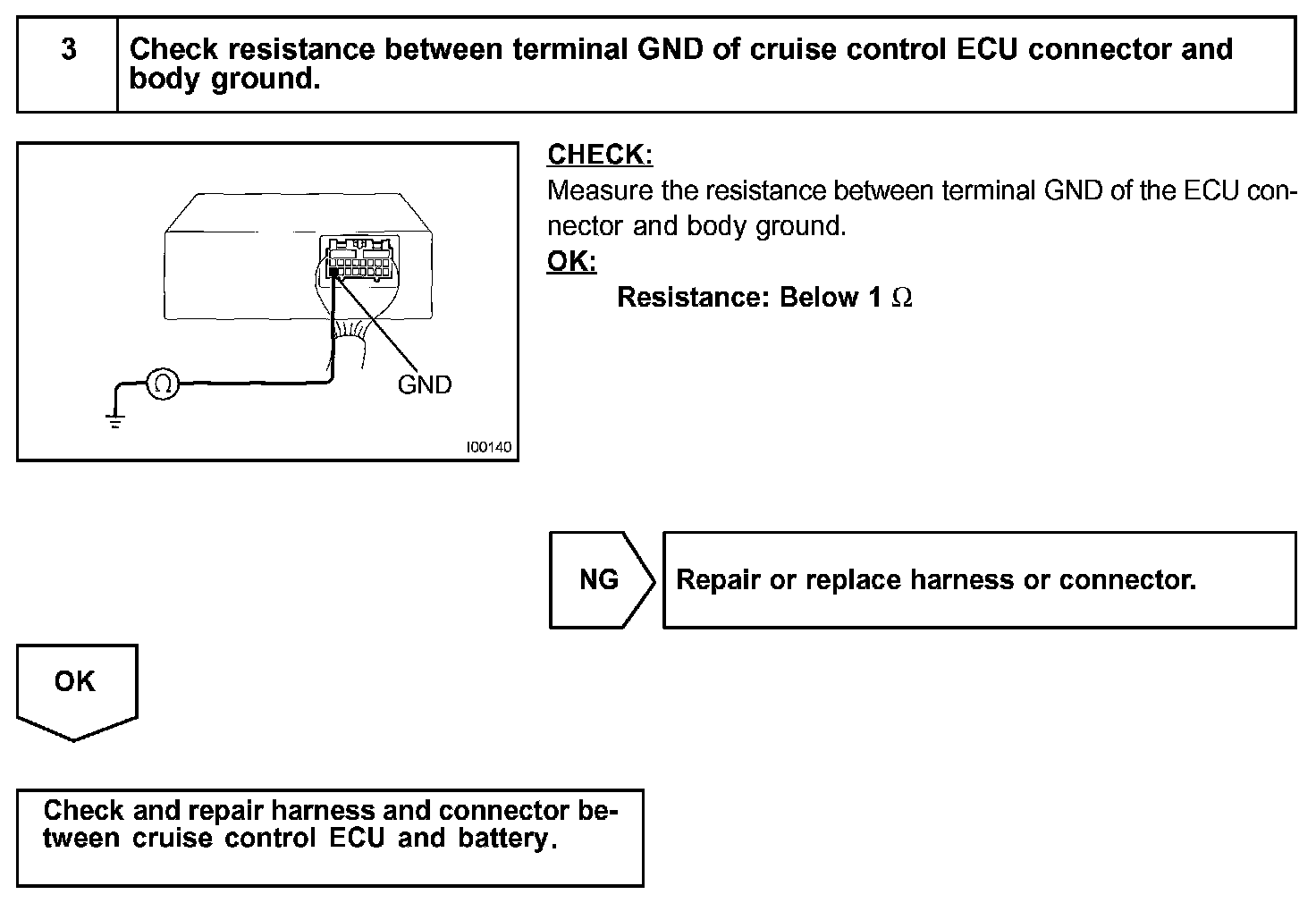

Step 3:
INSPECTION PROCEDURE
The ECU power source supplies a power to the actuator and the sensors, etc. when terminal GND and the cruise control ECU case are grounded.
INSPECTION PROCEDURE
