Manual Transmission/Transaxle
>>
System Diagram
>>
Overhaul (Transmission)
>>
Disassembly and Reassembly
Disassembly and Reassembly
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:

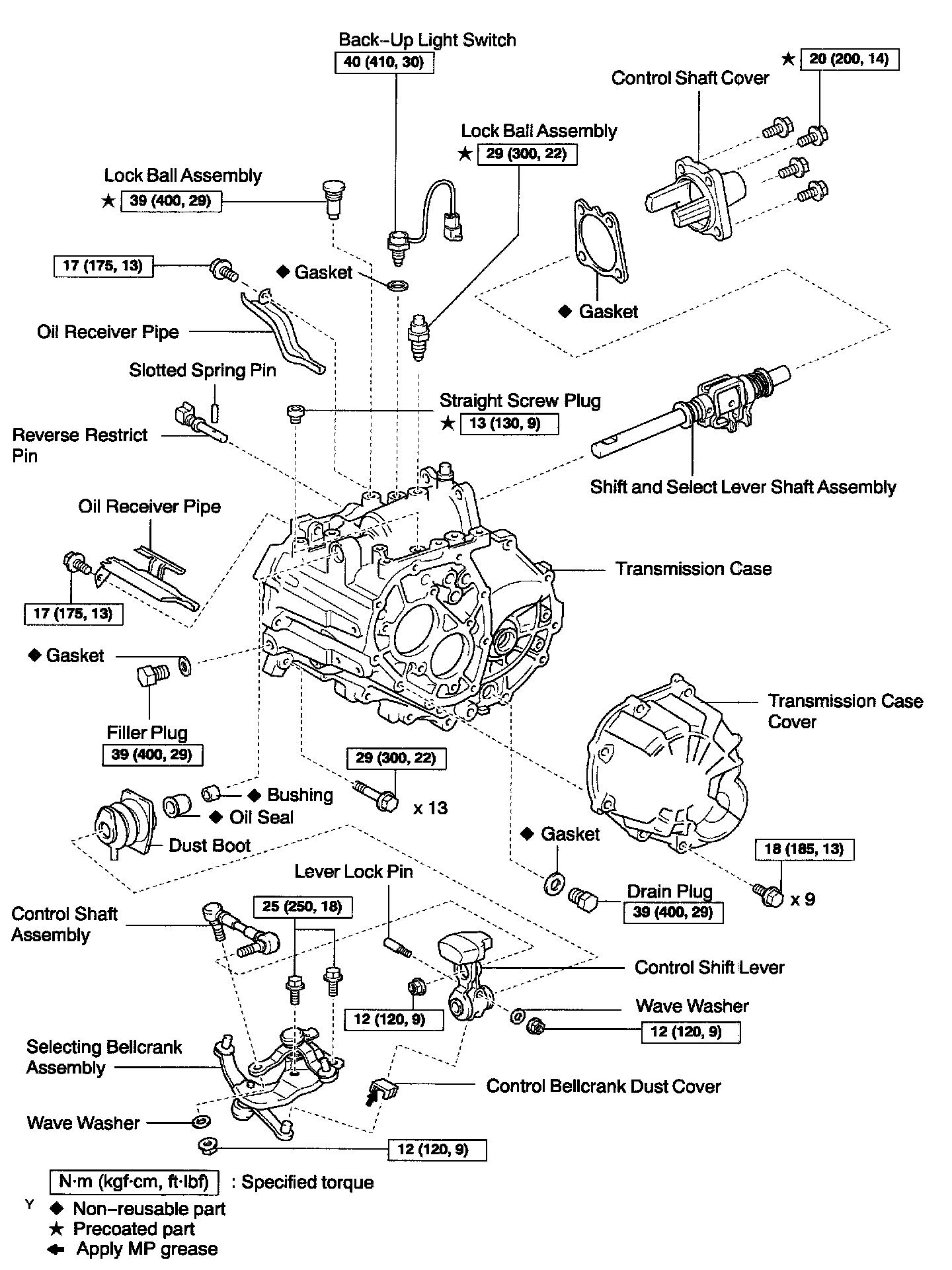

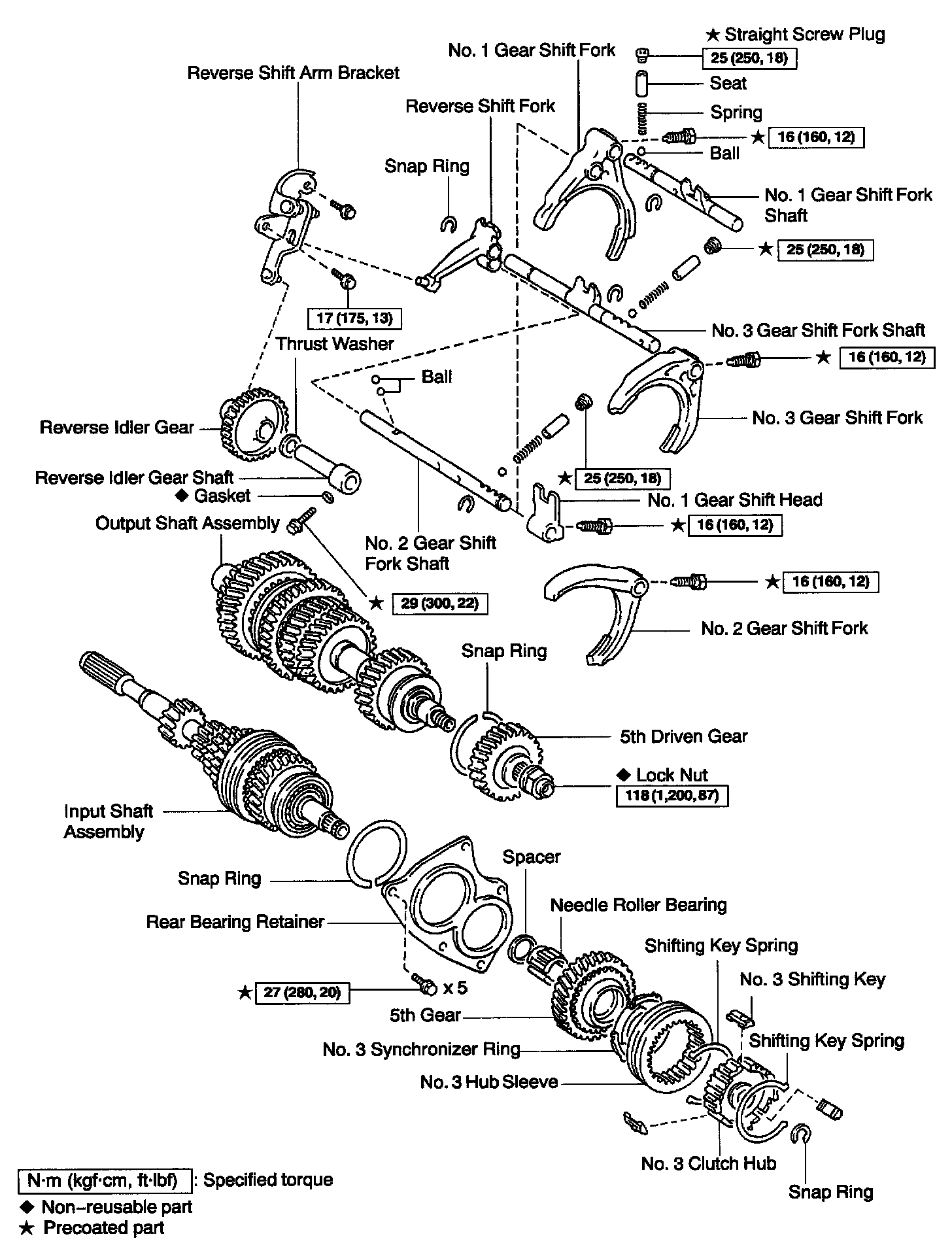

TRANSAXLE OVERHAUL W/ RELATED COMPONENTS
