Vacuum Brake Booster

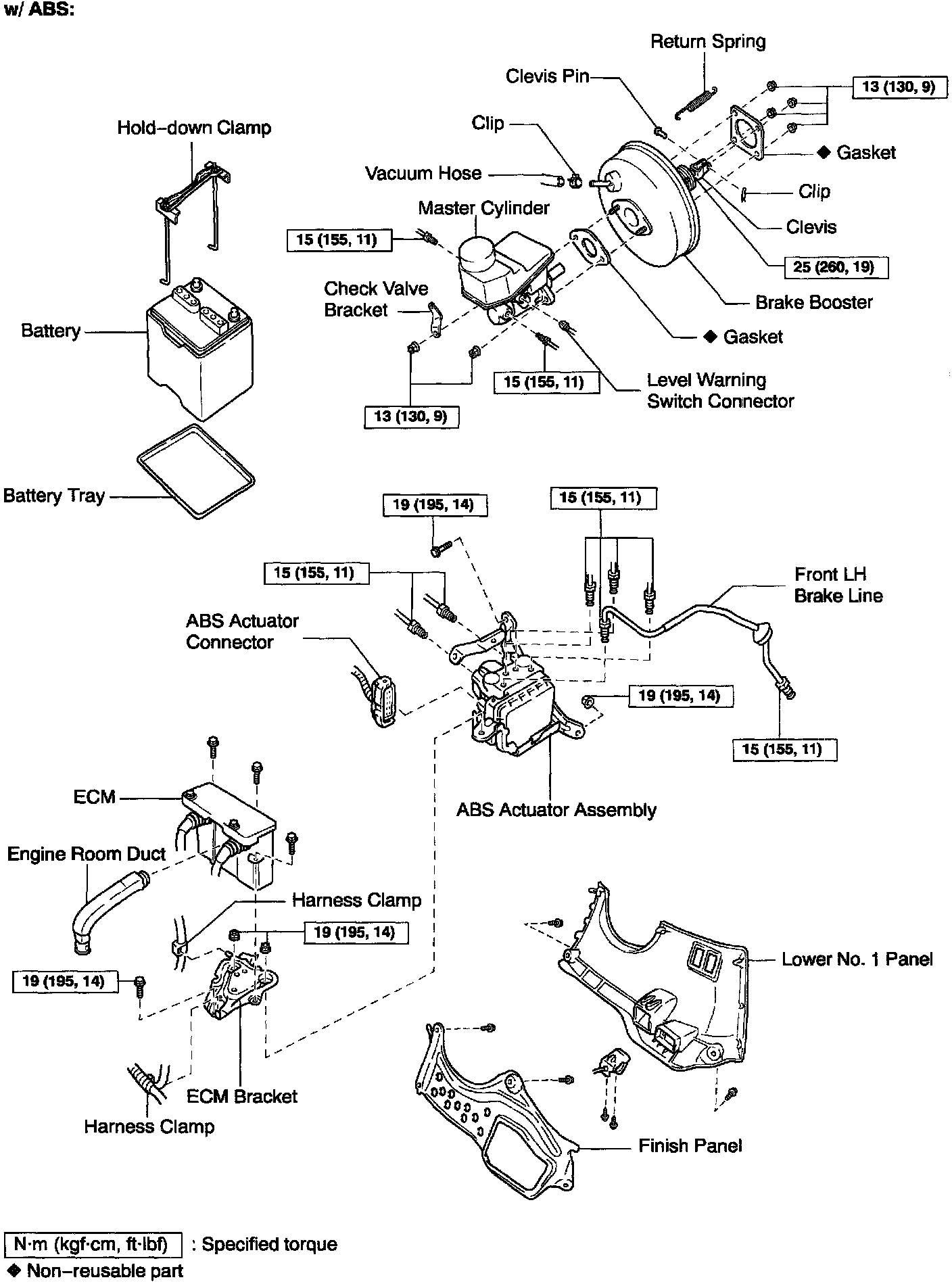

Part 1 Of 2:

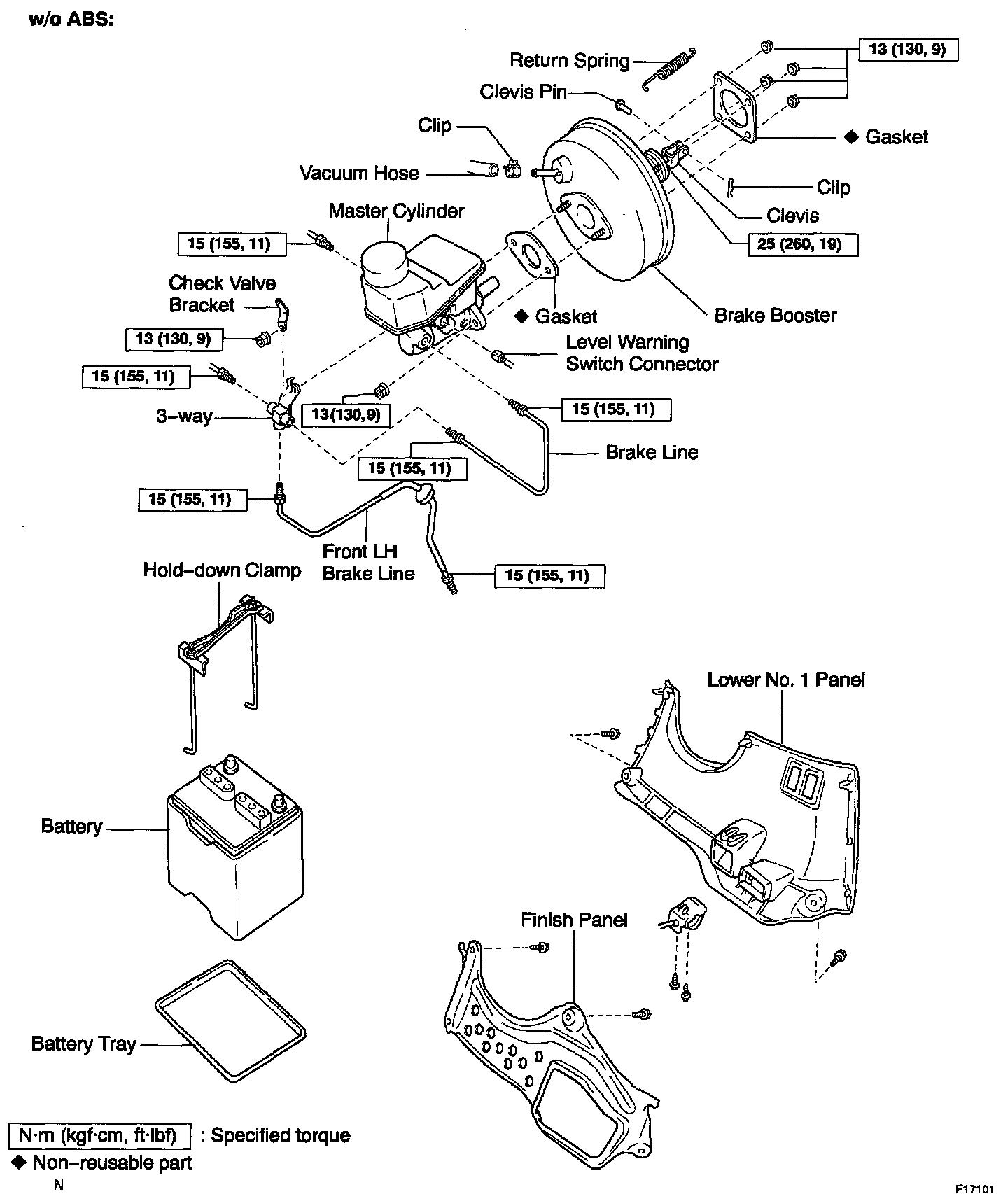

Part 2 Of 2:





BRAKE BOOSTER ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
