Installation

INSTALLATION





1. INSTALL VALVE TIMING CONTROLLER ASSEMBLY AND CAMSHAFT TIMING SPROCKET
(a) Apply engine oil in the range from the tip of the intake camshaft to 16 mm from that tip.

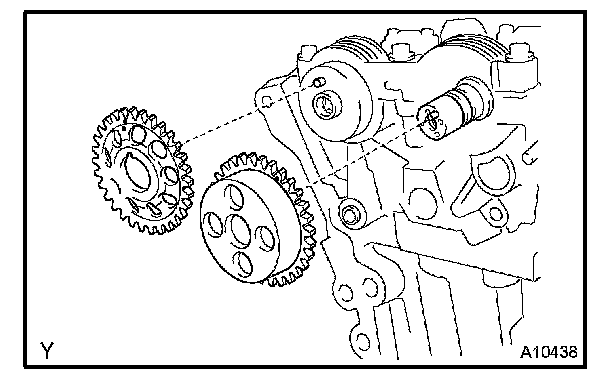

(b) Align the timing mark on the value timing controller assembly with the knock pin, and install the value timing controller assembly to the camshaft.

NOTICE: Do not push valve timing controller assembly to the camshaft forcibly when installing it.

(c) Align the knock pin hole in the camshaft timing sprocket with the knock pin of the camshaft, and exhaust the sprocket to the camshaft.





(d) Temporarily install the timing sprocket bolt.

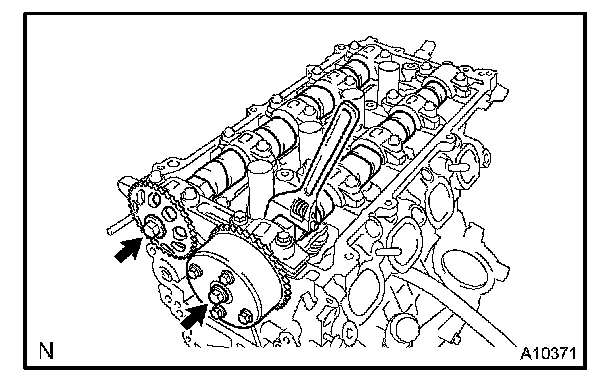

(e) Hold the hexagon wrench head portion of the camshaft with a wrench, and tighten the timing sprocket bolt.
Torque: 54 Nm (551 kgf-cm, 40 ft-lbf)

2. SET NO.1 CYLINDER TO TDC/COMPRESSION

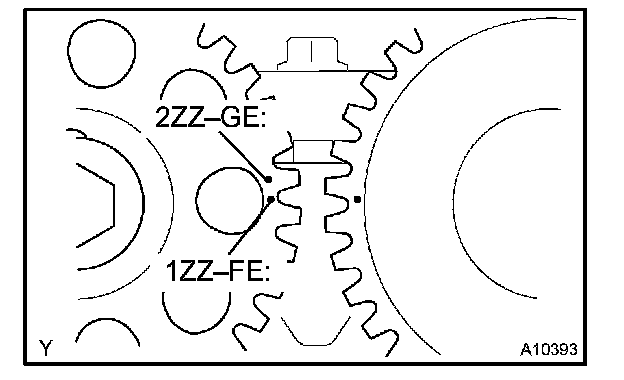

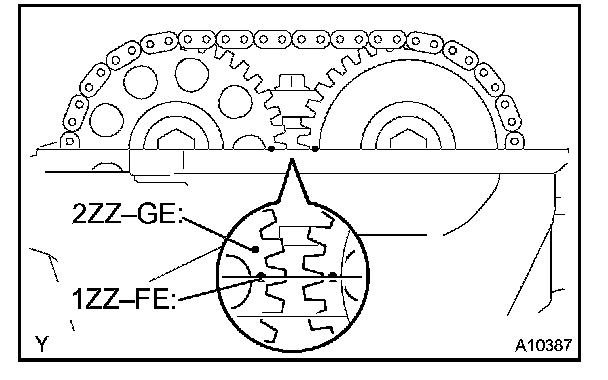

(a) Turn the hexagonal wrench head portion of the camshafts, and align the point marks of the camshaft timing sprockets.

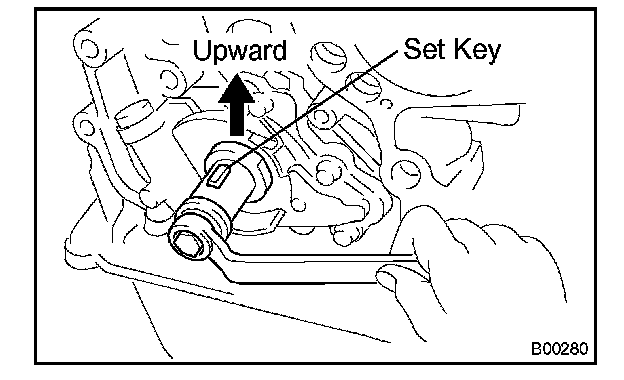

(b) Using a crankshaft pulley bolt, turn the crankshaft and set the set key on the crankshaft upward.

3. INSTALL CHAIN VIBRATION DAMPER





Install the damper with the 2 bolts.
Torque:
1ZZ-FE: 9.0 Nm (92 kgf-cm, 80 in.-lbf)
2ZZ-GE: 20.5 Nm (209 kgf-cm, 15 ft-lbf)

4. INSTALL TIMING CHAIN AND CRANKSHAFT TIMING SPROCKET

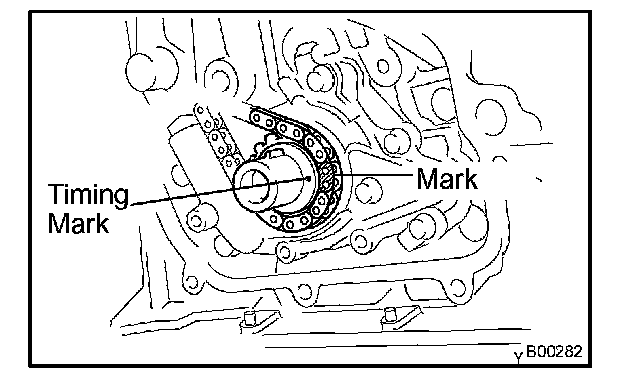

(a) Install the timing chain on the crankshaft timing sprocket with the yellow color link aligned with the timing mark on the crankshaft timing sprocket.

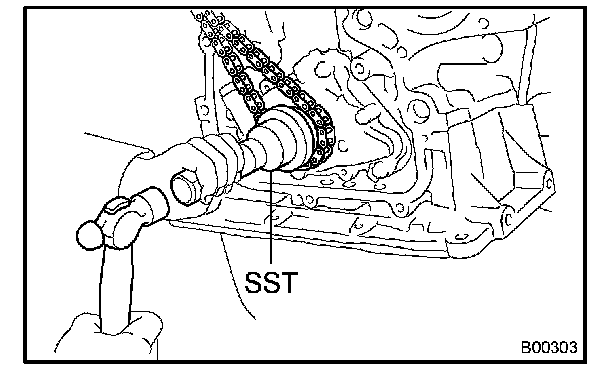

HINT: If necessary, install the sprocket with SST.
SST 09223-22010

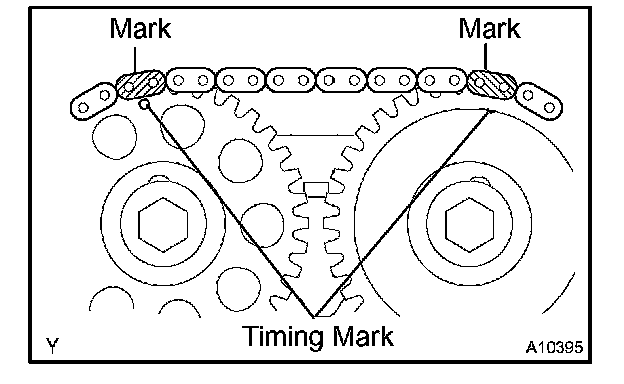

(b) 1ZZ-FE: Install the timing chain on the camshaft timing sprockets with the yellow color links aligned with the timing marks on the camshaft timing sprockets.
(c) 2ZZ-GE: Install the timing chain on the camshaft timing sprockets with the orange color links aligned with the timing marks on the camshaft timing sprockets.





(d) Check that the tension between the intake camshaft timing sprocket and crankshaft timing sprocket.

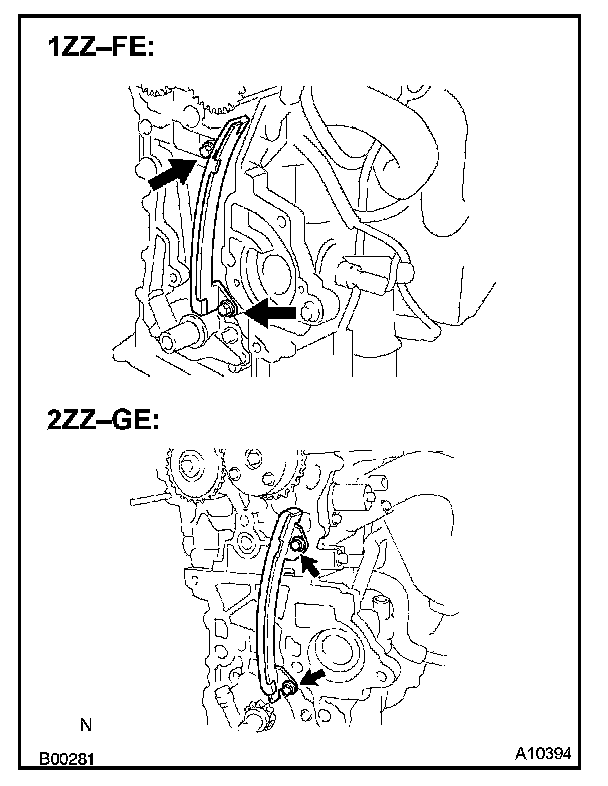

5. INSTALL CHAIN TENSIONER SLIPPER
(a) Install the slipper with the bolt.
Torque:
1ZZ-FE: 18.5 Nm (189 kgf-cm, 14 ft-lbf)
2ZZ-GE: 20.5 Nm (209 kgf-cm, 15 ft-lbf)

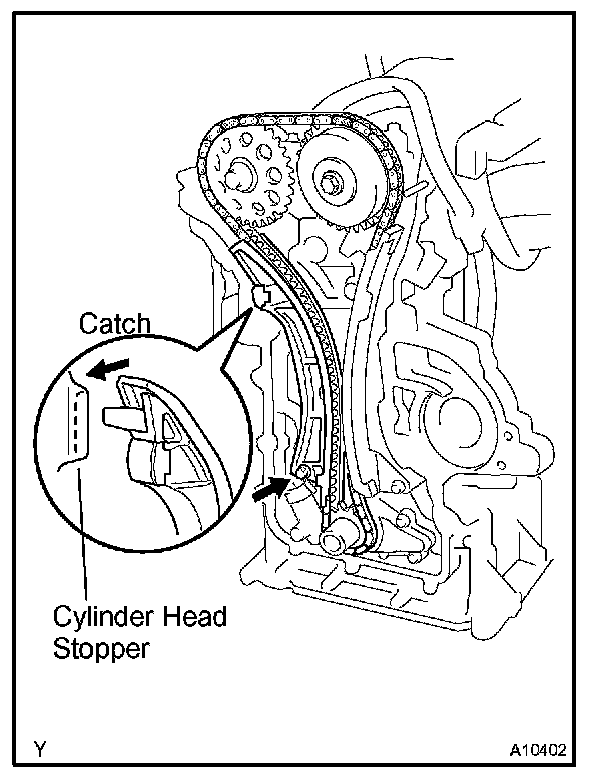

(b) Check that the slipper moves is caught on the cylinder head stopper.

NOTICE: Do not turn the crankshaft.

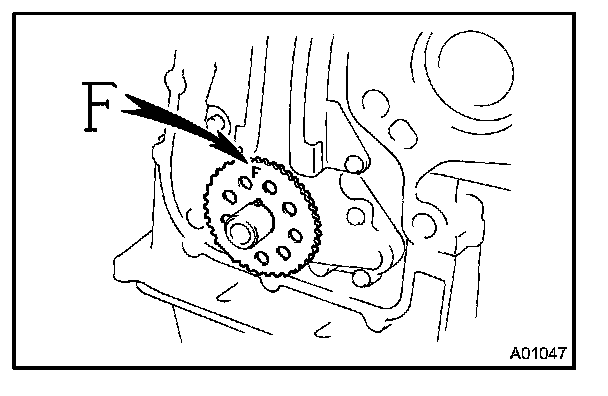

6. INSTALL CRANK ANGLE SENSOR PLATE





Install the plate with the "F" mark facing forward.

7. 1ZZ-FE: INSTALL TIMING CHAIN COVER AND WATER PUMP





(a) Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the timing chain cover, cylinder head and cylinder block.
- Using a razor blade and a gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing grooves.
- Thoroughly clean all components to remove all the loose material.
- Using a non-residue solvent, clean both sealing surfaces.

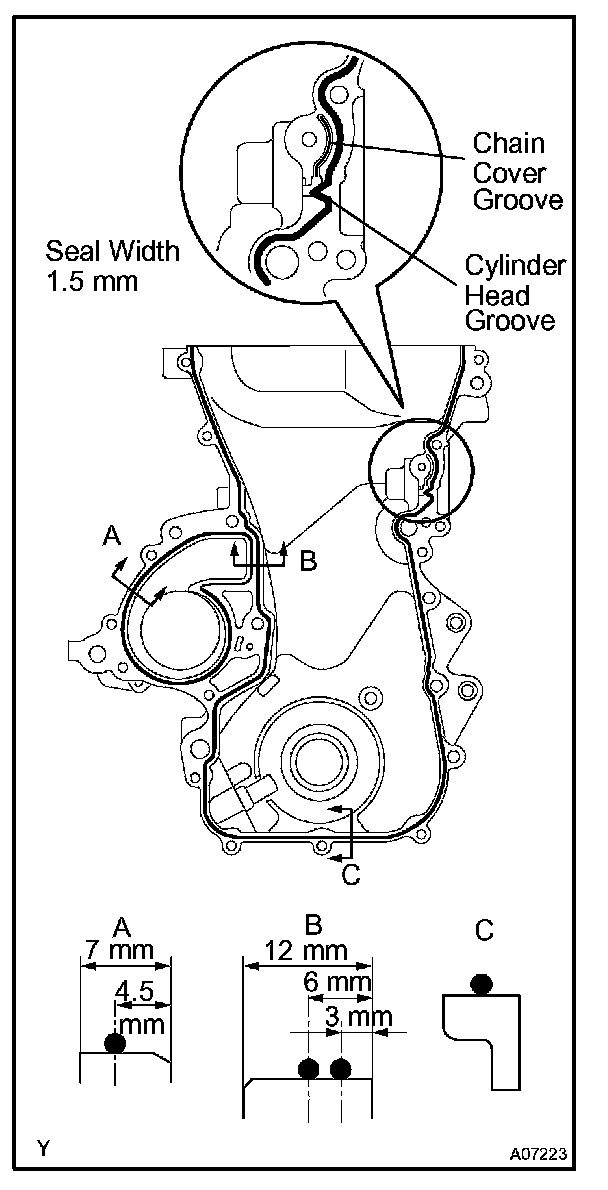

(b) Apply seal packing to the timing chain cover as shown in the illustration.
Seal packing:
Part No.08826-00100 or equivalent
- Install a nozzle that has been cut to a 1.5 mm (0.16-0.20 in.) opening.

HINT: Avoid applying an excessive amount to the surface.
- Parts must be assembled within 3 minutes of application. Otherwise the material must be removed and reapplied.
- Immediately remove nozzle from the tube and reinstall cap.





(c) Apply seal packing to 2 locations as shown in the illustration.
Seal packing:
- Part No.08826-00080 or equivalent
- Install a nozzle that has been cut to a 1.5 mm (0.16-0.20 in.) opening.

HINT: Avoid applying an excessive amount to the surface.
- Parts must be assembled within 3 minutes of application. Otherwise the material must be removed and reapplied.
- Immediately remove nozzle from the tube and reinstall cap.

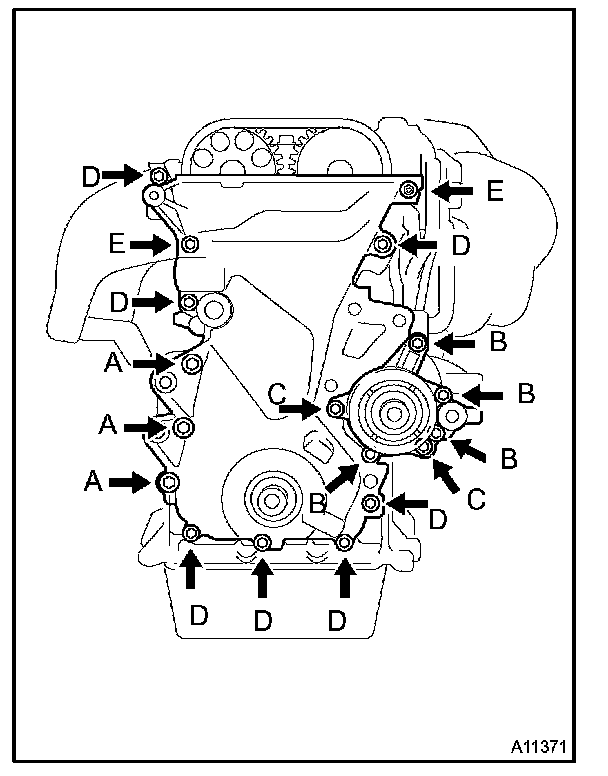

(d) Install the timing chain cover, 0-ring and water pump with the 16 bolts and 2 nuts. Uniformly tighten the bolts and nut in several passes.

Torque:
10 mm head:
9 Nm (92 kgf-cm, 80 in-lbf) for C
13 Nm (133 kgf-cm, 10 ft-lbf) for D and E
11 Nm (113 kgf-cm, 8 ft-lbf) for B
12 mm head:
18.5 Nm (189 kgf-cm, 14 ft-lbf) for A

NOTICE:
- Pay attention not to wrap the chain and slipper over the chain cover seal line.
- After installing the chain cover, must install the mounting bracket and water pump within 15 minutes.

HINT: Each bolt length in indicated in the illustration.
A: 45 mm (1.77 in.)
B: 35 mm (1.38 in.)
C: 22 mm (0.87 in.)
D: 25 mm (0.98 in.)

(e) Using a torx wench socket (E8), install the stud bolt.
Torque: 9.3 Nm (95 kgf-cm, 82 in.-lbf)

8. 2ZZ-GE: INSTALL TIMING CHAIN COVER AND WATER PUMP





(a) Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the timing chain cover, cylinder head and cylinder block.
- Using a razor blade and a gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing grooves.
- Thoroughly clean all components to remove all the loose material.
- Using a non-residue solvent, clean both sealing surfaces.

(b) Apply seal packing to the timing chain cover as shown in the illustration.
Seal packing:
Part No.08826-00100 or equivalent
- Install a nozzle that has been cut to a 1.5 mm opening.

HINT: Avoid applying an excessive amount to the surface.
- Parts must be assembled within 3 minutes of application. Otherwise the material must be removed and reapplied.
- Immediately remove nozzle from the tube and reinstall cap.

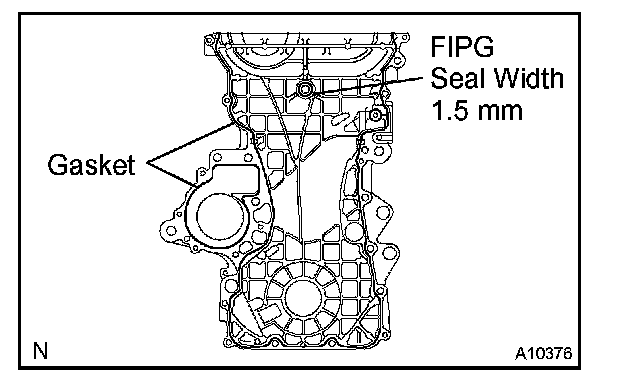

(c) Install the 2 gasket to the timing chain cover as shown in the illustration.

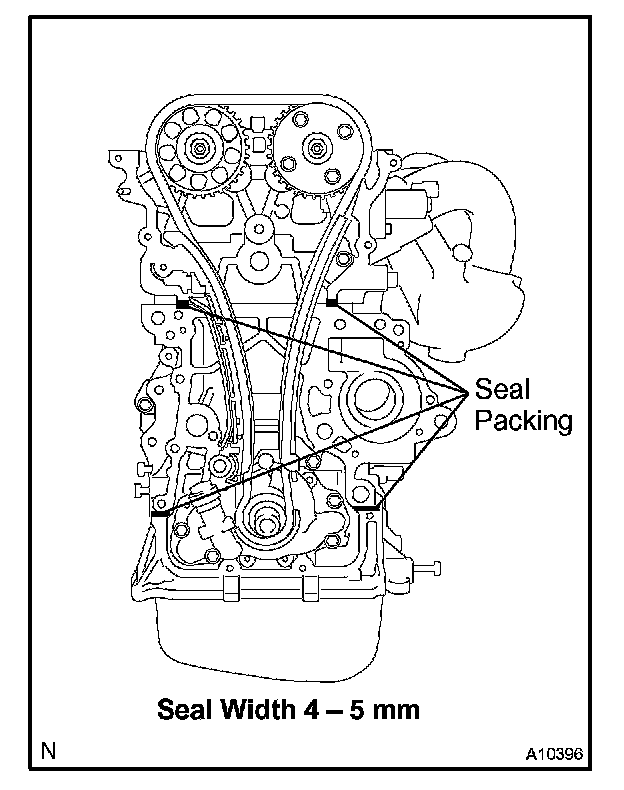

(d) Apply seal packing to 4 locations as shown in the illustration.
Seal packing:
Part No.08826-00080 or equivalent
- Install a nozzle that has been cut to a 4-5 mm (0.16-0.20 in.) opening.

HINT: Avoid applying an excessive amount to the surface.
- Parts must be assembled within 3 minutes of application. Otherwise the material must be removed and reapplied.
- Immediately remove nozzle from the tube and reinstall cap.

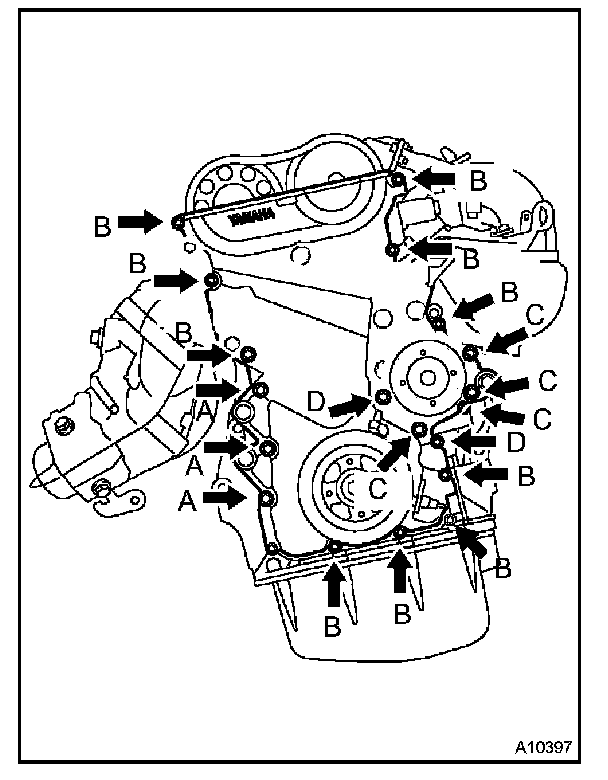

(e) Install the timing chain cover, O-ring and water pump with the 19 bolts. Uniformly tighten the bolts in several passes.
Torque:
A: 21 Nm (214 kgf-cm, 15 ft-lbf)
B: 11 Nm (113 kgf-cm, 8 ft-lbf)
C: 9.0 Nm (92 kgf-cm, 80 in-lbf)
D: 9.0 Nm (92 kgf-cm, 80 in-lbf)

NOTICE:
- Pay attention not to wrap the chain and slipper over the chain cover seal line.
- After install the chain cover, must install the mounting bracket and water pump within 15 minutes.

(f) Using a torx wrench socket (E8), install the stud bolt.
Torque: 9.3 Nm (95 kgf-cm, 82 in-lbf)

9. 2ZZ-GE: INSTALL EXHAUST MANIFOLD
10. 2ZZ-GE: INSTALL EXHAUST MANIFOLD STAY
11. 2ZZ-GE: INSTALL FRONT EXHAUST PIPE





12. 1ZZ-FE: INSTALL RH ENGINE MOUNTING BRACKET
(a) Apply seal packing to threads of the mounting bolt.
Seal packing:
Part No.08826-00080 or equivalent

HINT: Do not apply seal packing to 2 or 3 threads of the bolt end.

(b) Install the mounting bracket with the 3 bolts.
Torque: 47 Nm (479 kgf-cm, 35 ft-lbf)

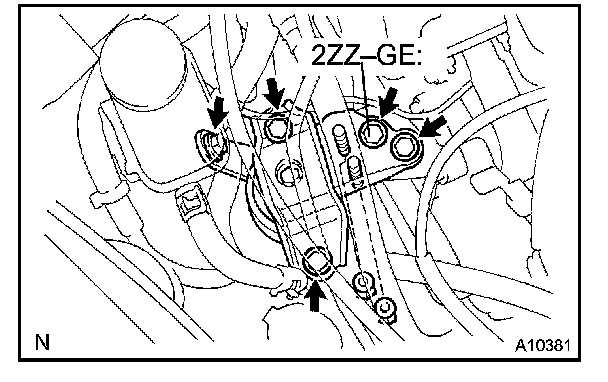

13. 2ZZ-GE: INSTALL RH ENGINE MOUNTING BRACKET
Install the mounting bracket with the 4 bolts.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)

14. INSTALL DRIVE BELT TENSIONER
(a) Check the appearance before installing the drive belt tensioner.
If in case of having the oil leakage, crack, and etc., replace the drive belt tensioner.

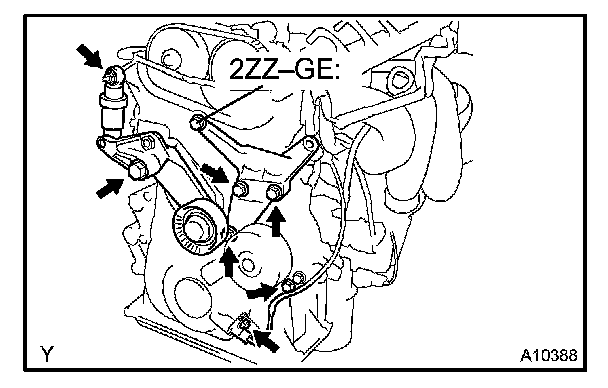

(b) Install the drive belt tensioner.
Torque:
Bolt:
1ZZ-FE: 69 Nm (704 kgf-cm, 51 ft-lbf)
2ZZ-GE: 100 Nm (1,020 kgf-cm, 74 ft-lbf)
Nut: 29 Nm (296 kgf-cm, 21 ft-lbf)

(c) Hook the tool on the hexagonal portion of the drive belt tensioner bracket and operate drive belt tensioner 3 times with full stroke.

HINT: Take 3 seconds or more for 1 full stroke.

15. INSTALL CRANKSHAFT POSITION SENSOR
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

16. INSTALL CRANKSHAFT PULLEY
(a) Clean the crankshaft pulley inside.
(b) Align the pulley set key with the key groove of the pulley, and slide on the pulley.

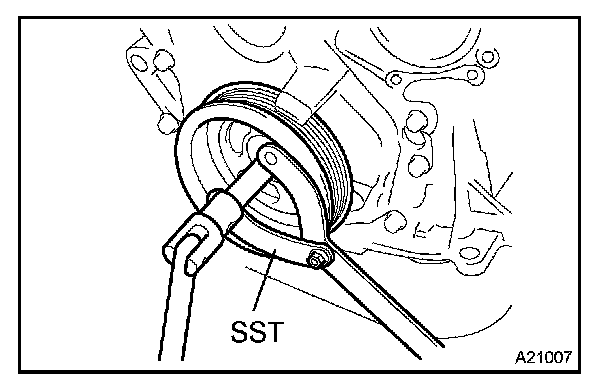

(c) Using SST, install the pulley bolt.
SST 09960-10010 (09962-01000, 09963-01000)
Torque:
1ZZ-FE: 138 Nm (1,409 kgf-cm, 102 ft-lbf)
2ZZ-GE: 120 Nm (1,224 kgf-cm, 89 ft-lbf)





17. INSTALL CHAIN TENSIONER
(a) Check the chain tensioner.

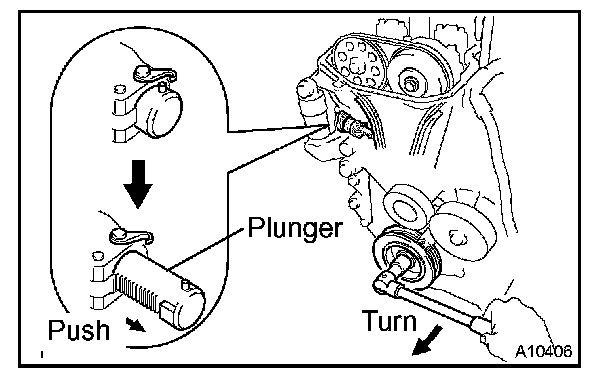

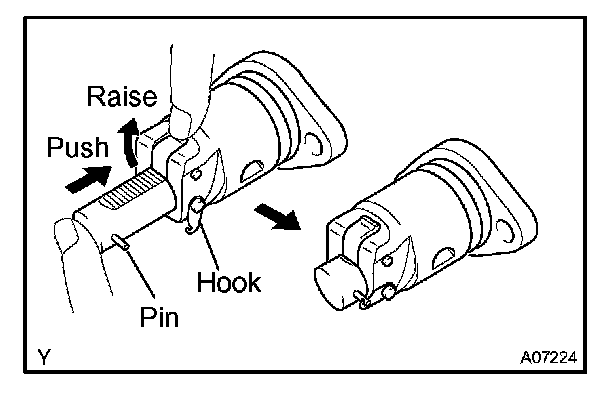

(b) Release the ratchet pawl, fully push in the plunger and apply the hook to the pin so that the plunger cannot spring out.





(c) Insert the O-ring with your hand until it reaches to the chamfering position and install nut temporally. Then, by tightening the nut, insert the chain tensioner to the installation position.

HINT:
- In the case that the hook is released while pushing in, apply the hook again and push the tensioner in.
- Pay attention not to catch the O-ring as it is built in the chain tensioner previously.

(d) Tighten the 2 nuts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

18. SET CHAIN TENSION

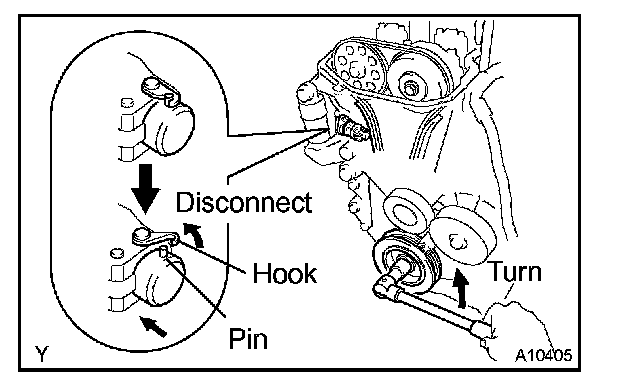

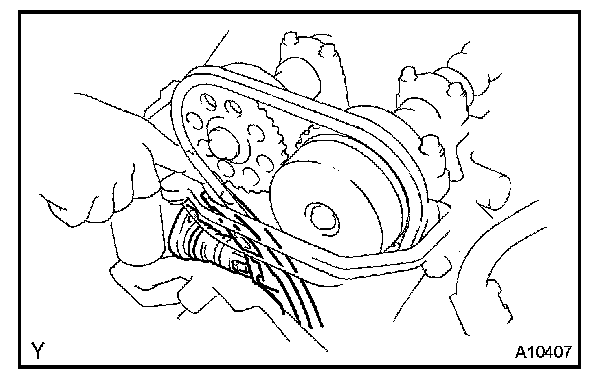

(a) Turn the crankshaft counterclockwise, and disconnect the plunger knock pin from the hook.





(b) Turn the crankshaft clockwise, and check that the slipper is pushed by the plunger.





HINT: If the plunger does not spring out, press the slipper into the chain tensioner with a screwdriver or your finger so that the hook is released from the knock pin and the plunger springs out.

19. CHECK VALVE TIMING
(a) Turn the crankshaft pulley, and align its groove with timing mark "0" of the timing chain cover.

NOTICE: Always turn the crankshaft clockwise.





(b) Check that the point marks of the camshaft timing sprockets are in straight line on the timing chain cover surface as shown in the illustration.

If not, turn the crankshaft 1 revolution (360°) and align the marks as above.

20. 1ZZ-FE: INSTALL CYLINDER HEAD COVER





(a) Remove any old packing (FIPO) material.

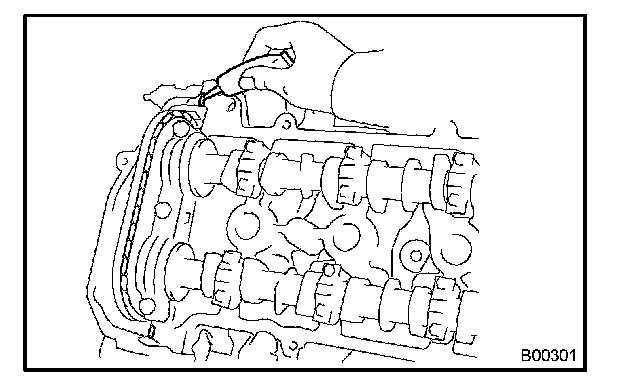

(b) Apply seal packing to 2 locations as shown in the illustration.
Seal packing:
Part No.08826-00080 or equivalent

(c) Install the gasket to the cylinder head cover.

HINT: Part must be assembled within 3 minutes of application. Otherwise the material must be remove and reapplied.

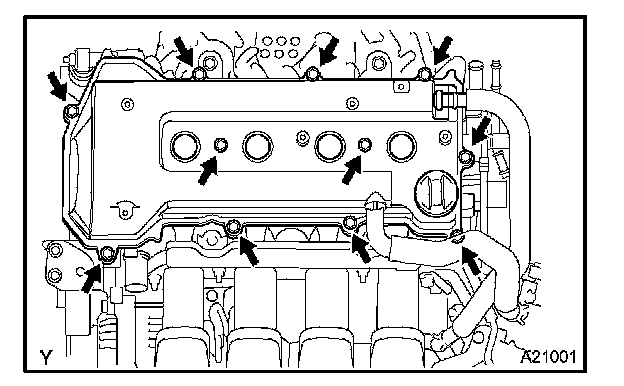

(d) Install the cylinder head cover with the 9 bolts, 2 seal washers and 2 nuts.
Uniformly tighten the bolts and nuts, in the several passes, in the sequence shown.

Torque:
w/o washer: 11 Nm (113 kgf-cm, 8 ft-lbf)
w/ washer: 9.0 Nm (92 kgf-cm, 80 in-lbf)

(e) Connect the 2 PCV hoses to the cylinder head cover.
(f) Install the ignition coil.

21. 2ZZ-GE: INSTALL CYLINDER HEAD COVER





(a) Remove any old packing (FIPG) material.

HINT: When FIPG on the head cover gasket side cannot be eliminated completely, replace the gasket.

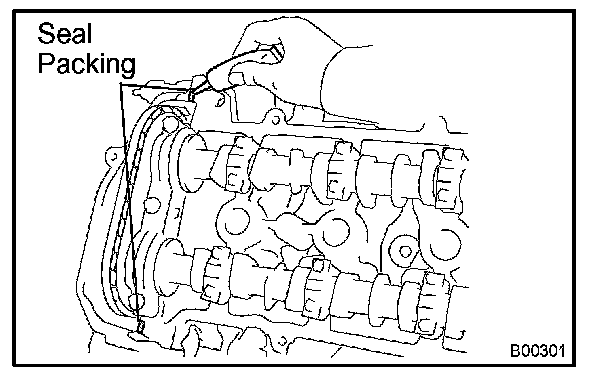

(b) Apply seal packing to 2 locations as shown in the illustration.
Seal packing:
Part No.08826-00080 or equivalent

(c) Install the gasket to the cylinder head cover.

HINT: Part must be assembled within 3 minutes of application. Otherwise the material must be remove and reapplied.

(d) Install a new O-ring to the cylinder head cover.

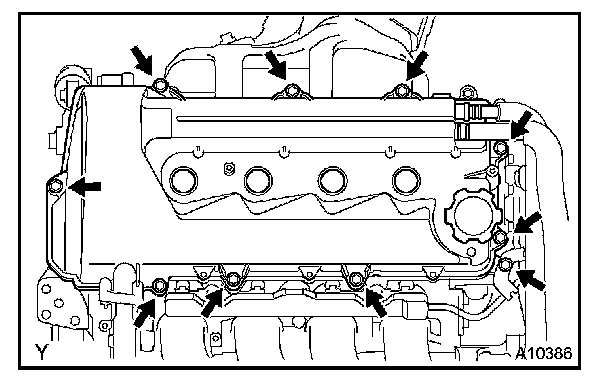

(e) Install the cylinder head cover and wire harness protector with the 9 bolts. Uniformly tighten the bolts, in the several passes, in the sequence shown.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf)

(f) Connect the 2 PCV hoses to the cylinder head cover.

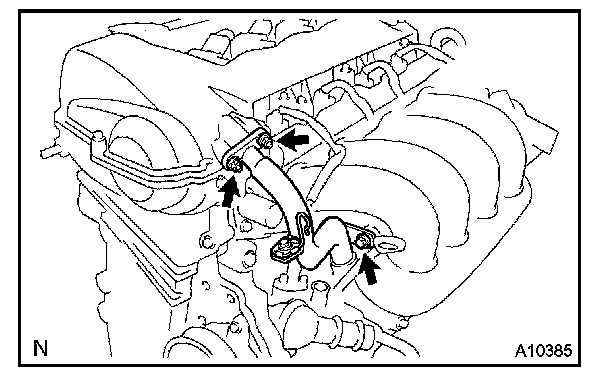

(g) Install a new gasket and No.1 ventilation pipe with 2 nuts and bolt.
Torque:
Nut: 10 Nm (100 kgf-cm, 7 ft-lbf)
Bolt: 25 Nm (255 kgf-cm, 18 ft-lbf)

(h) Connect the No.3 ventilation hose to the No.1 ventilation pipe.
(i) Install the ignition coil (See page 10-7).

22. INSTALL RH ENGINE MOUNTING INSULATOR
(a) 1ZZ-FE: Install the RH engine mounting insulator with the 4 bolts and 2 nuts.
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf)





(b) 2ZZ-GE: Install the RH engine mounting insulator with the 5 bolts and 2 nuts.
Torque: 52 Nm (530 kgf-cm, 38 ft-lbf)

23. INSTALL PS PUMP
(a) Install the PS pump with the 2 through bolts and nuts.
Torque: 36 Nm (370 kgf-cm, 27 ft-lbf)

(b) Install the PS pump pulley with the pulley nut.
(c) Connect the PS oil pressure switch connector.

24. INSTALL GENERATOR AND DRIVE BELT
25. 2ZZ-GE: INSTALL AIR SWITCHING VALVE
26. INSTALL RH ENGINE UNDER COVER
27. INSTALL RH FRONT WHEEL
28. FILL WITH ENGINE COOLANT
29. INSTALL FRONT FENDER APRON SEAL AND UPPER RADIATOR SUPPORT SEAL
30. START ENGINE AND CHECK FOR COOLANT LEAKS
