Upper

REMOVAL
1. REMOVE REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
2. REMOVE TAILPIPE AND HEAT INSULATOR
a. Remove the 2 bolts, springs, gasket, 3 O-rings and tail pipe.
Torque: 43 Nm (440 kgf-cm, 32 ft. lbs.)
b. Remove the 4 bolts and heat insulator.





3. REMOVE UPPER SUSPENSION ARM

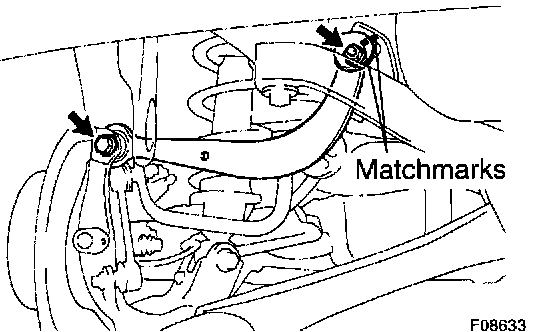

a. Place matchmarks on both the cam plate and suspension member.
b. Remove the nut, cam plate and cam bolt.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)

HINT: At the time of installation, after stabilizing the suspension, torque the nut.

c. Remove the bolt, nut and upper suspension arm.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)

NOTICE: Do not turn the nut.

HINT: At the time of installation, after stabilizing the suspension, torque the bolt.

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check the rear wheel alignment.
