Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Celica L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Specifications

Suspension: Specifications

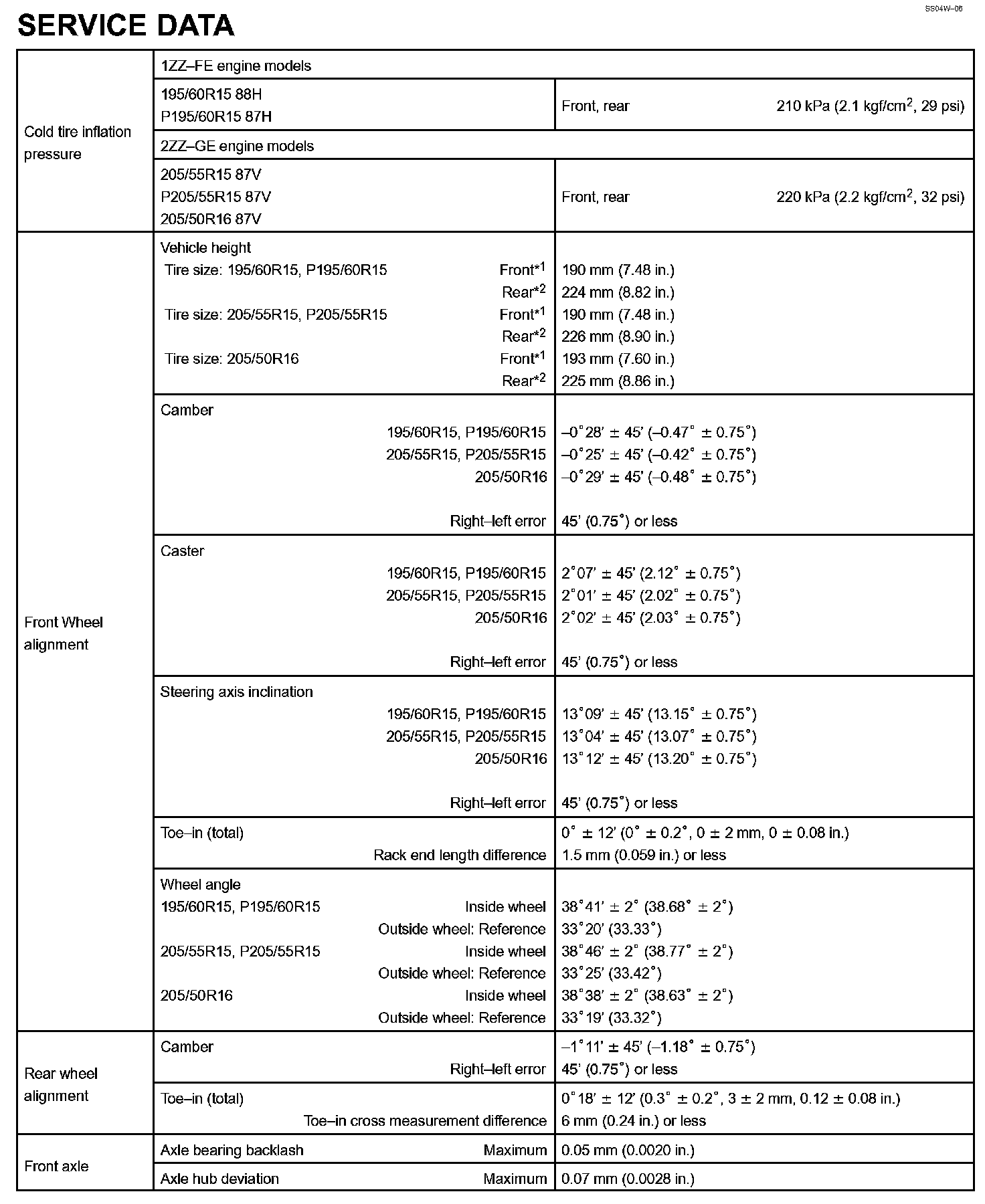

Suspension And Axle - Service Data Part 1:

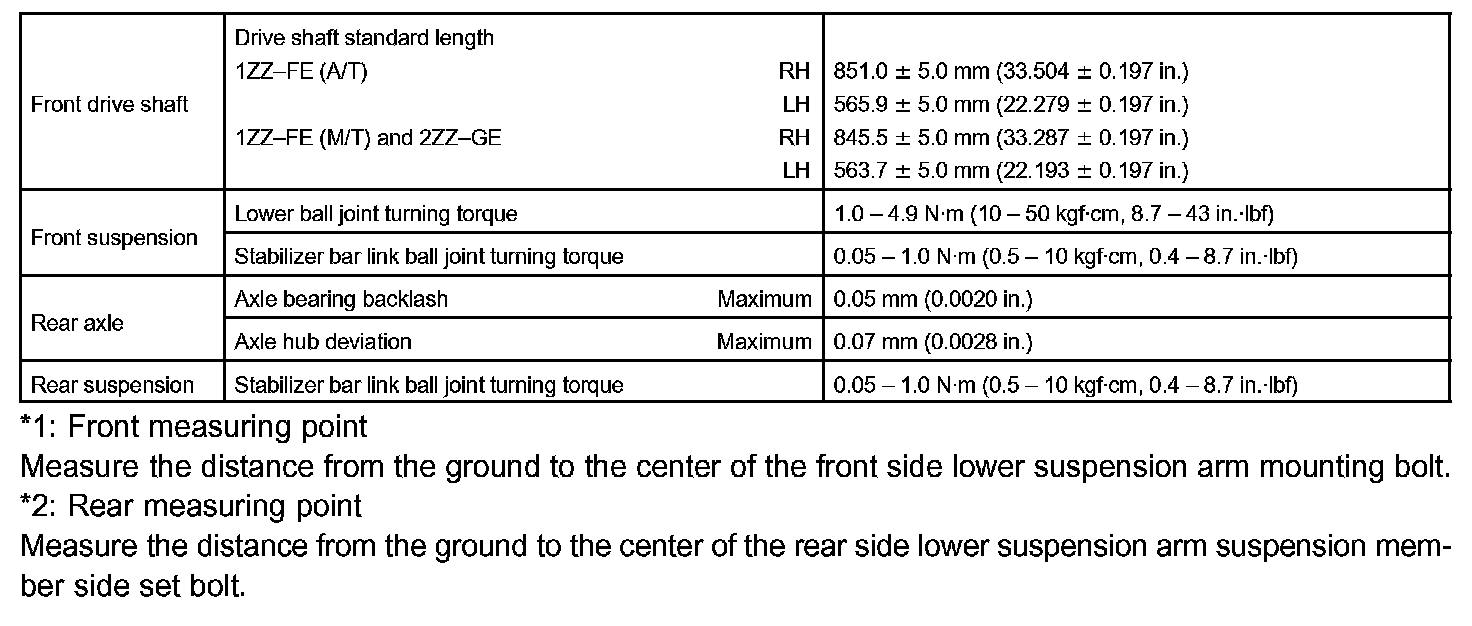

Suspension And Axle - Service Data Part 2:

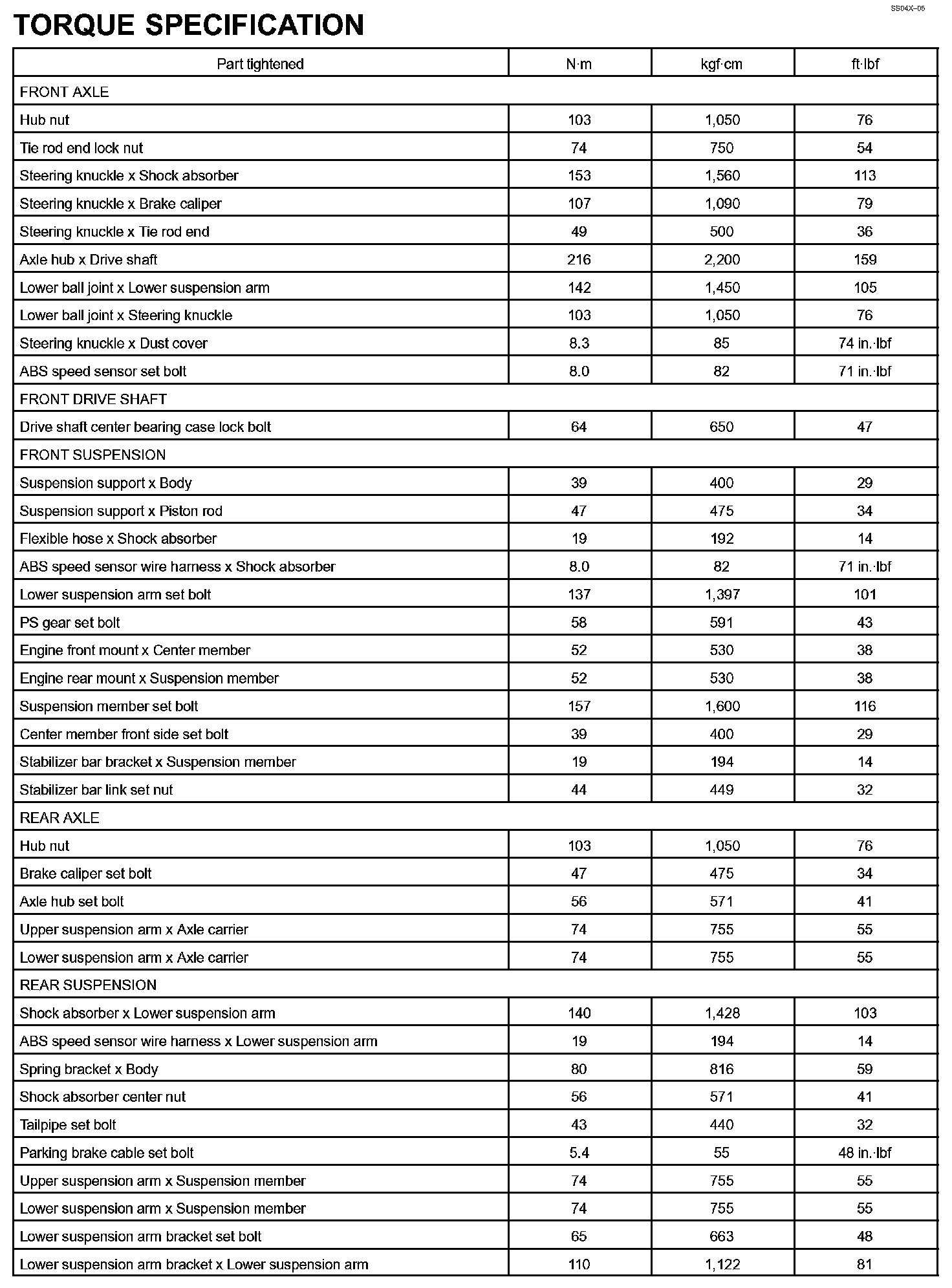

Suspension And Axle - Torque Specification Part 1:




Suspension And Axle - Torque Specification Part 2:
