Definition of Terms

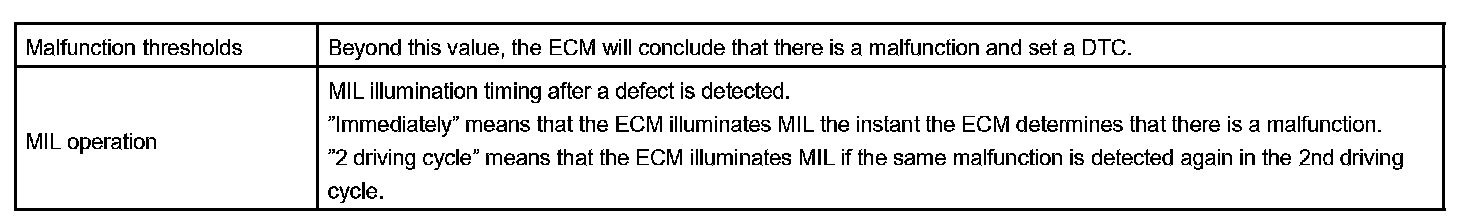

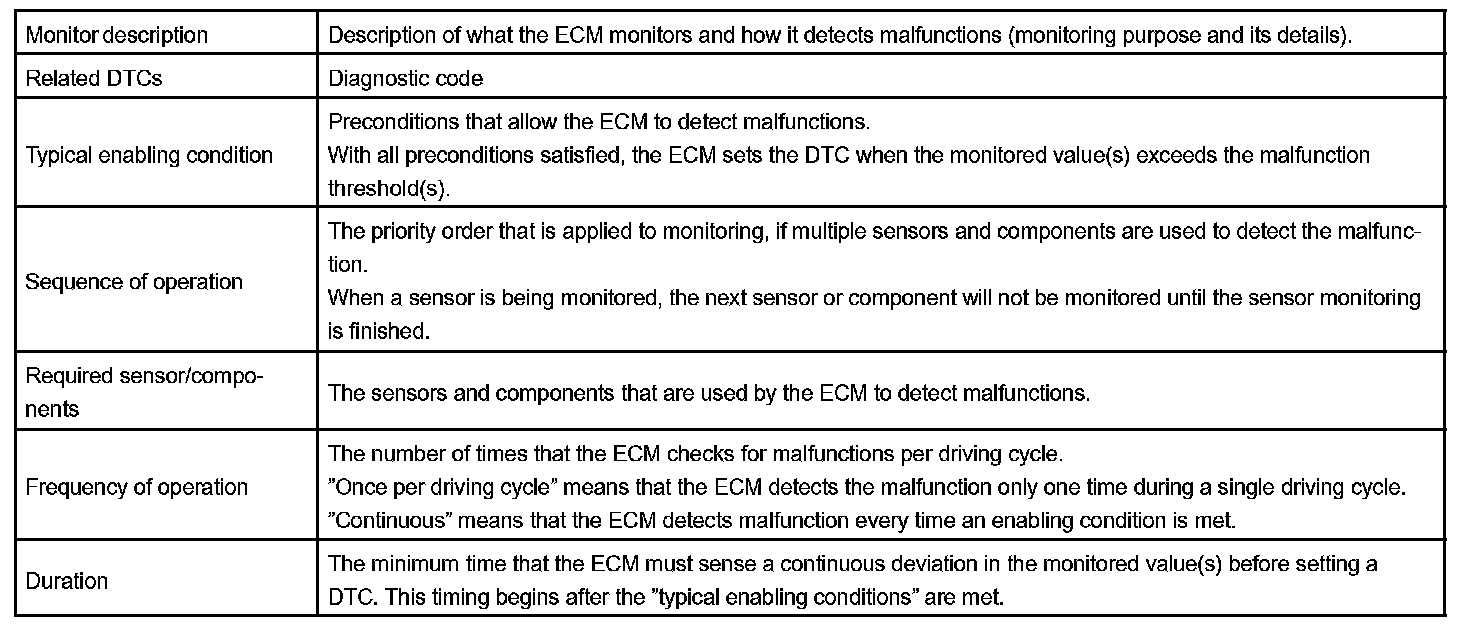

Definition Of Terms Part 1:




Definition Of Terms Part 2:

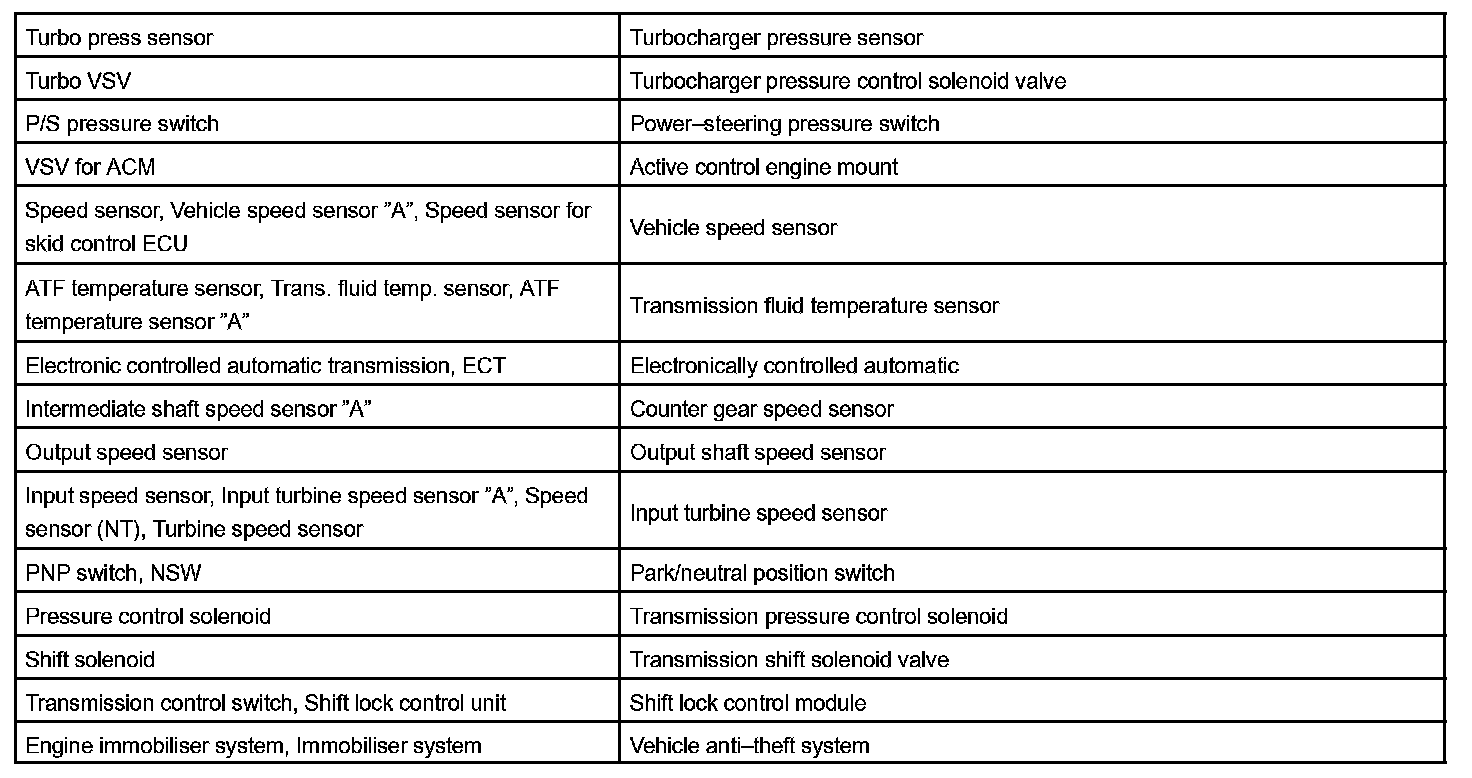

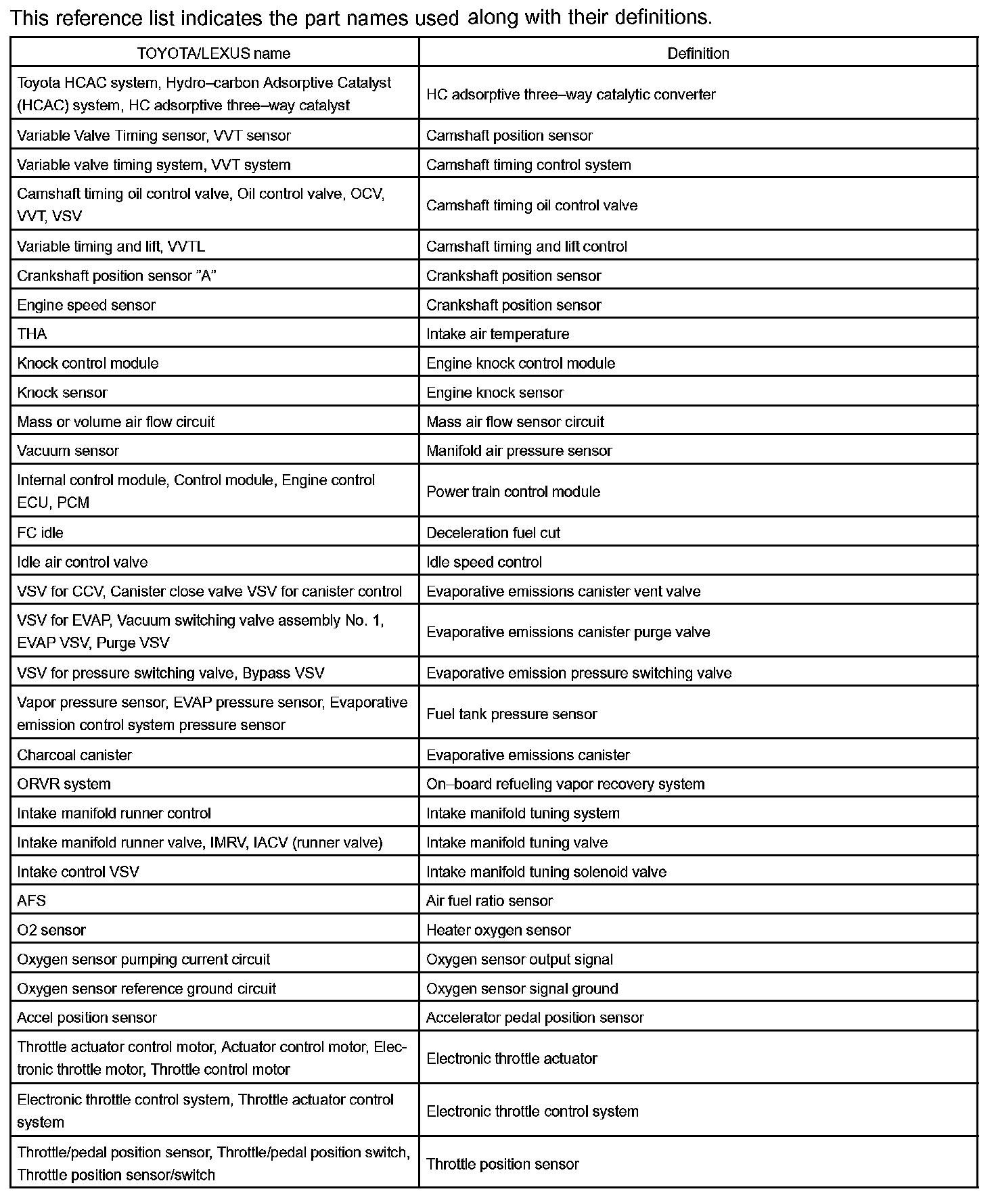

TOYOTA/LEXUS Part And System Name List Part 1:




TOYOTA/LEXUS Part And System Name List Part 2:
