Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Celica L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Exploded Views
Exploded Views

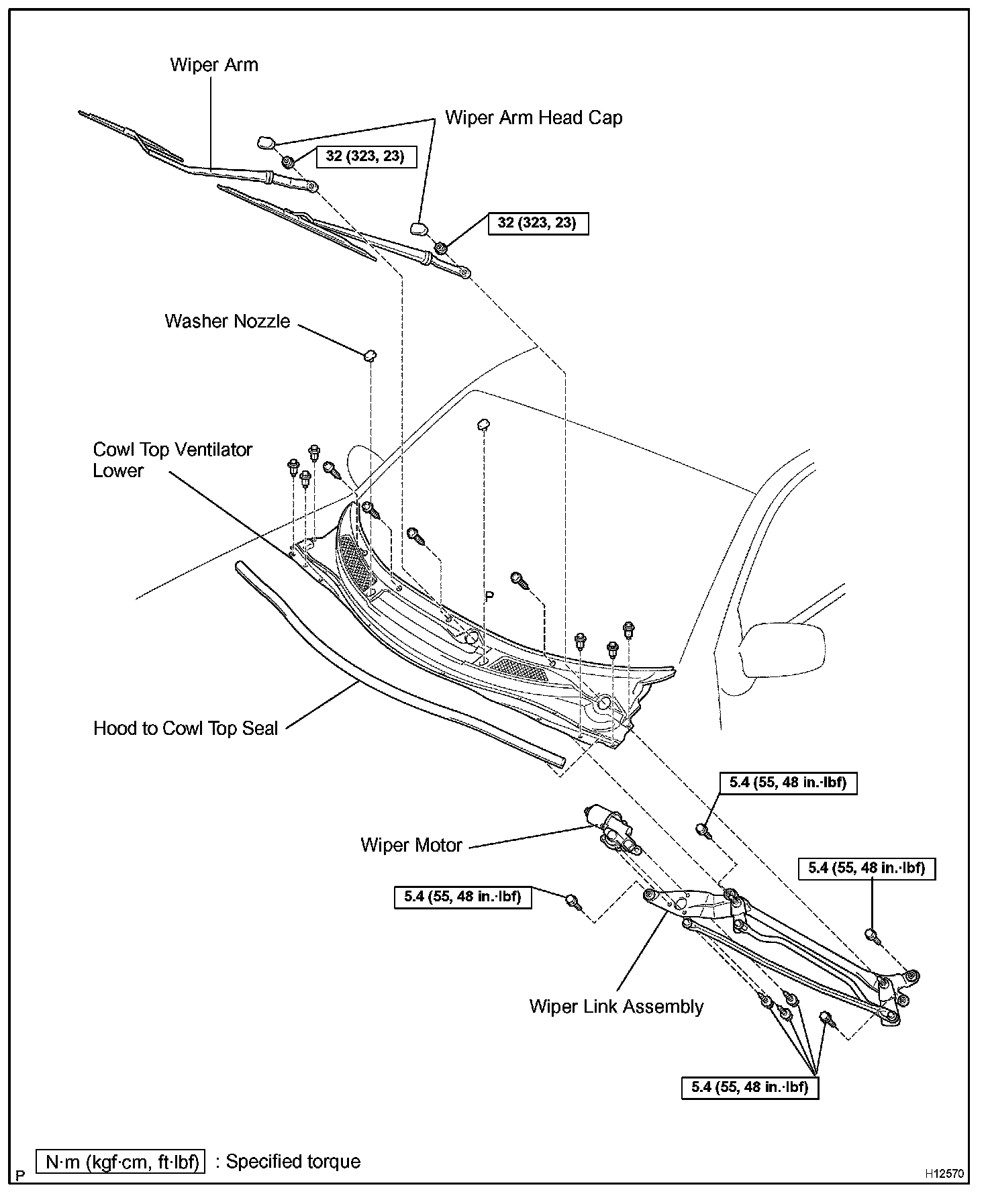

Front Wiper And Washer:

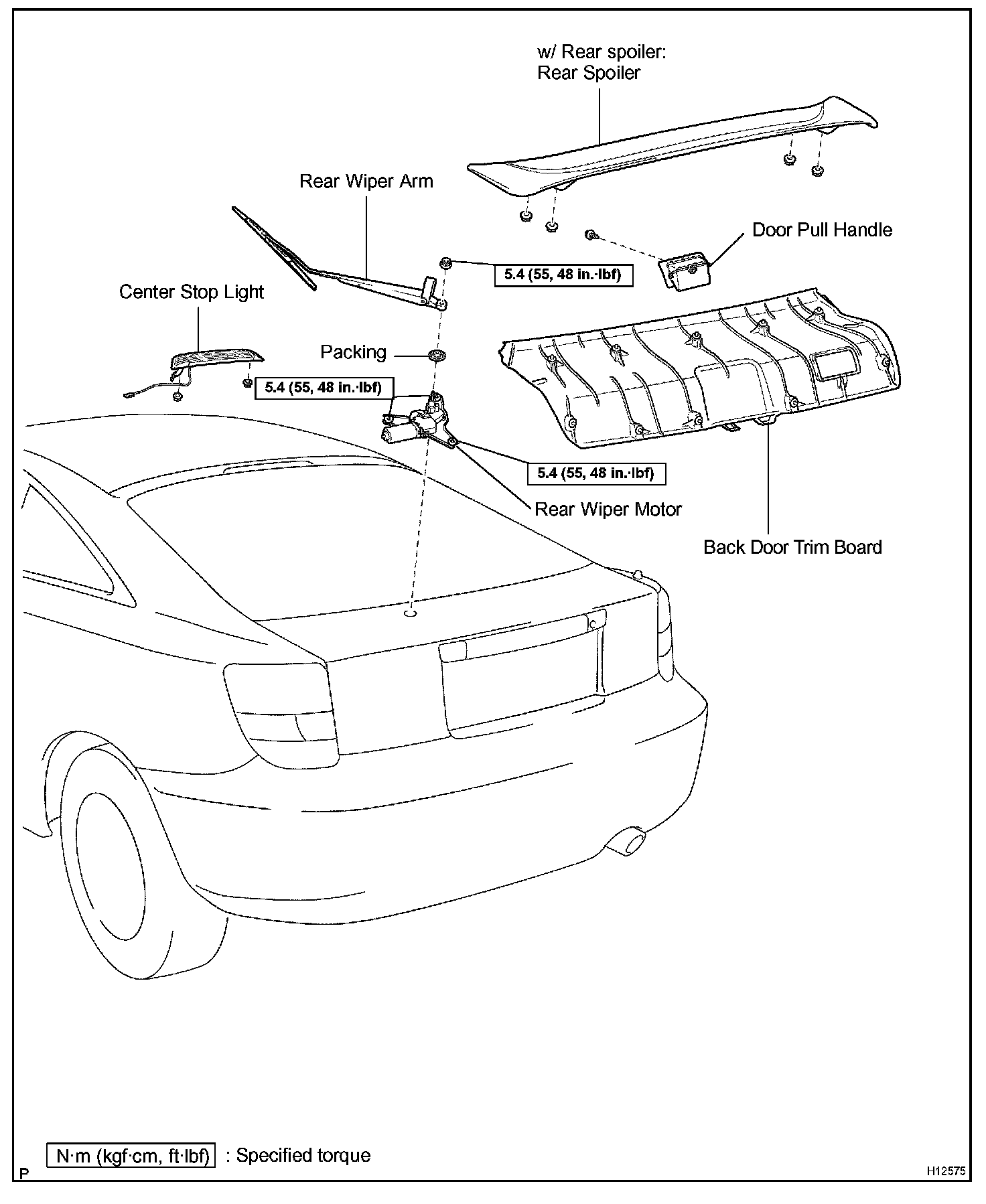

Rear Wiper And Washer:
