Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

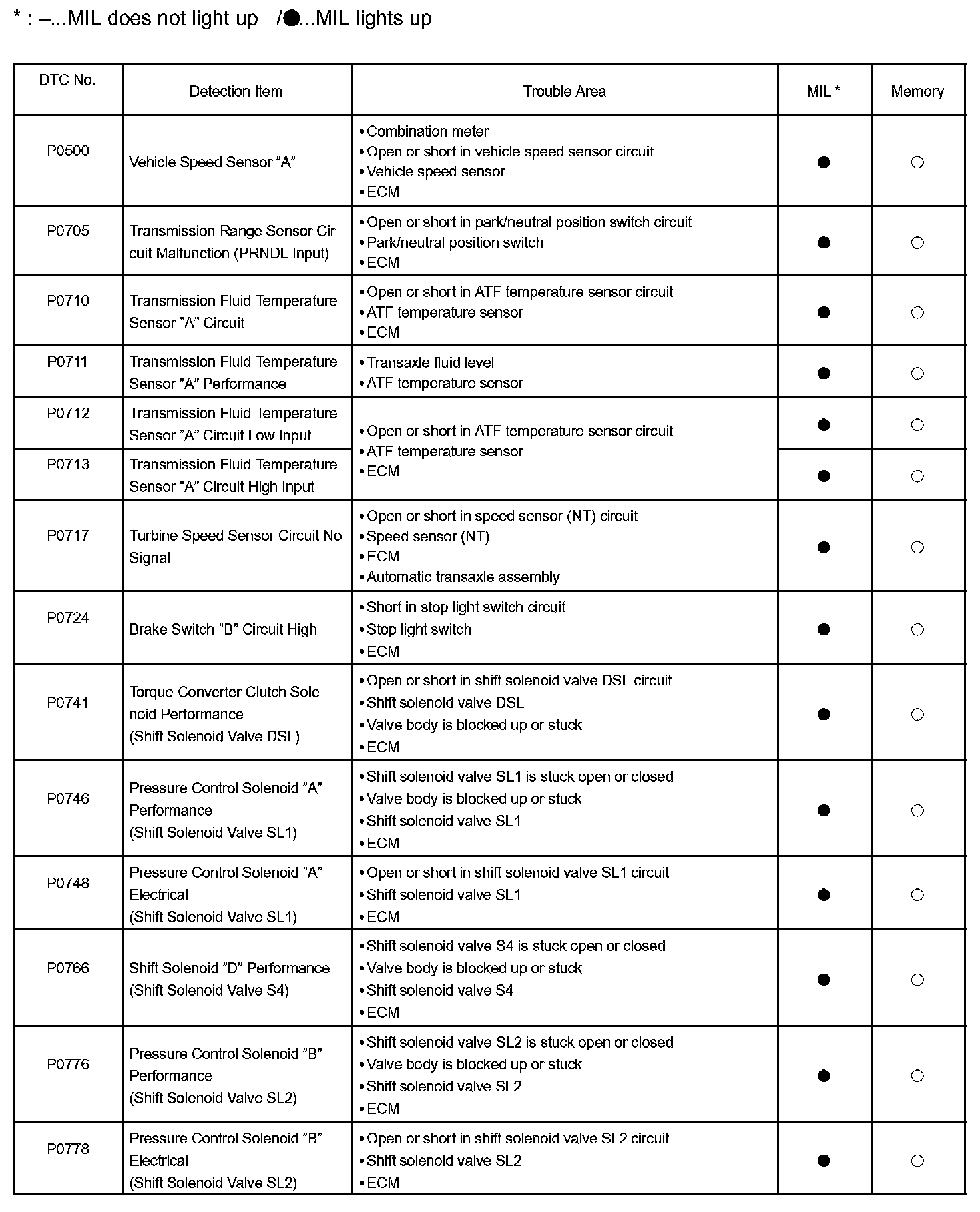

P0500 - P0778:

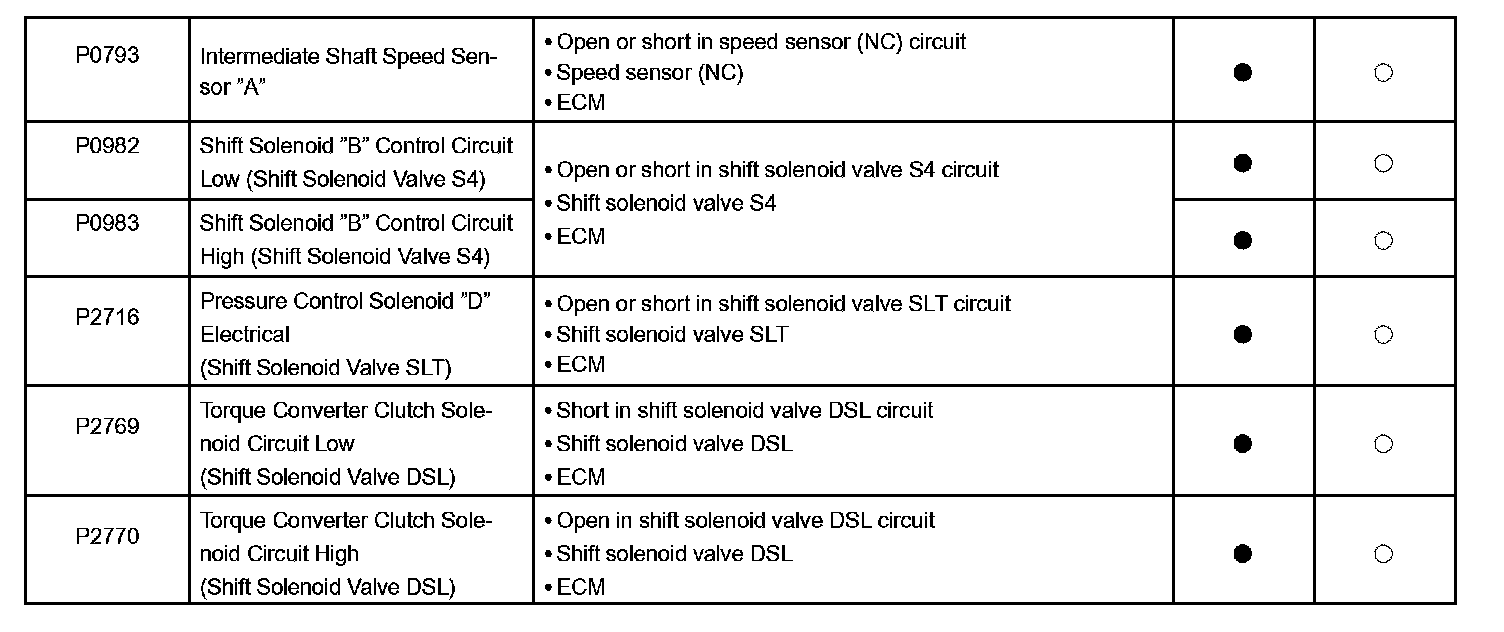

P0793 - P2770:

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table and proceed to the corresponding troubleshooting.
