Horn Circuit
Horn Circuit
HORN CIRCUIT
CIRCUIT DESCRIPTION
The horn is connected to and activated by the body ECU.

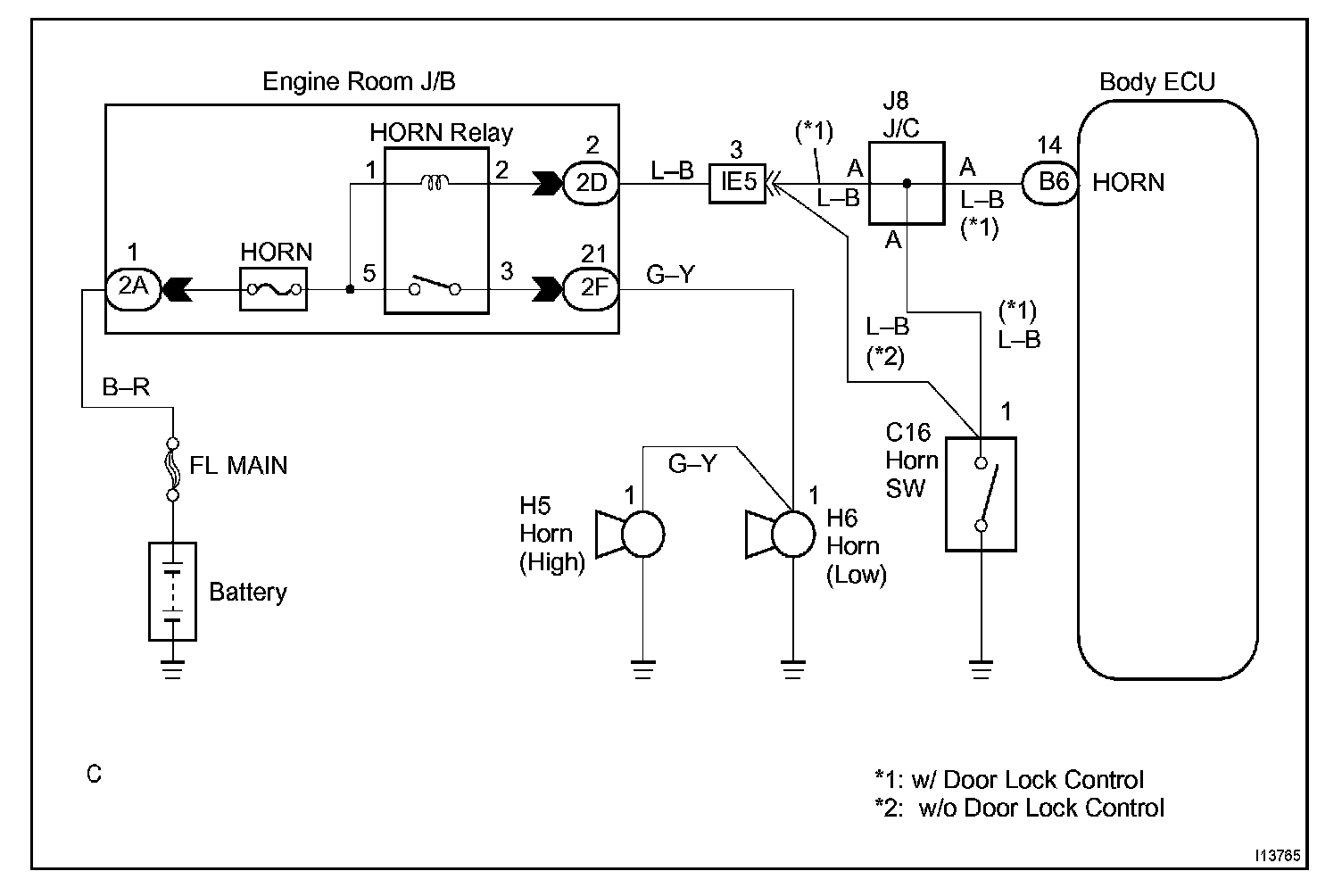

Wiring Diagram:

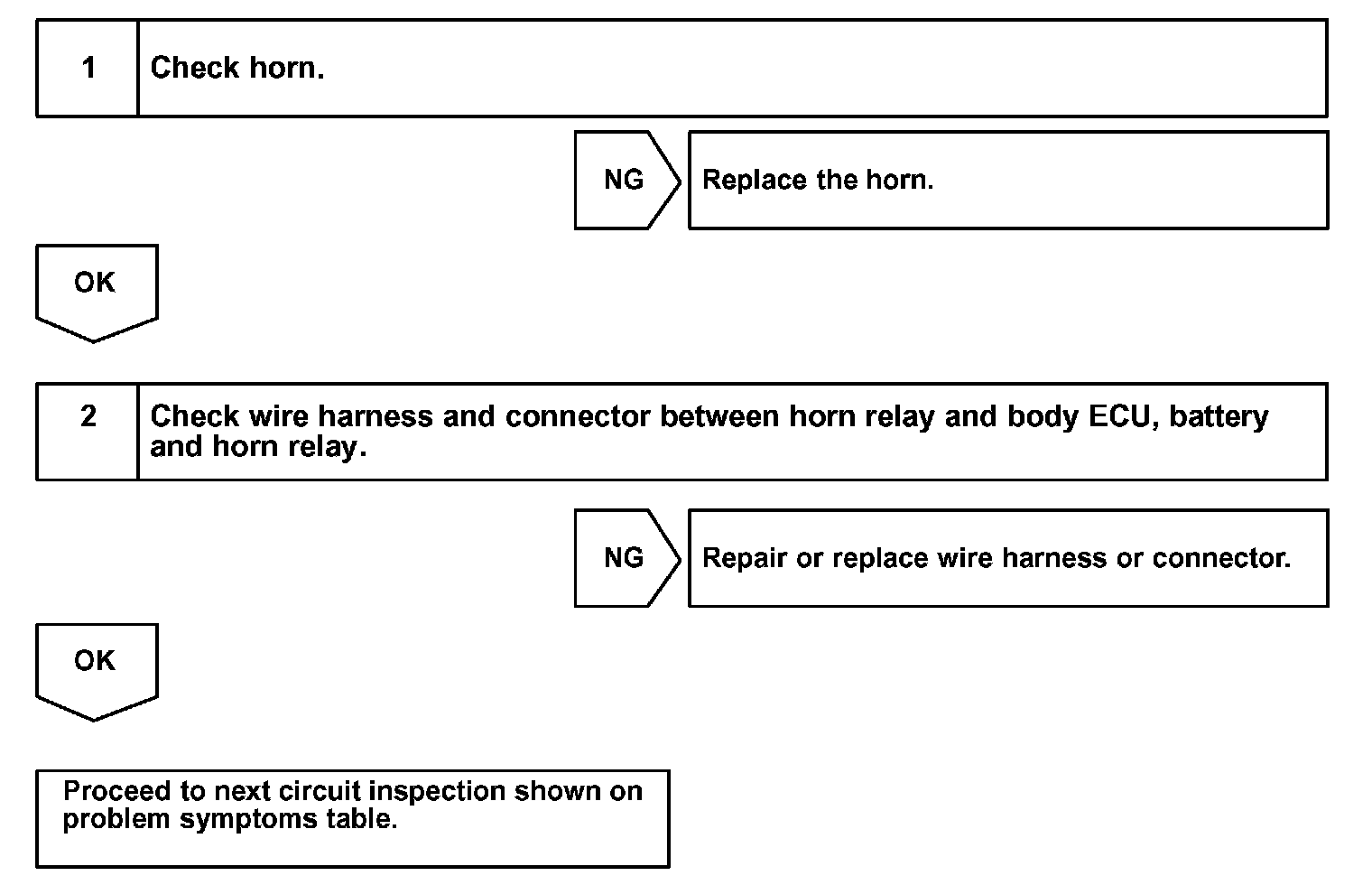

Step 1 - 2:
INSPECTION PROCEDURE
