Ignition Switch Power Source Circuit
IGNITION SWITCH POWER SOURCE CIRCUITCIRCUIT DESCRIPTION
When the ignition switch is turned to the ACC position, battery voltage is applied to terminal ACC of ECU, and when the ignition switch is turned to the ON position, battery voltage is applied to terminal IG of ECU.

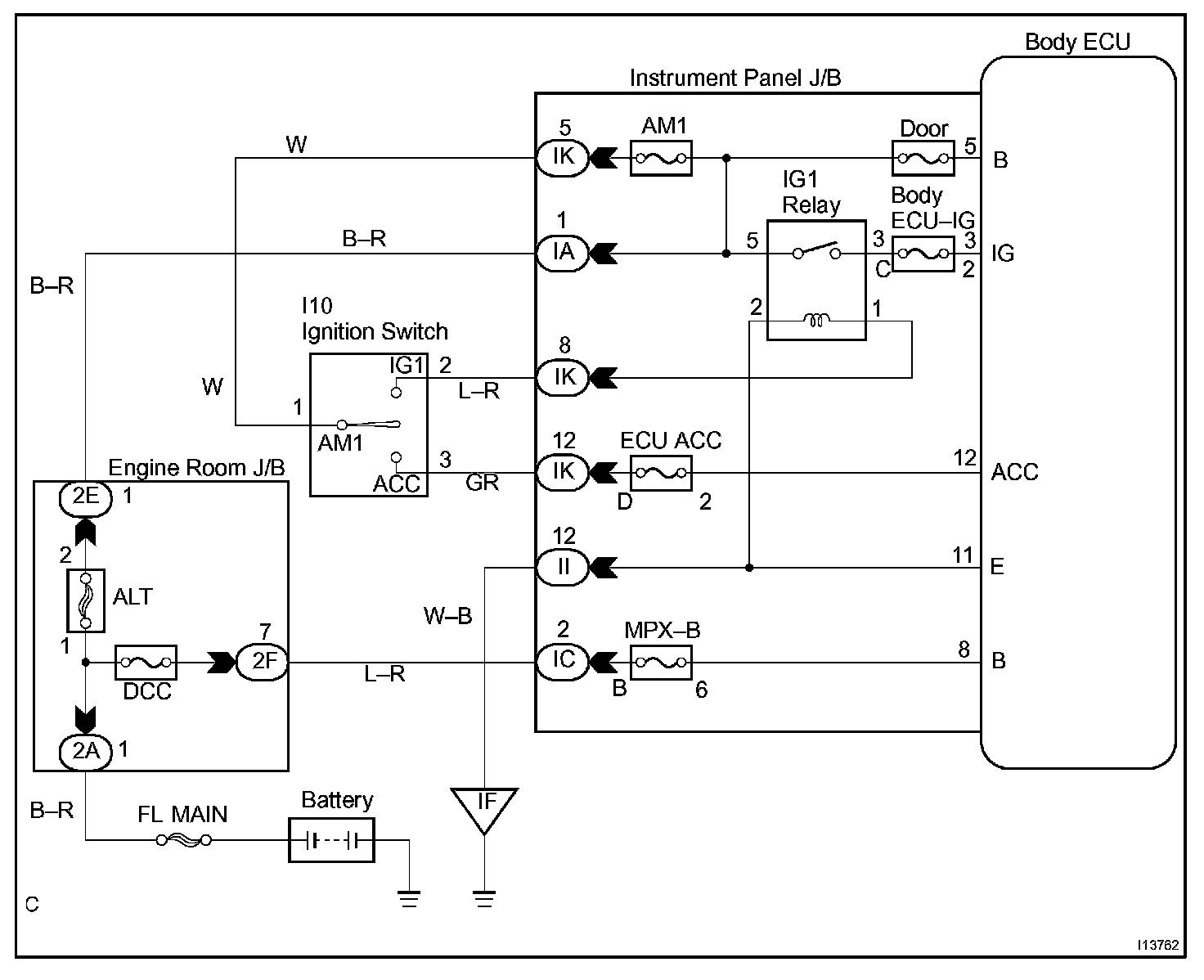

Wiring Diagram:
Step 1 - 3:

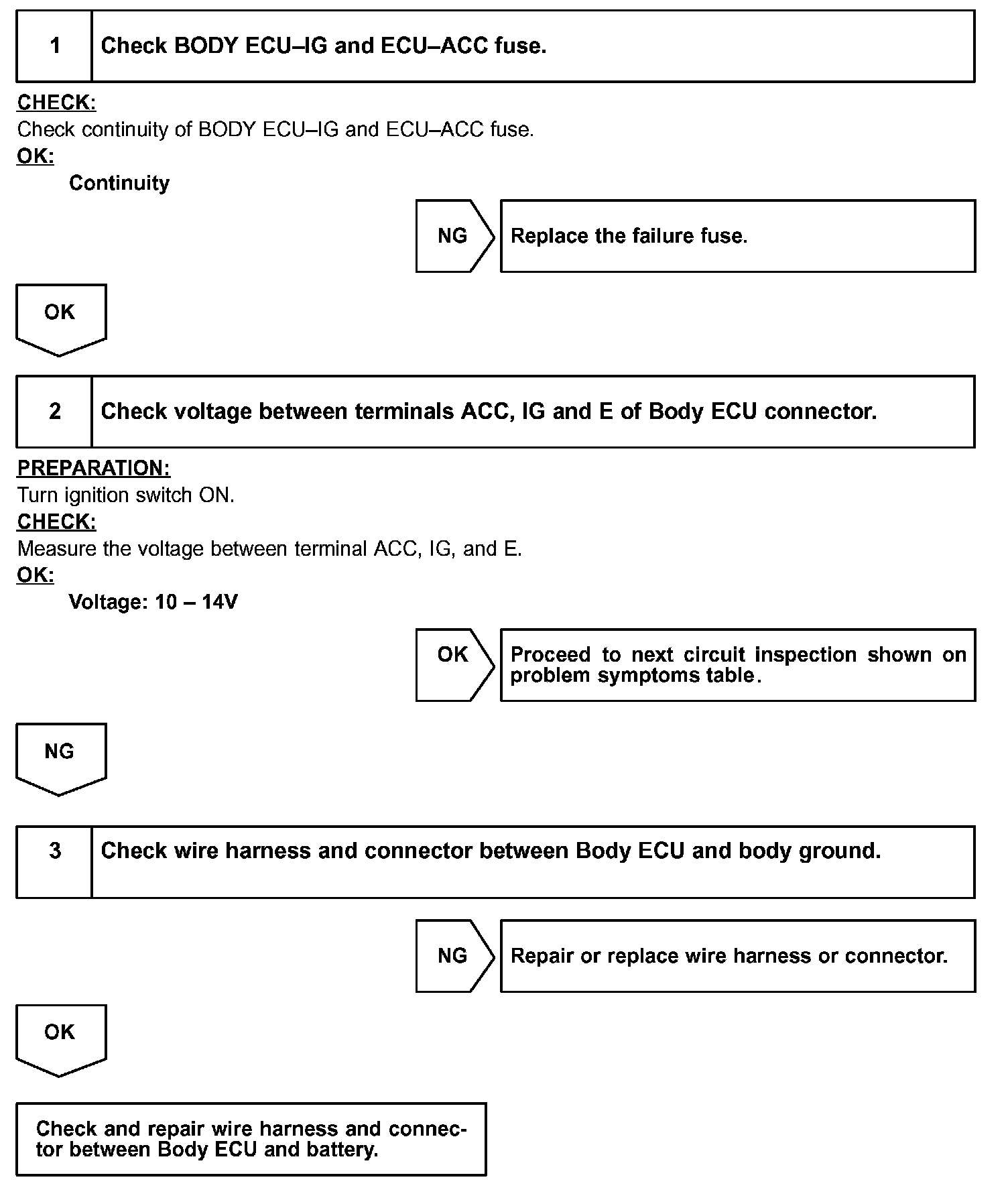

INSPECTION PROCEDURE
