Illumination Circuit
ILLUMINATION CIRCUITCIRCUIT DESCRIPTION
Receiving the courtesy signal from the Body ECU will make the interior light, the ignition light and the courtesy light to come on.

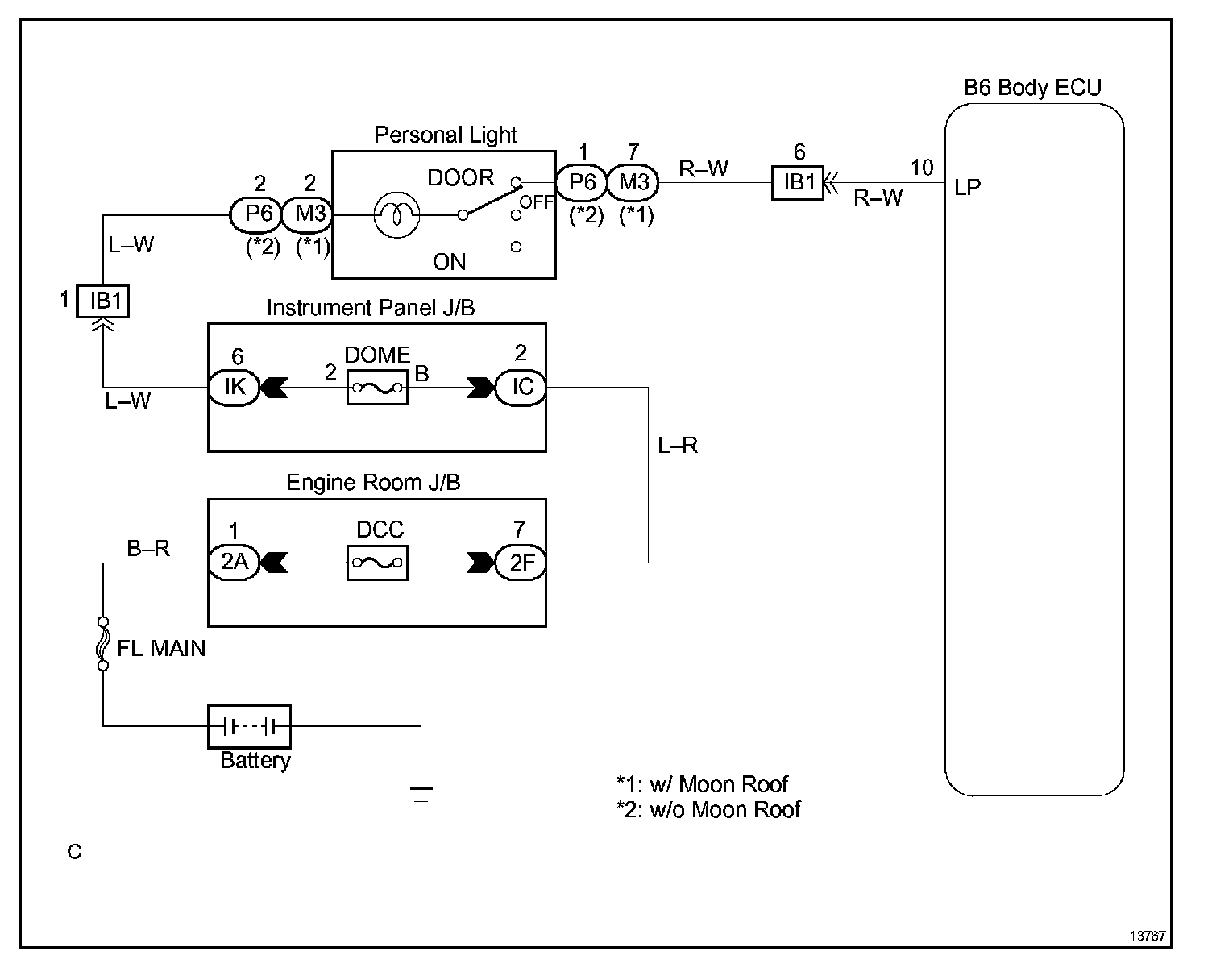

Wiring Diagram:
Step 1 - 3:

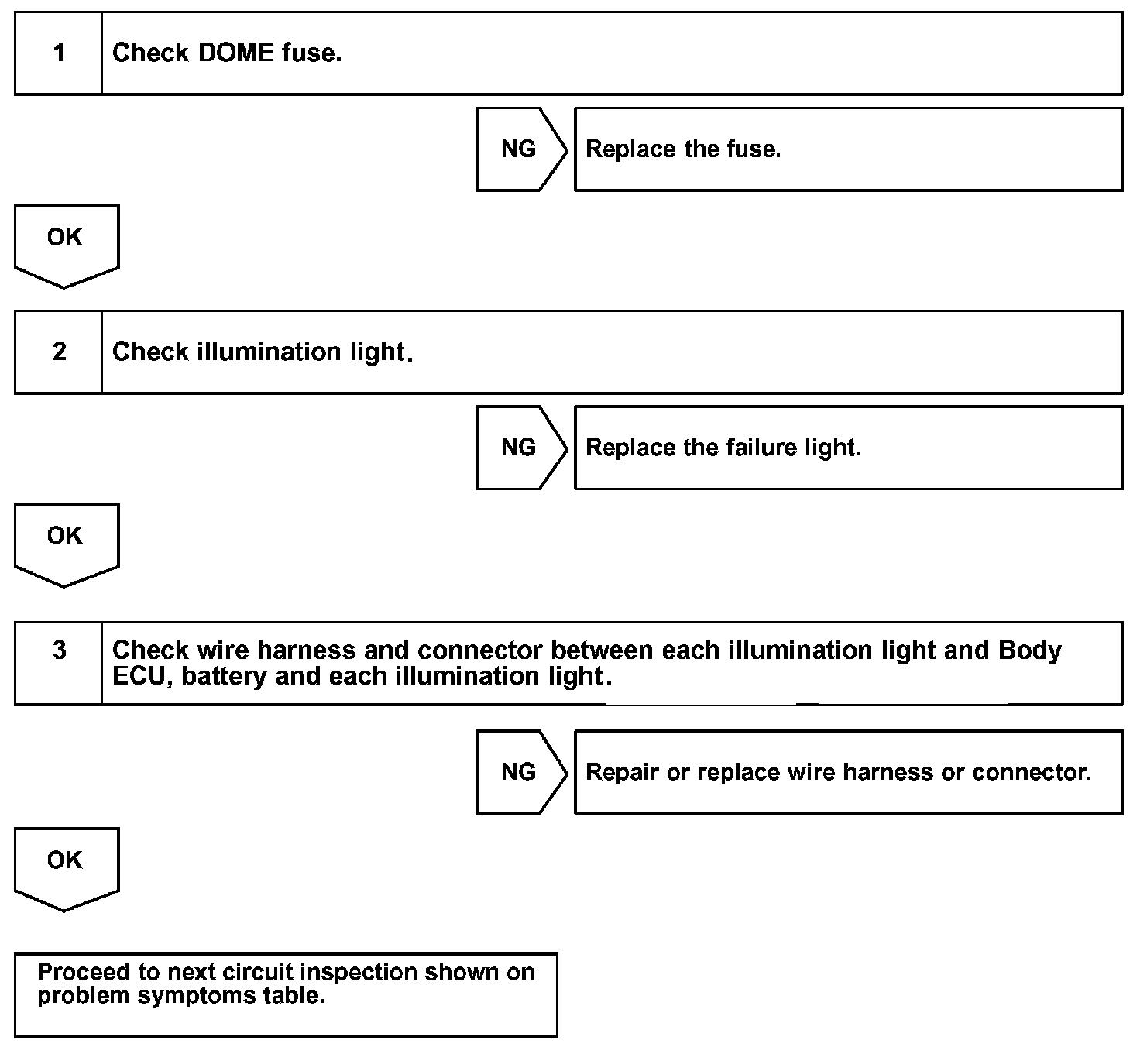

INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
Receiving the courtesy signal from the Body ECU will make the interior light, the ignition light and the courtesy light to come on.
INSPECTION PROCEDURE
