Light Control Switch Circuit

LIGHT CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects the state of the light control switch.

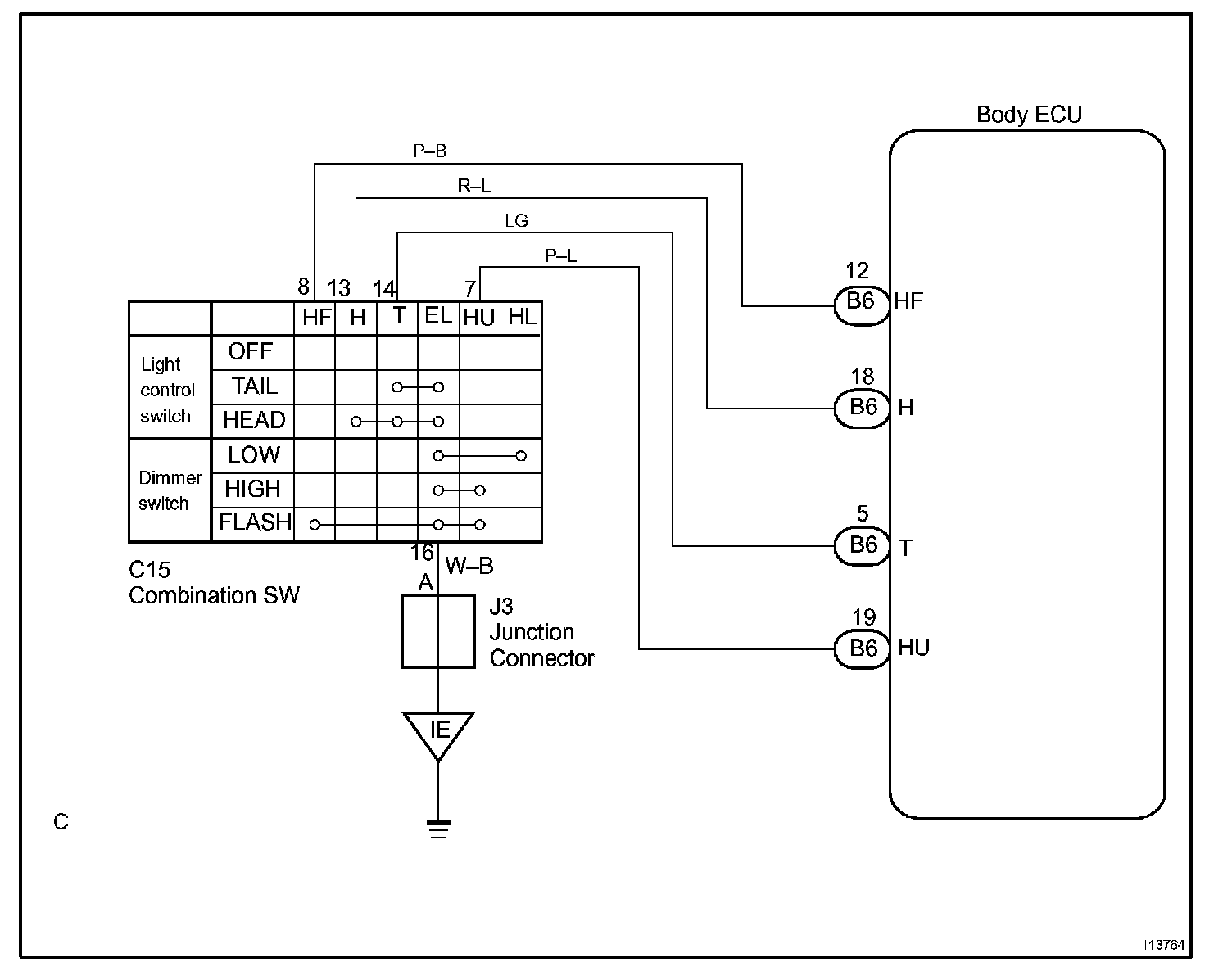

Wiring Diagram:

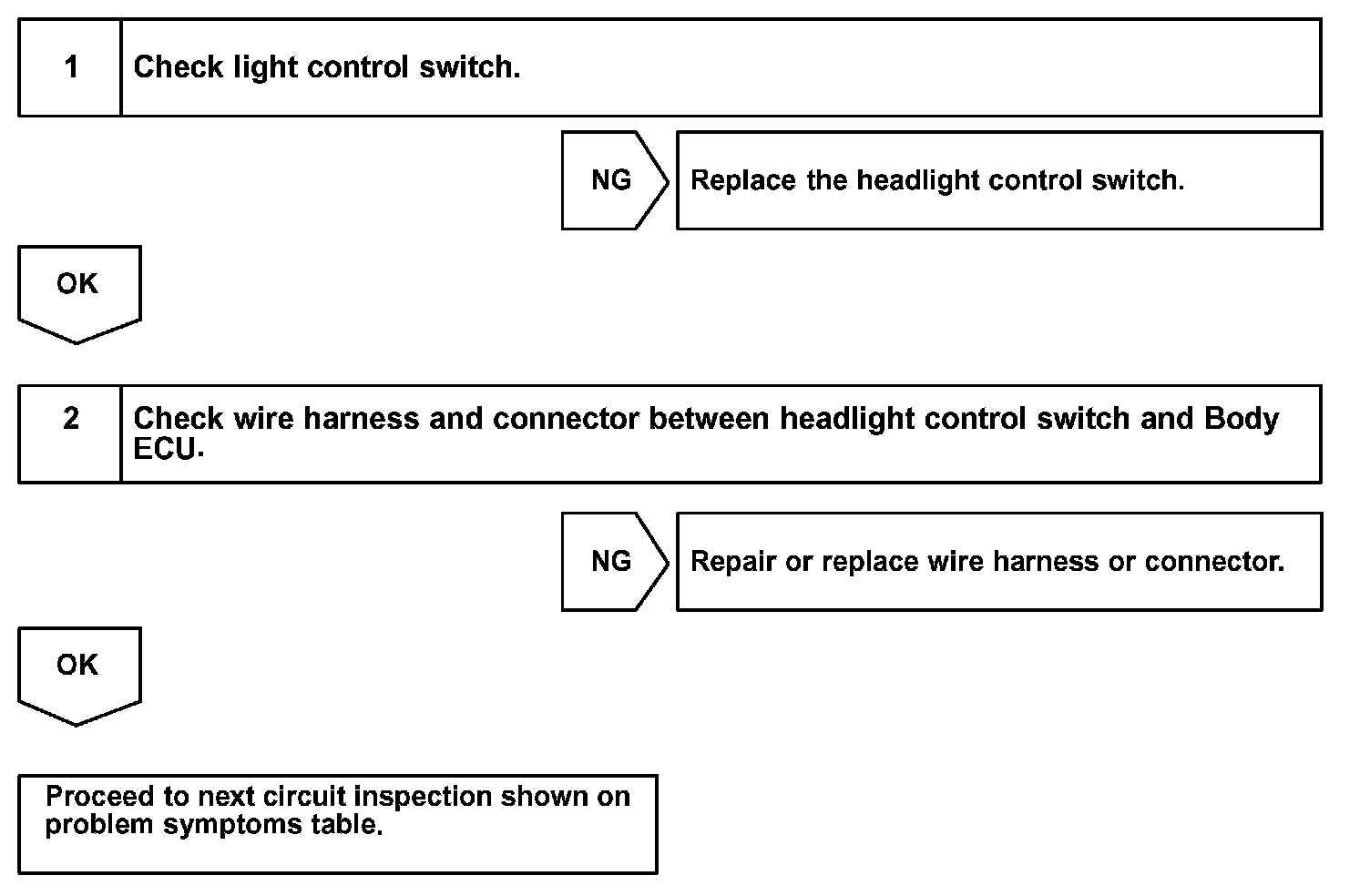

Step 1 - 2:




INSPECTION PROCEDURE
