O/D Main Switch Circuit

O/D MAIN SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The body ECU detects the state of O/D main switch.

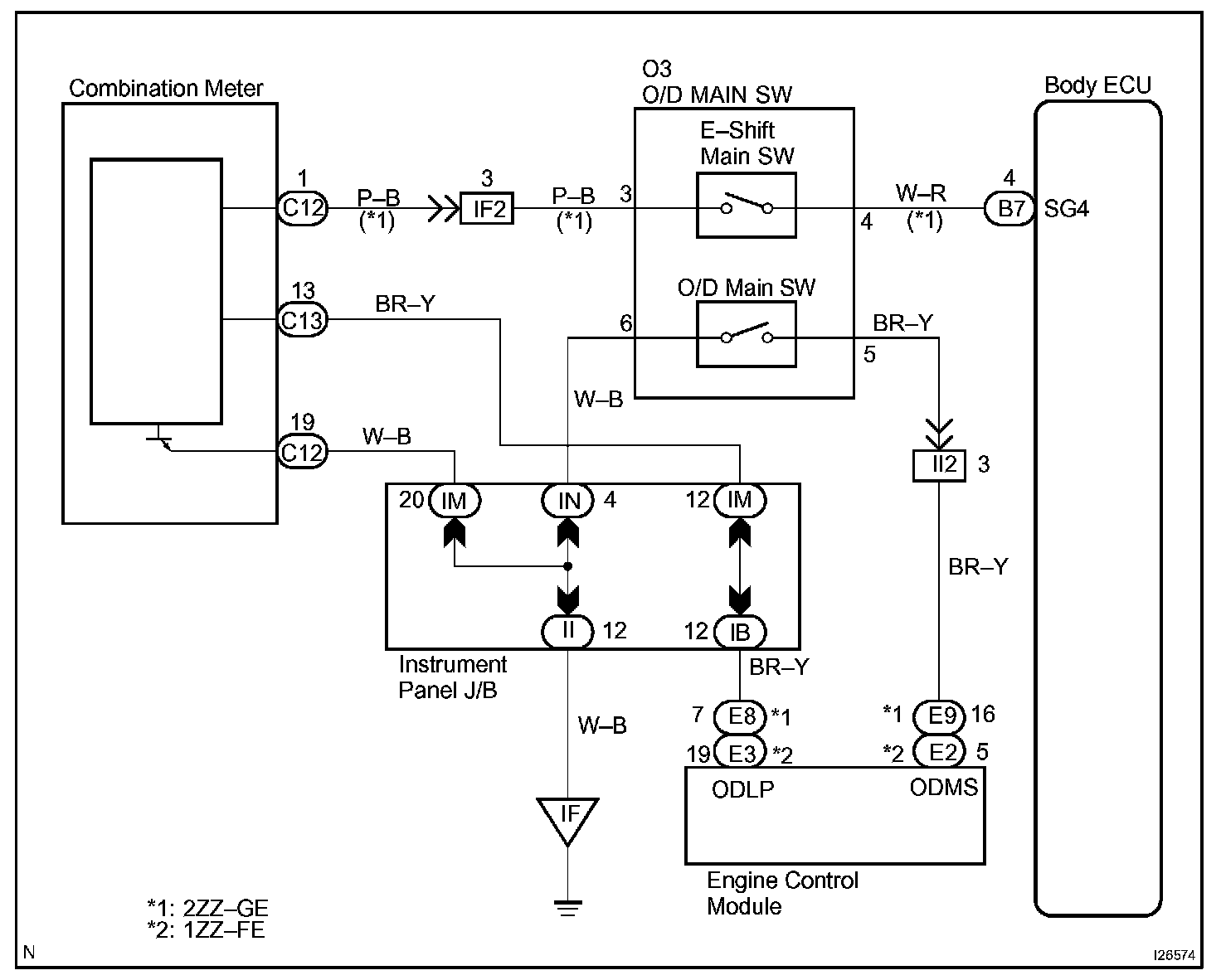

Wiring Diagram:

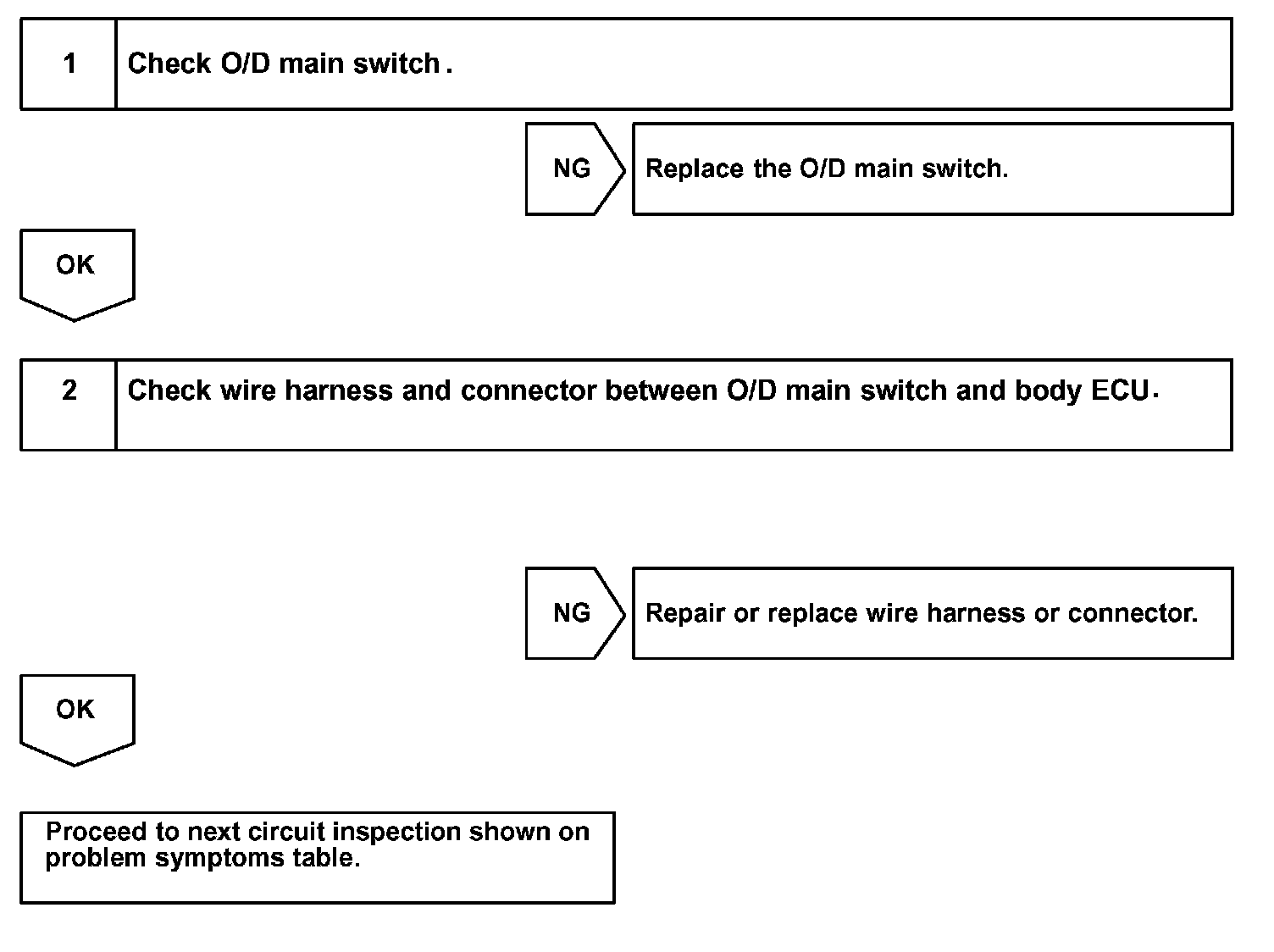

Step 1 - 2:




INSPECTION PROCEDURE
