Parking Brake Switch Circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects the state of the parking brake switch.

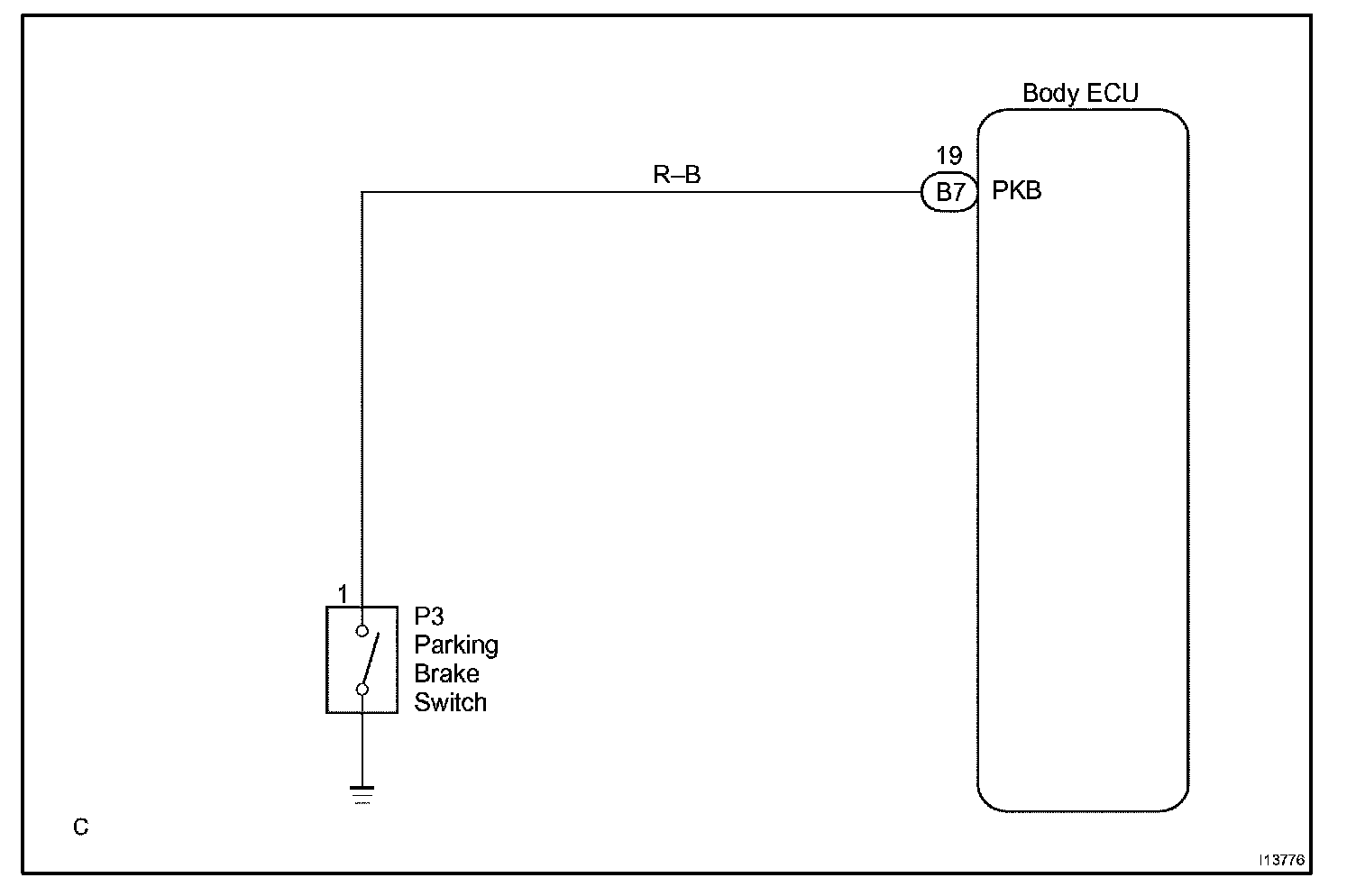

Wiring Diagram:

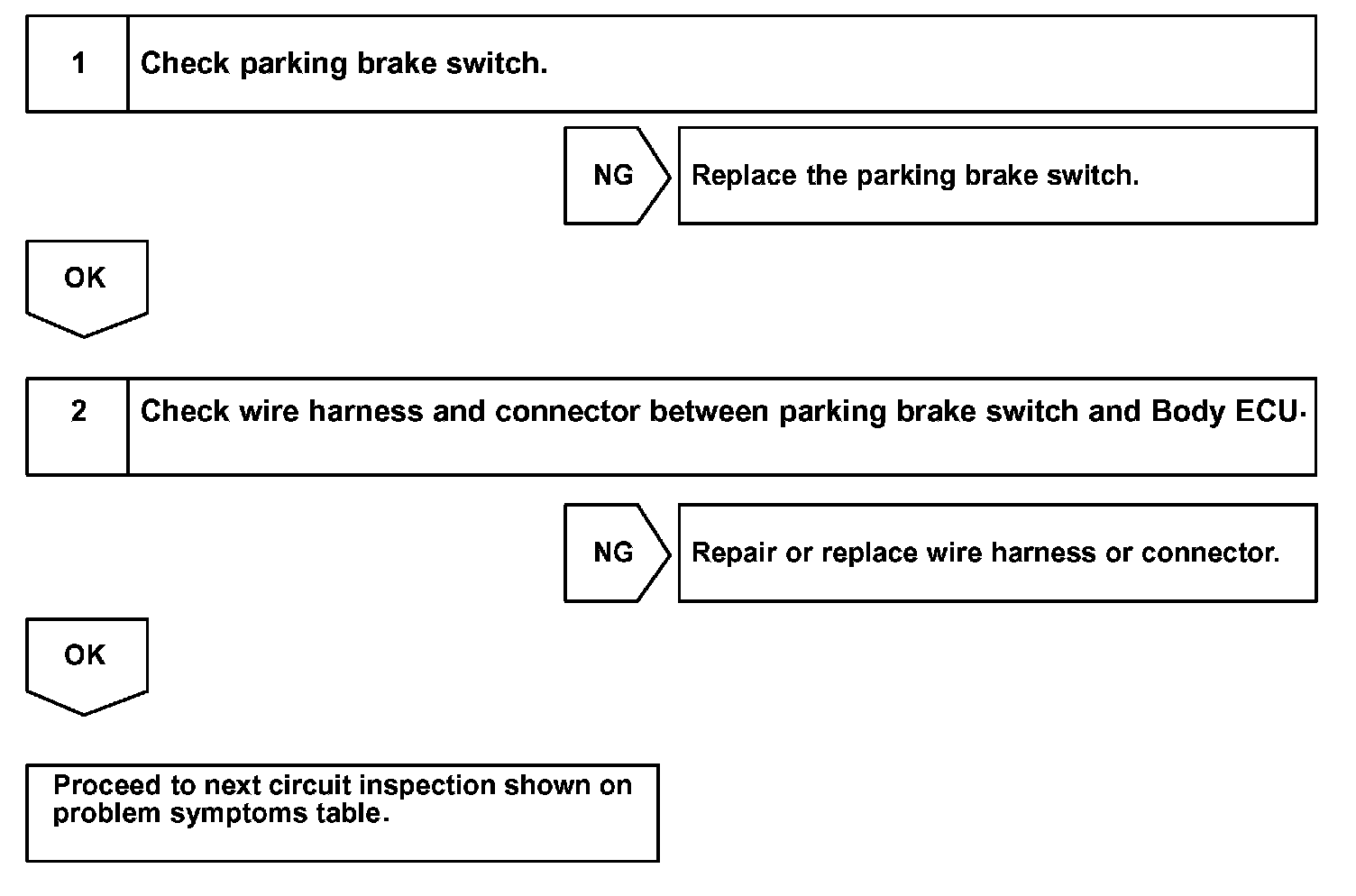

Step 1 - 2:




INSPECTION PROCEDURE
