Pinout Values and Diagnostic Parameters

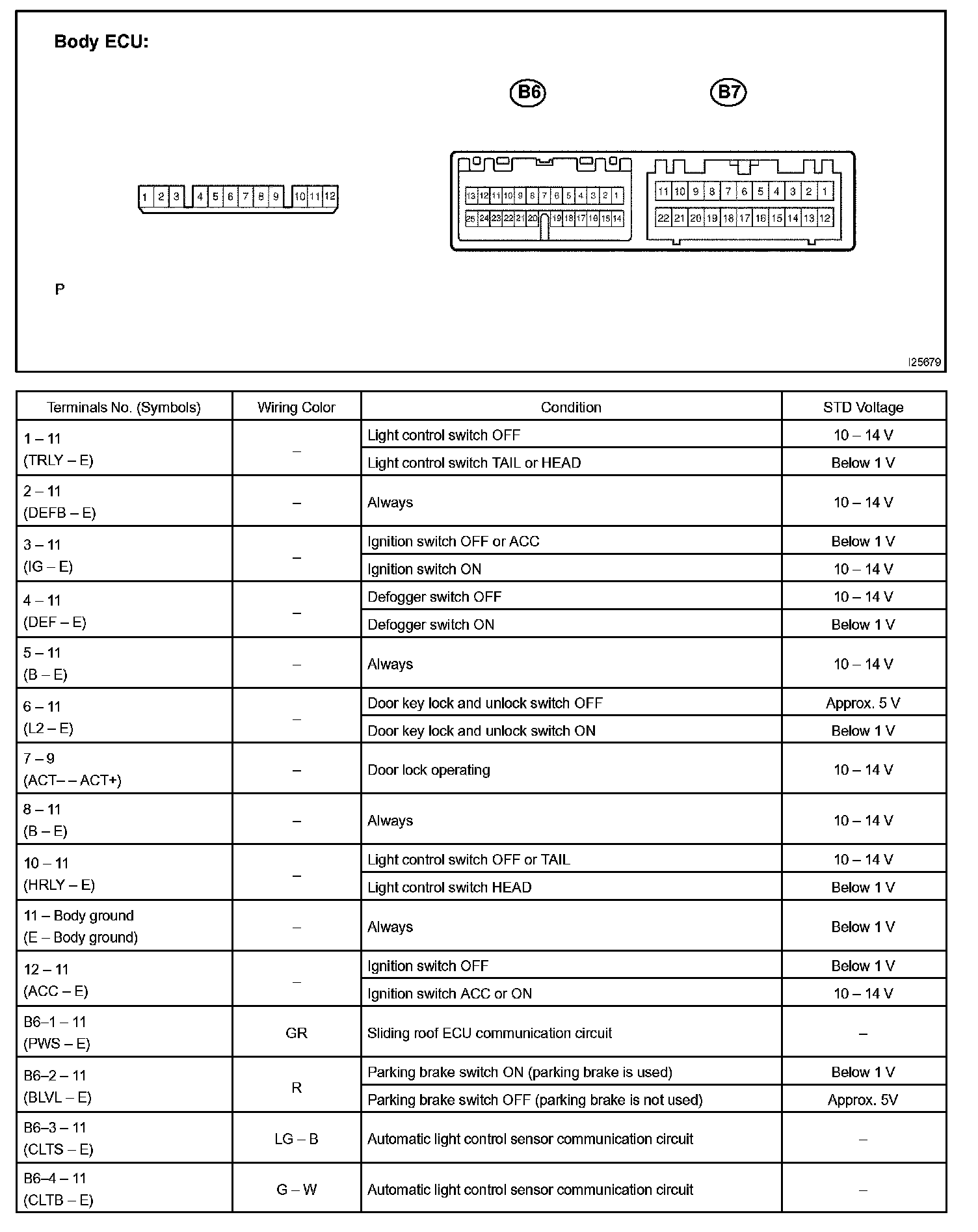

Terminals Of ECU/Pinout Part 1:

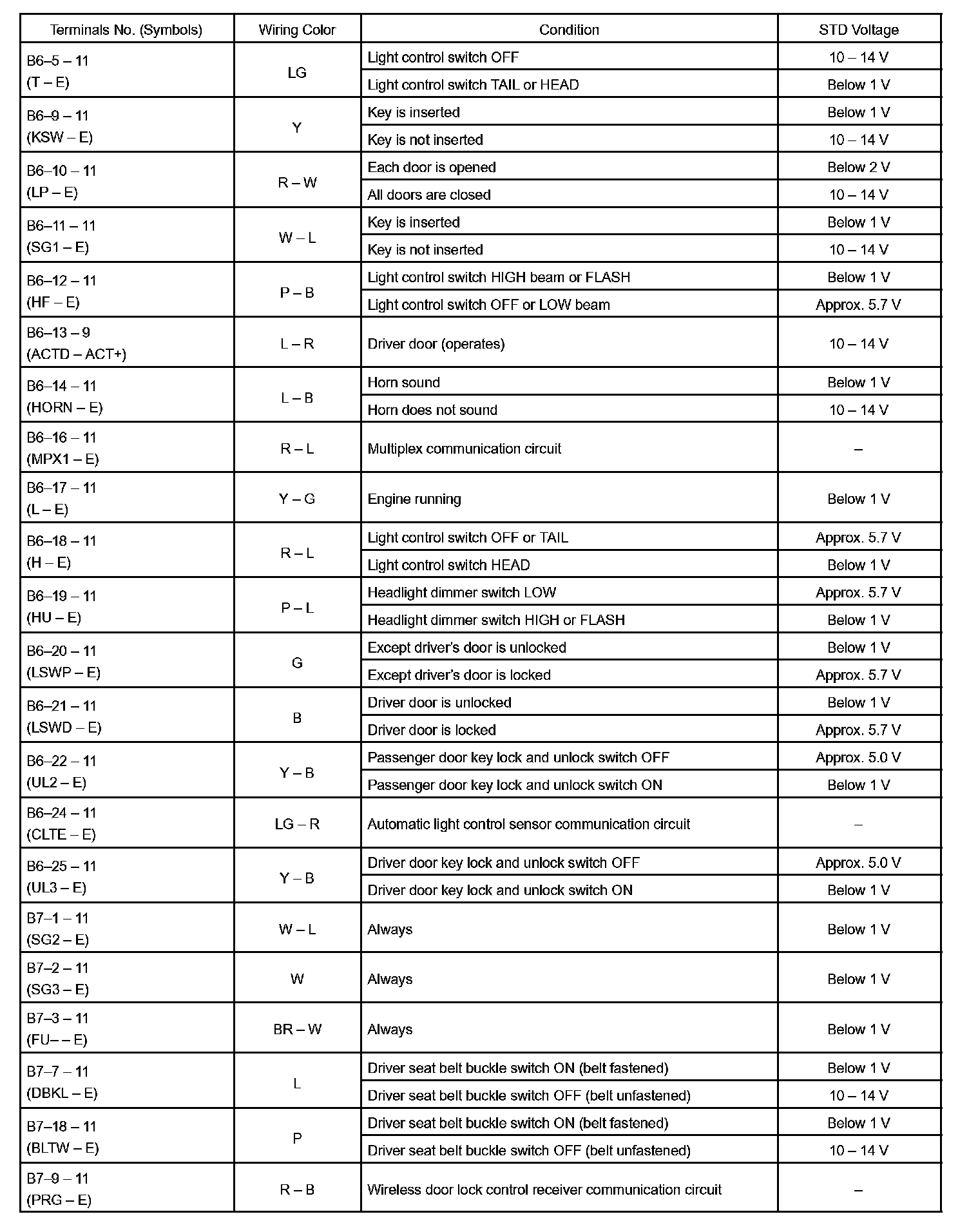

Terminals Of ECU/Pinout Part 2:

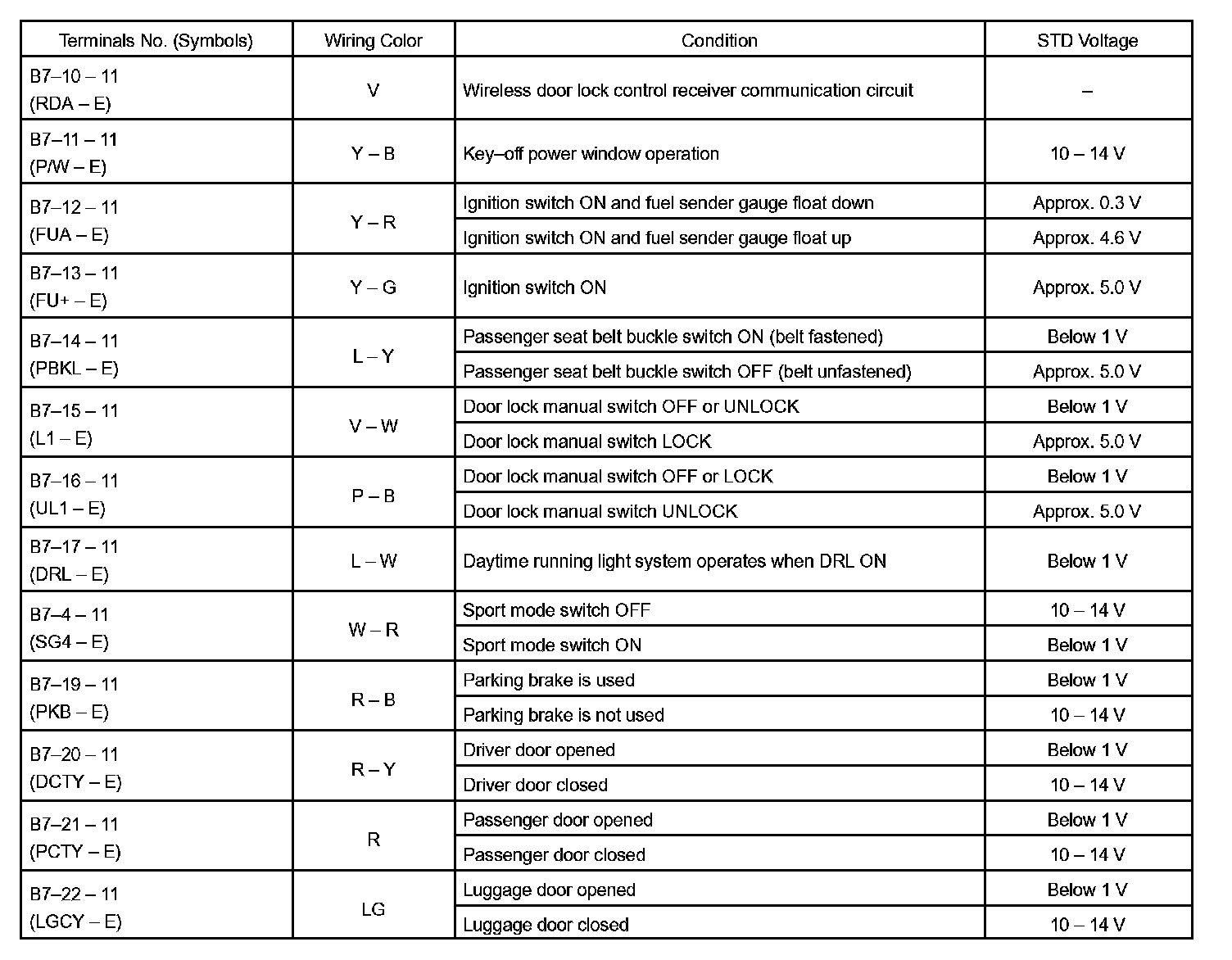

Terminals Of ECU/Pinout Part 3:
