Front Fender Apron (Assembly)

FRONT FENDER APRON (ASSEMBLY)

REPLACEMENT




1. REMOVE COWL TOP SIDE PANEL

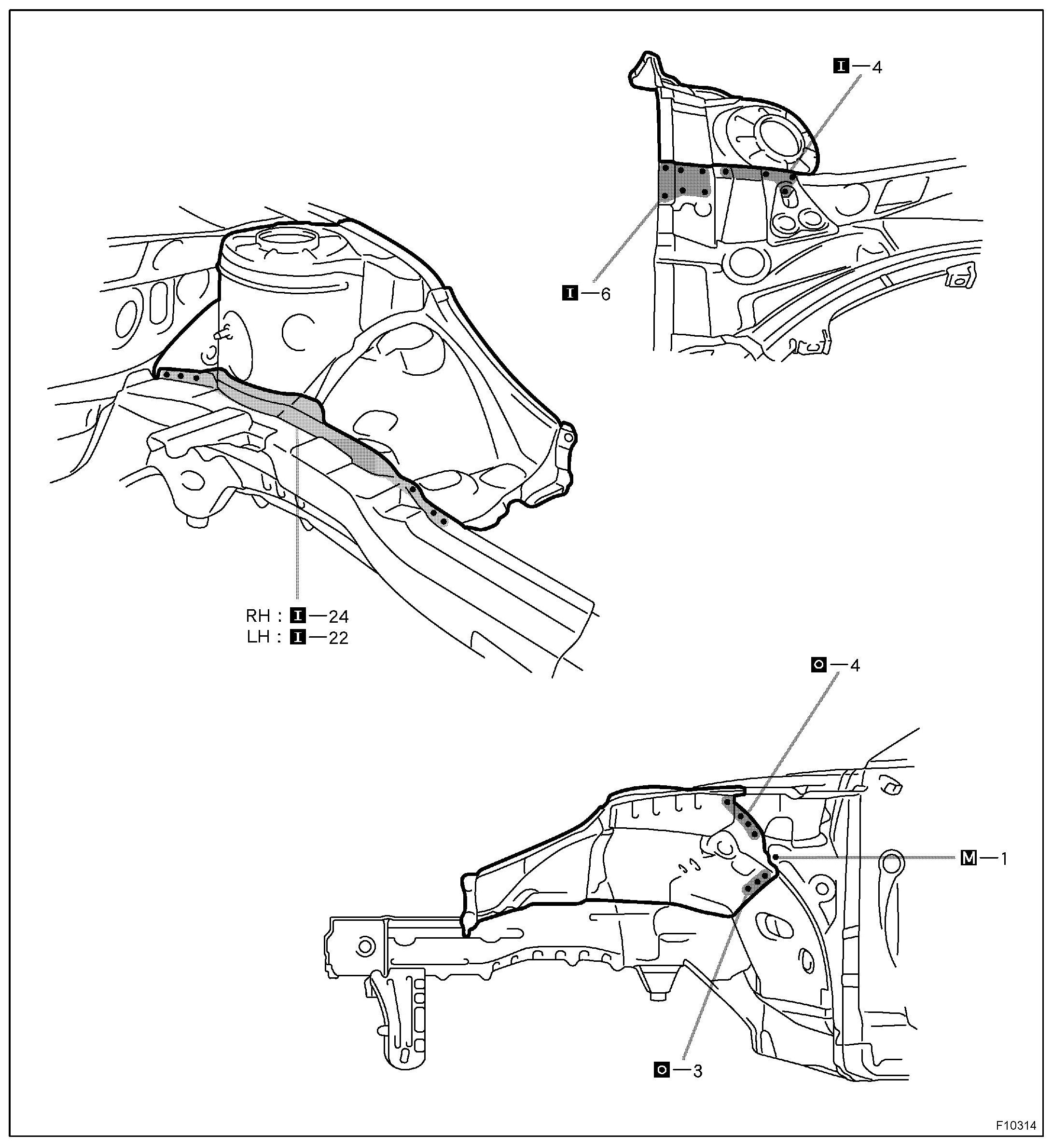

2. REMOVE FRONT FENDER APRON

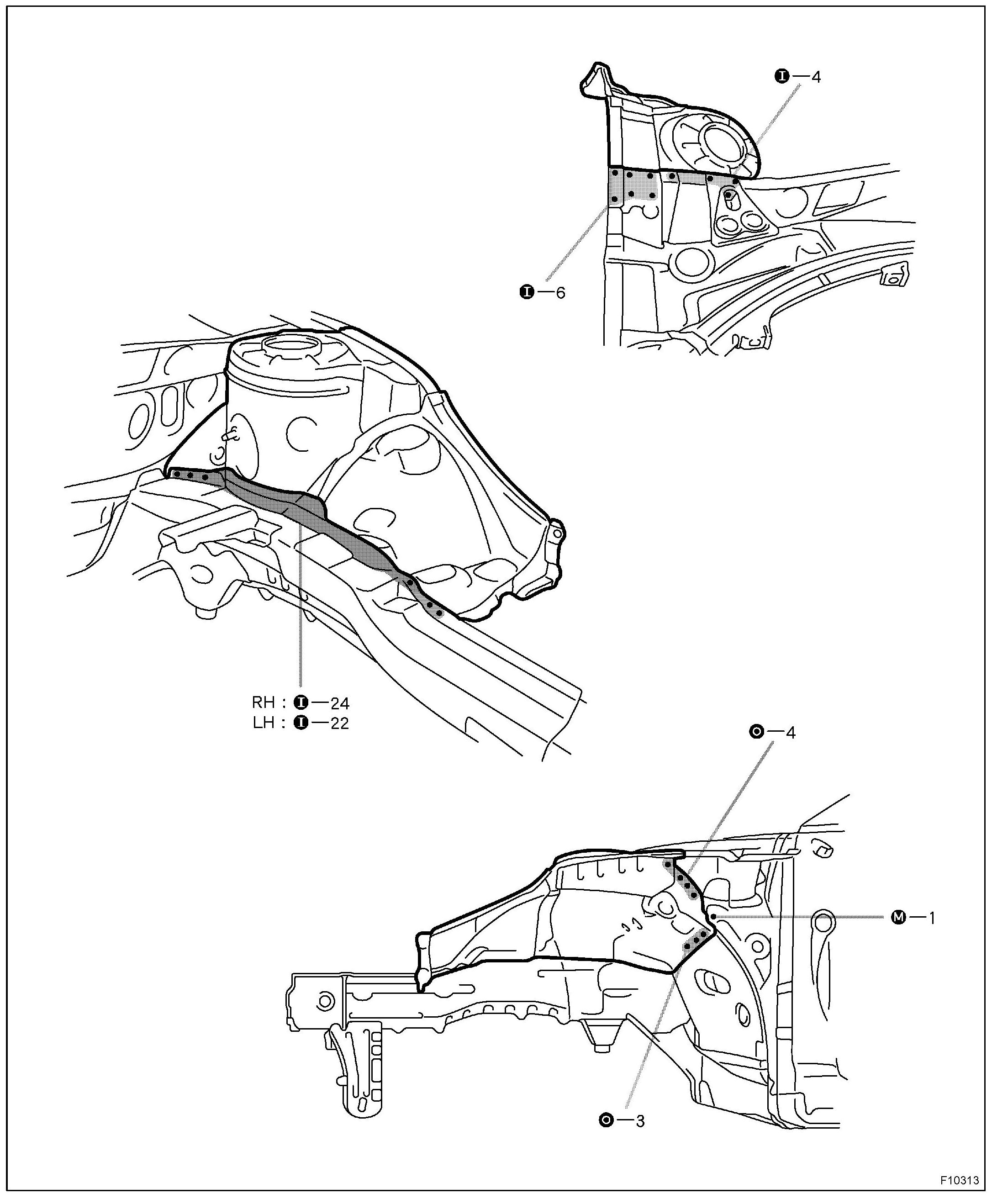

3. INSTALL FRONT FENDER APRON

HINT: Inspect the fitting of the front fender and hood, etc. before welding, since this affects the appearance of the finish.




a. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.

HINT: Make sure each measurement is correct, as this parts affects the front wheel alignment.

4. MEASURING THE ENGINE COMPARTMENT DIMENSIONS
5. INSTALL COWL TOP SIDE PANEL
6. APPLYING SEALER TO THE ENGINE COMPARTMENT
7. APPLYING SEALER TO THE INSIDE OF THE VEHICLE
8. APPLYING UNDER COATING
9. APPLYING ANTI-RUST AGENT
a. After applying the top coat layer, apply the anti-rust agent to the inside of the necked section structural weld spots.
