Tc Terminal Circuit

TC TERMINAL CIRCUIT

CIRCUIT DESCRIPTION
Connecting between terminal TC and CG of the DLC3 causes the ECU to display DTC by flashing the ABS warning light.

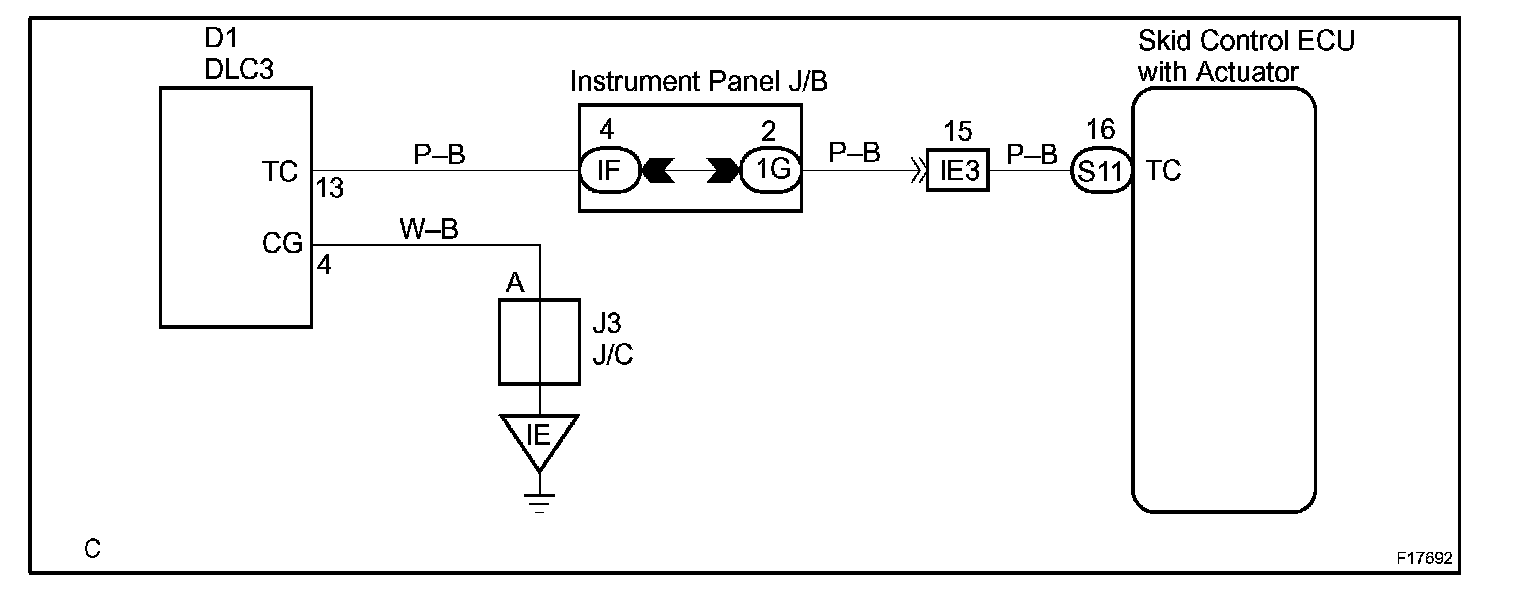

Wiring Diagram:

Step 1:

Step 2 - 3:

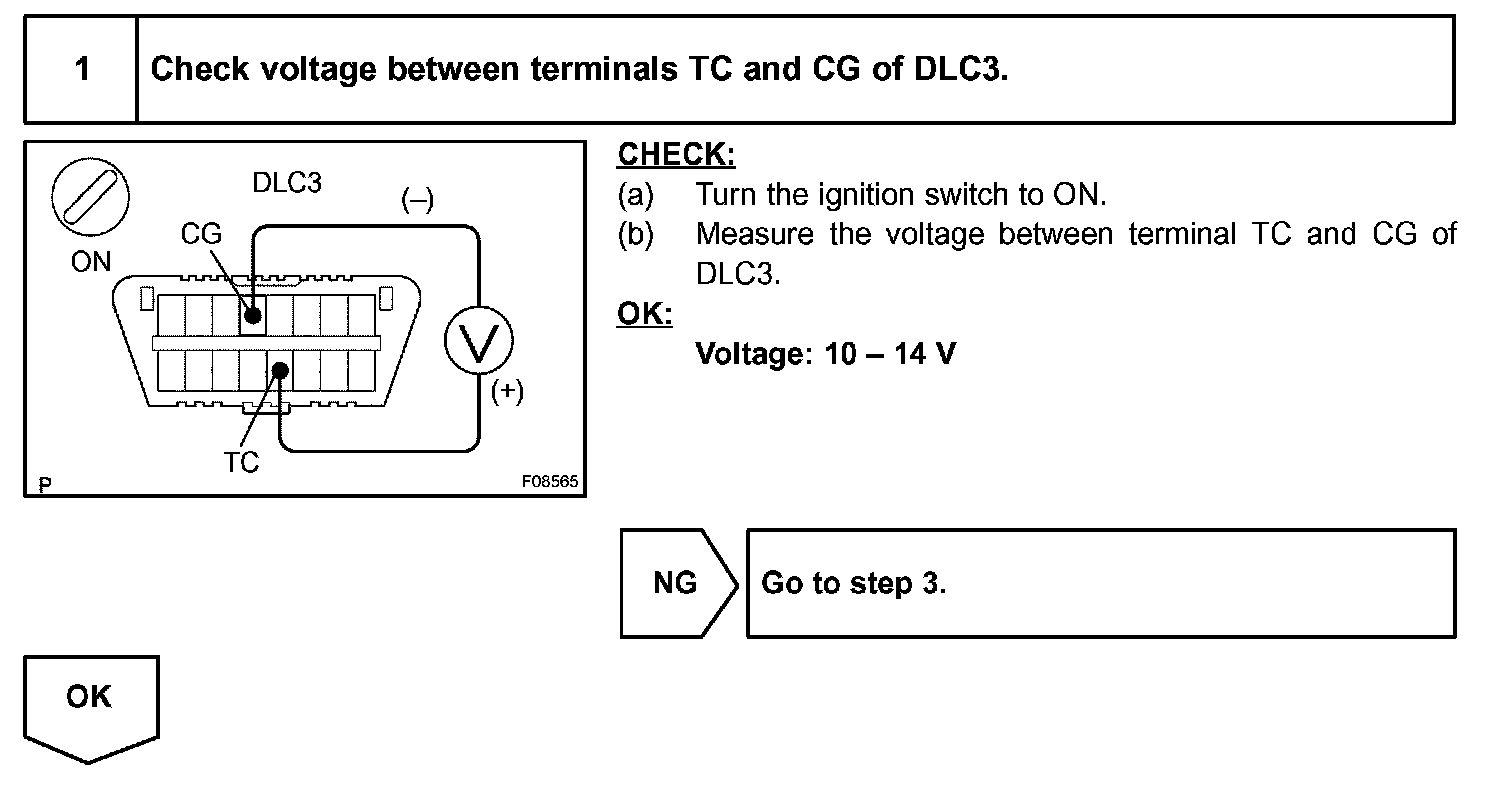

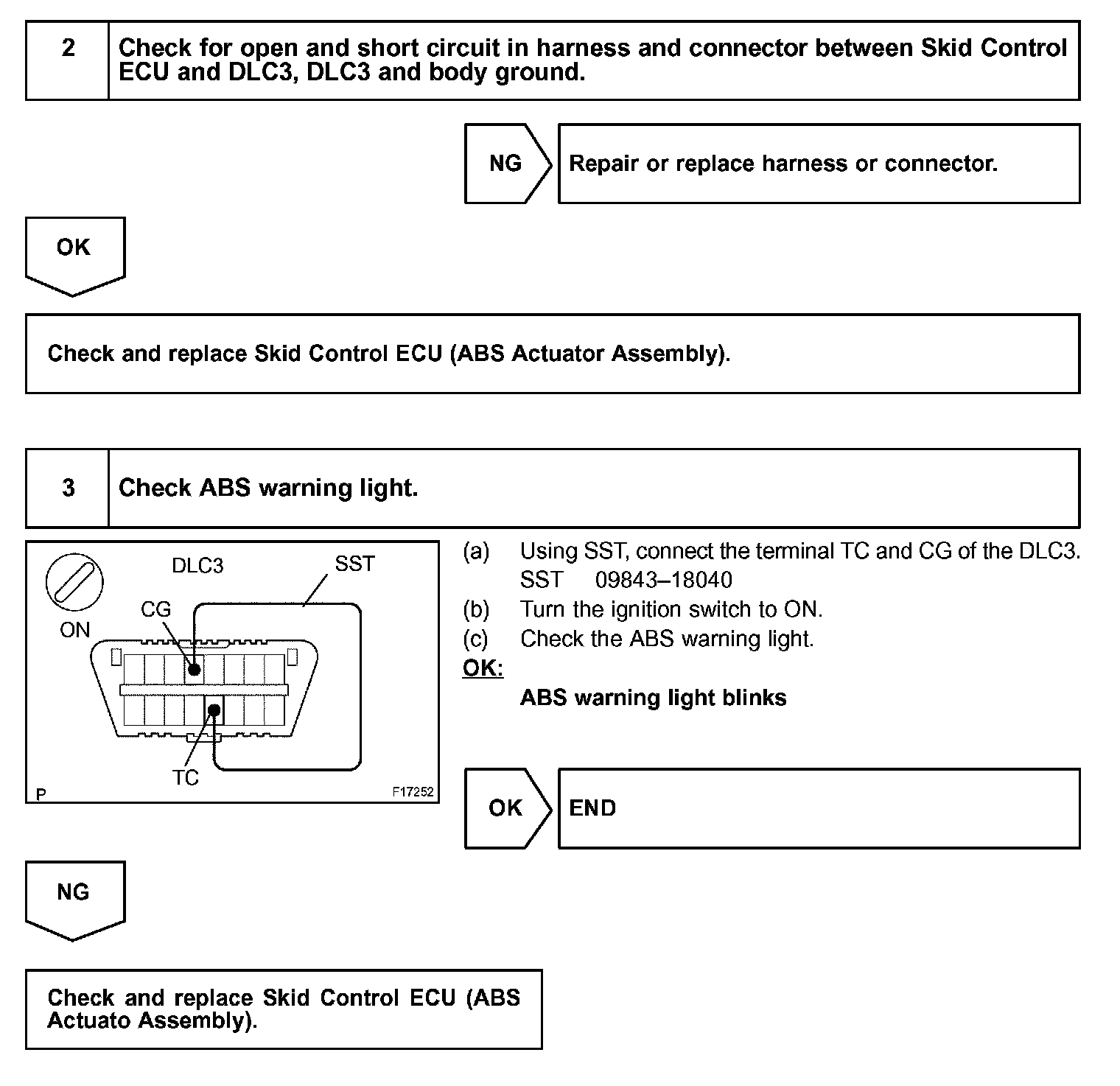

INSPECTION PROCEDURE
