Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.

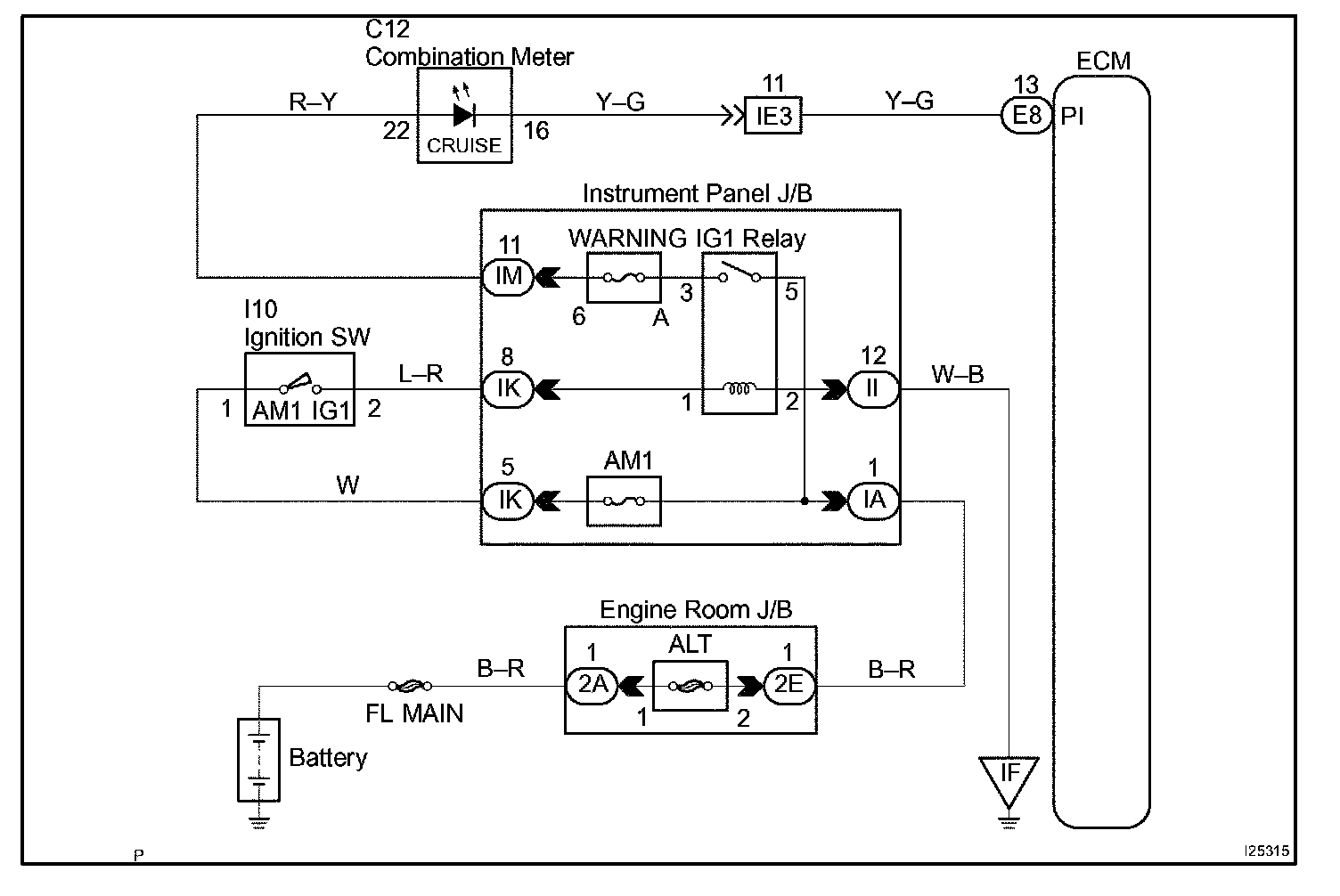

Wiring Diagram:






Step 1 - 2:

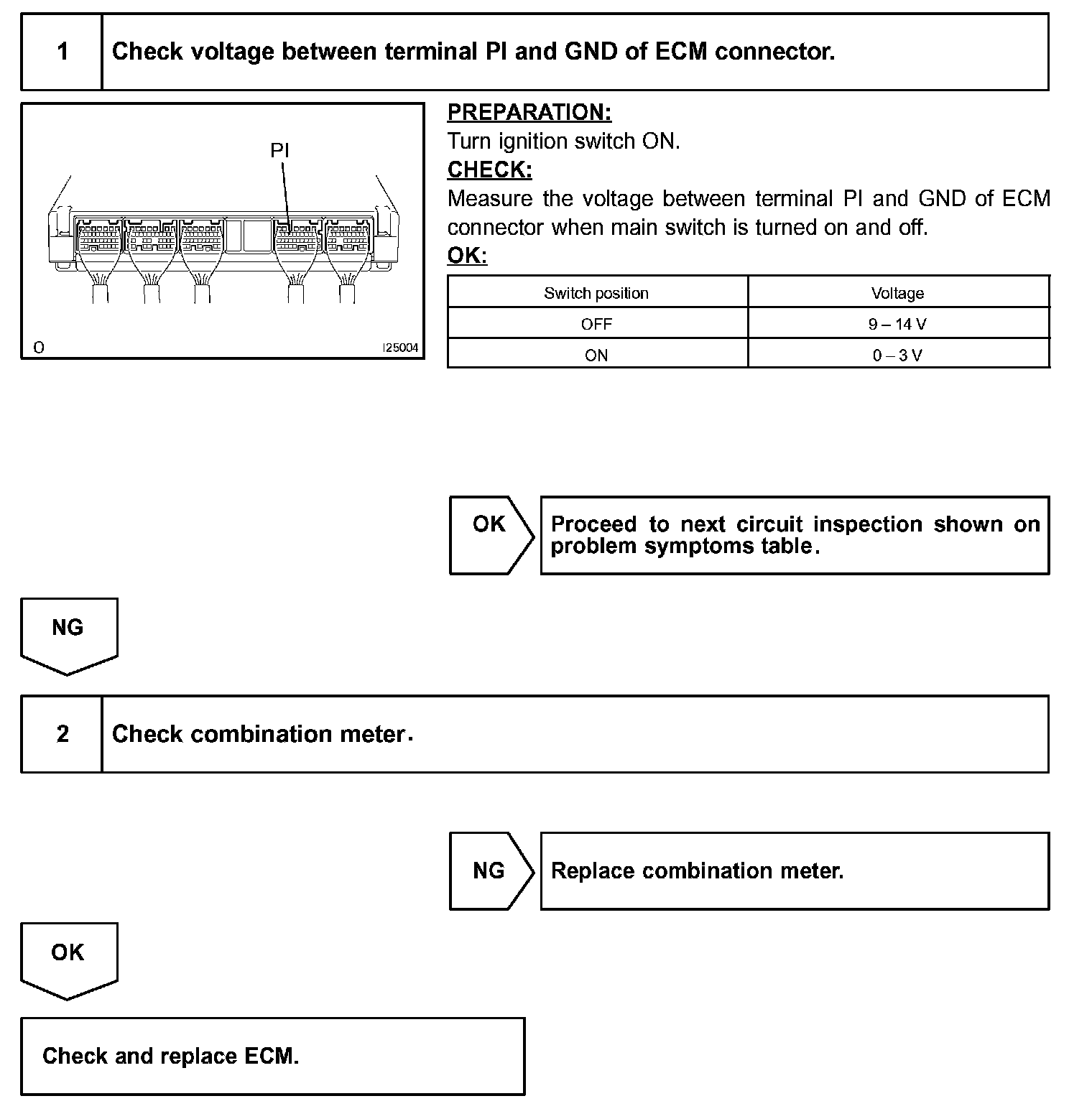

INSPECTION PROCEDURE
