Diagnosis Circuit

CIRCUIT DESCRIPTION
This circuit operates when conducting the DTC check.

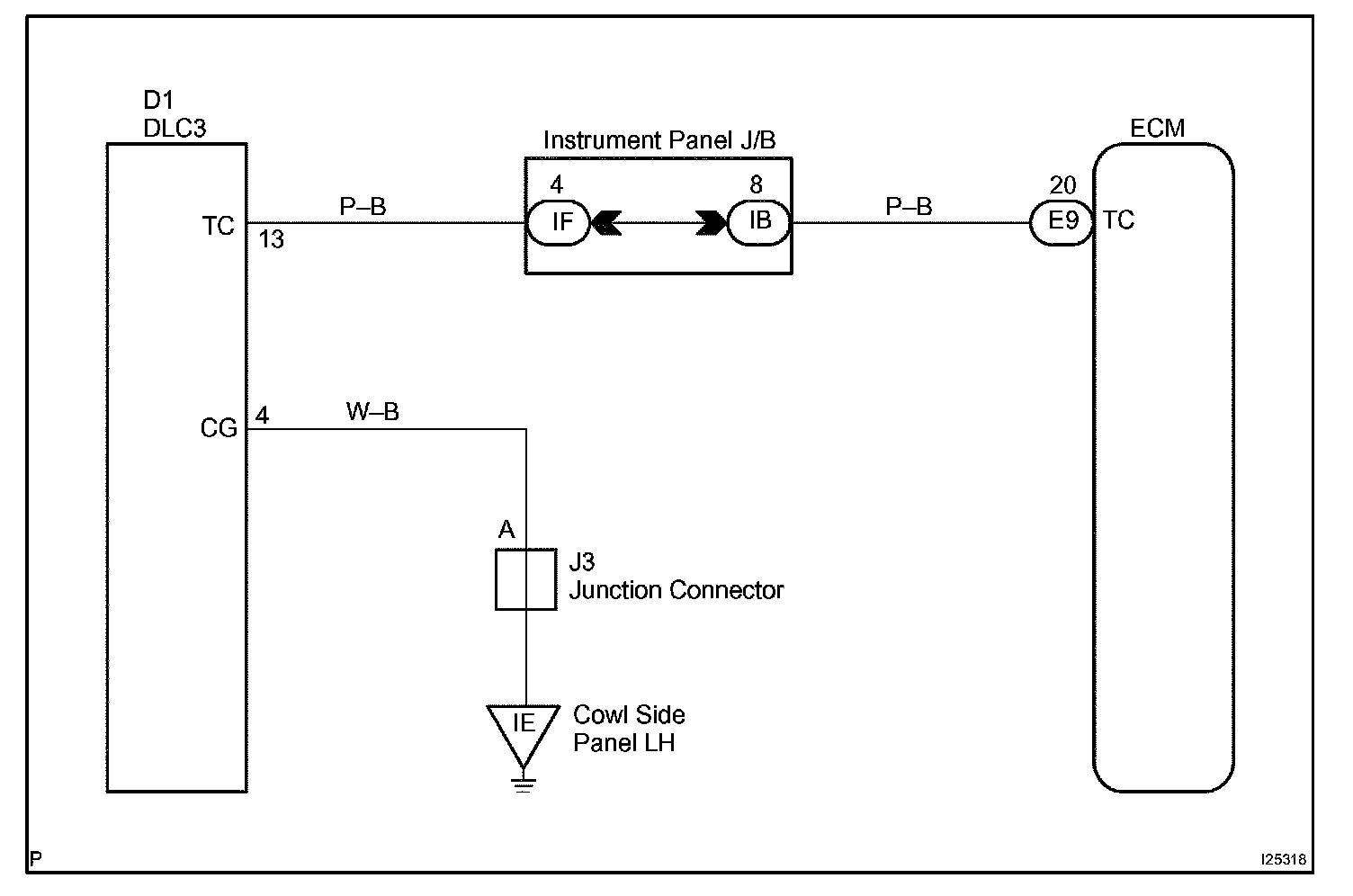

Wiring Diagram:

Step 1 - 2:

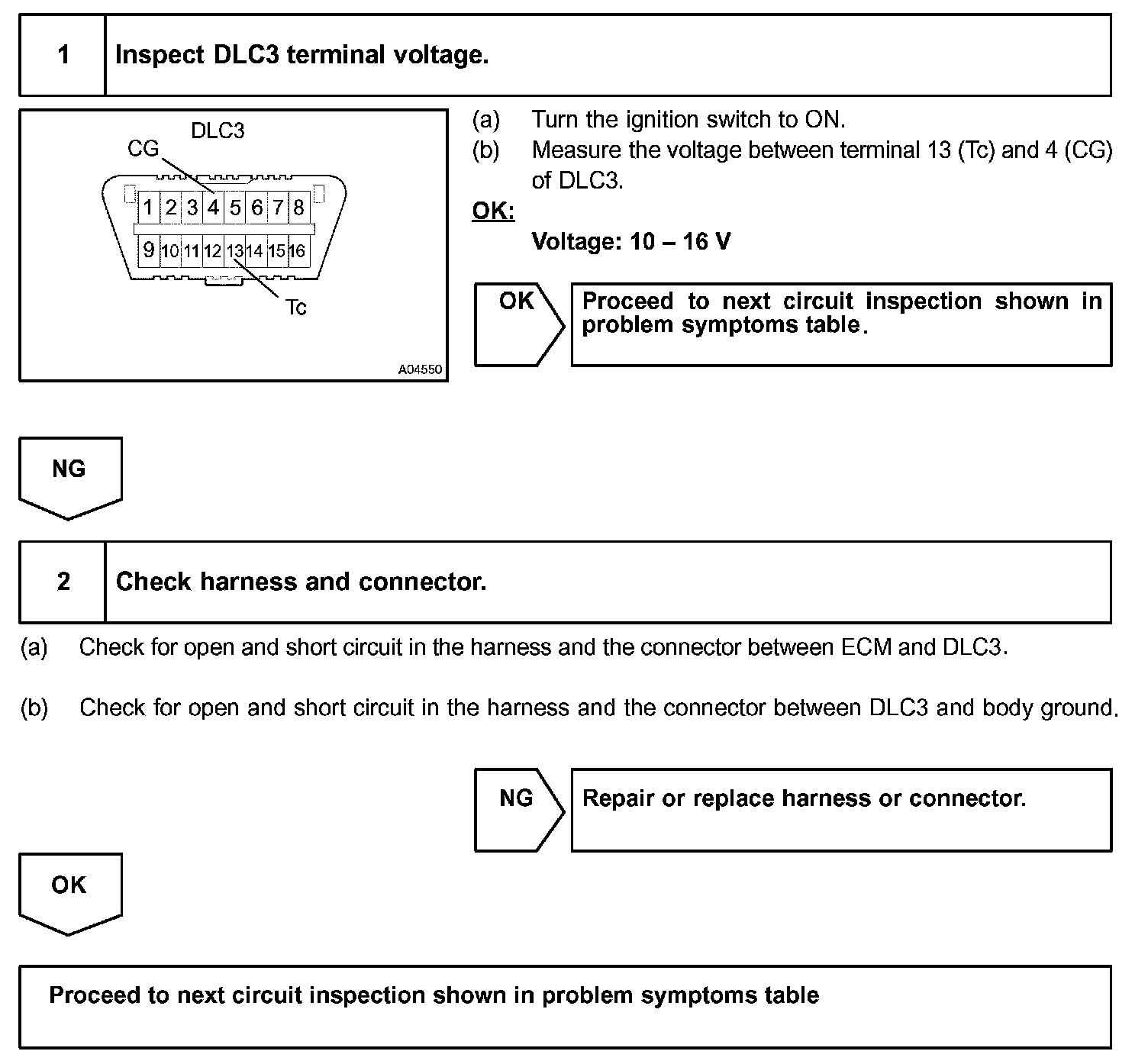

INSPECTION PROCEDURE
