Data List

DATA LIST

HINT: By using the DATA LIST displayed by the hand-held tester, you can read the value of the switch, the sensor and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

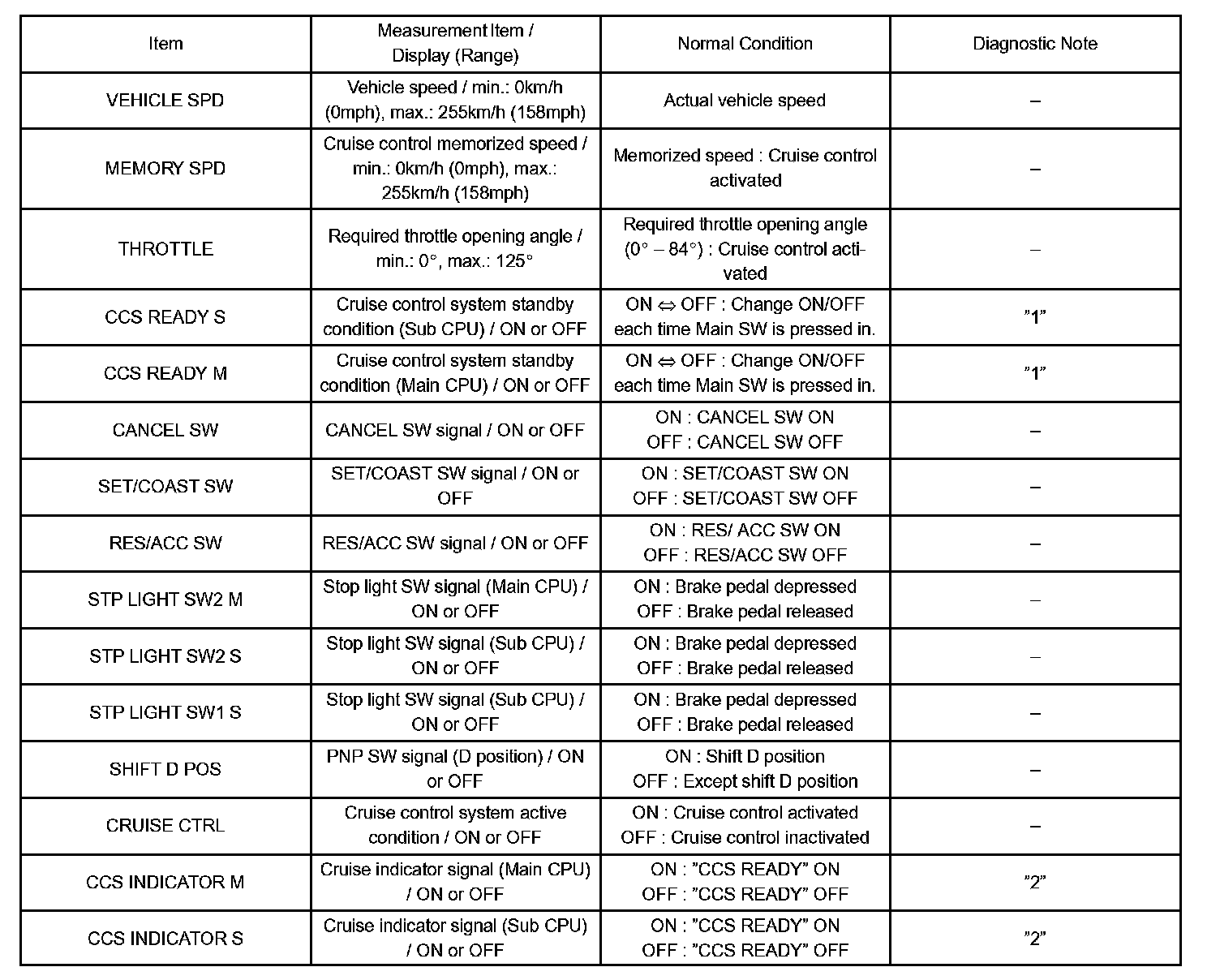

Part 1:

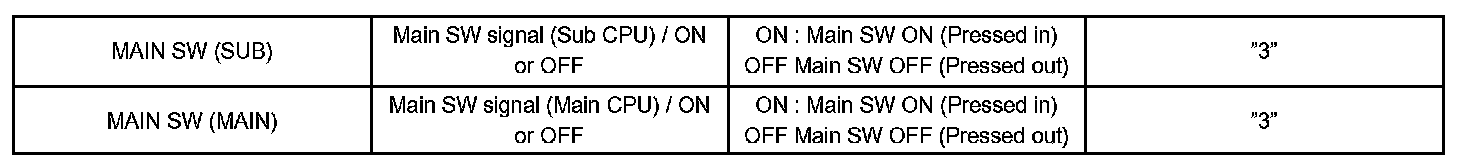

Part 2:

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, read the "DATA LIST".

HINT:
"3" is OK but "1" is NG ->ECM failure
"1" is OK but "2" is NG ->DTC output or ECM failure
"3" is OK but the cruise indicator does not turn on ->Indicator or W/H or ECM failure
