Celica L4-1.8L (2ZZ-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>

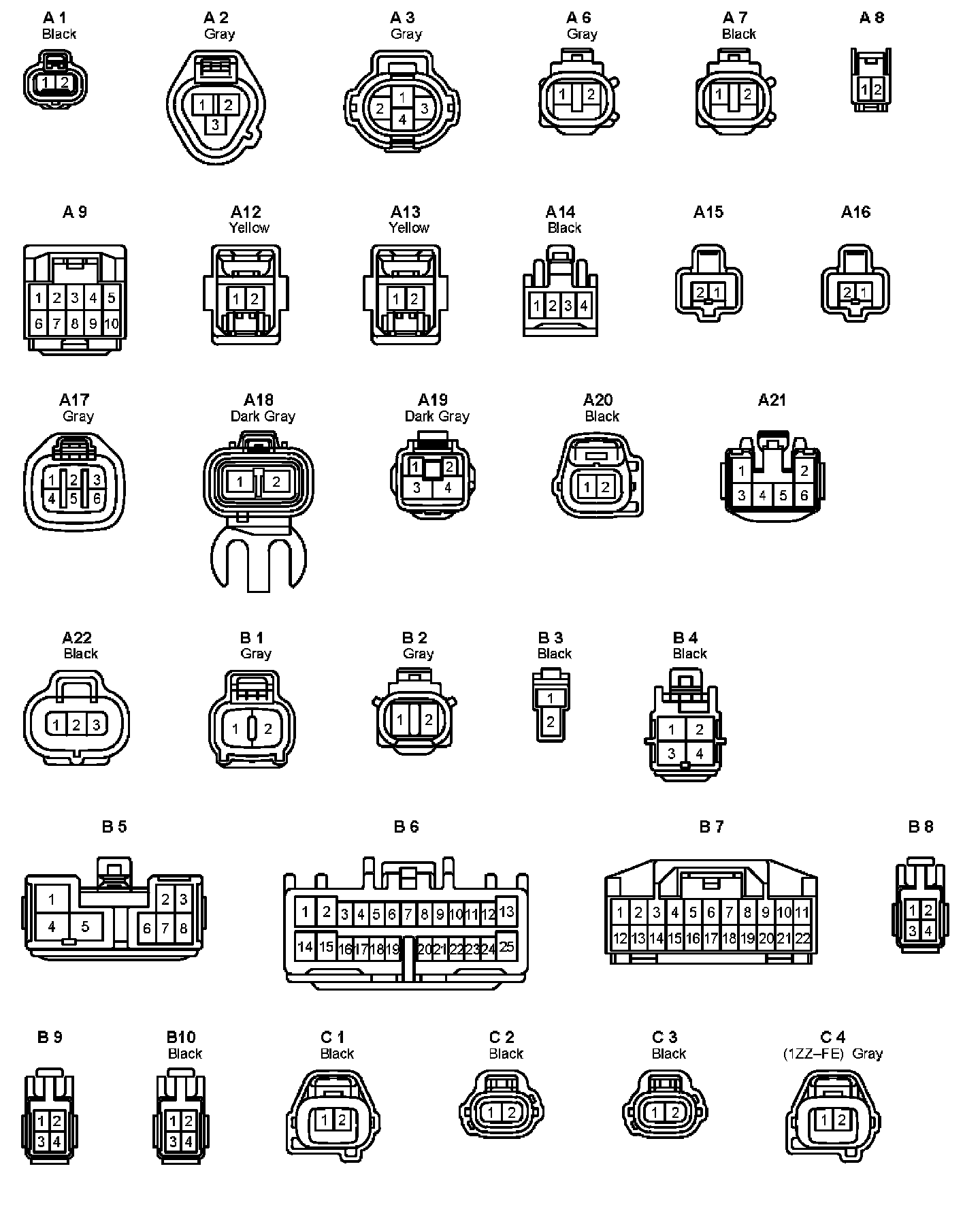

Connector Views
>>
Connector Views By Connector Number
>>
A1 - C4
A1 - C4
A1 - C4:
