Fuse Block

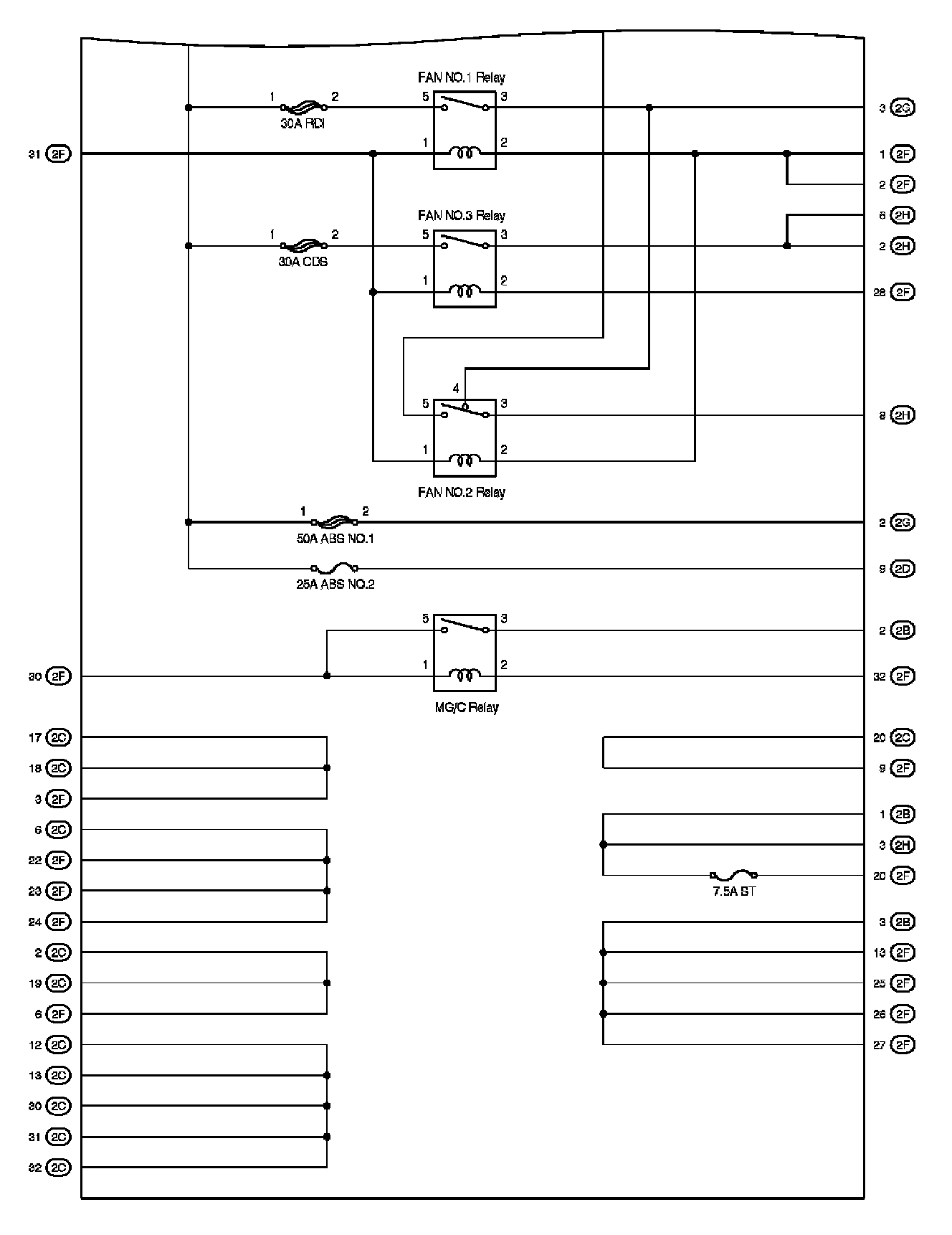

Engine Room J/B Inner Circuit:

Engine Room J/B Inner Circuit:

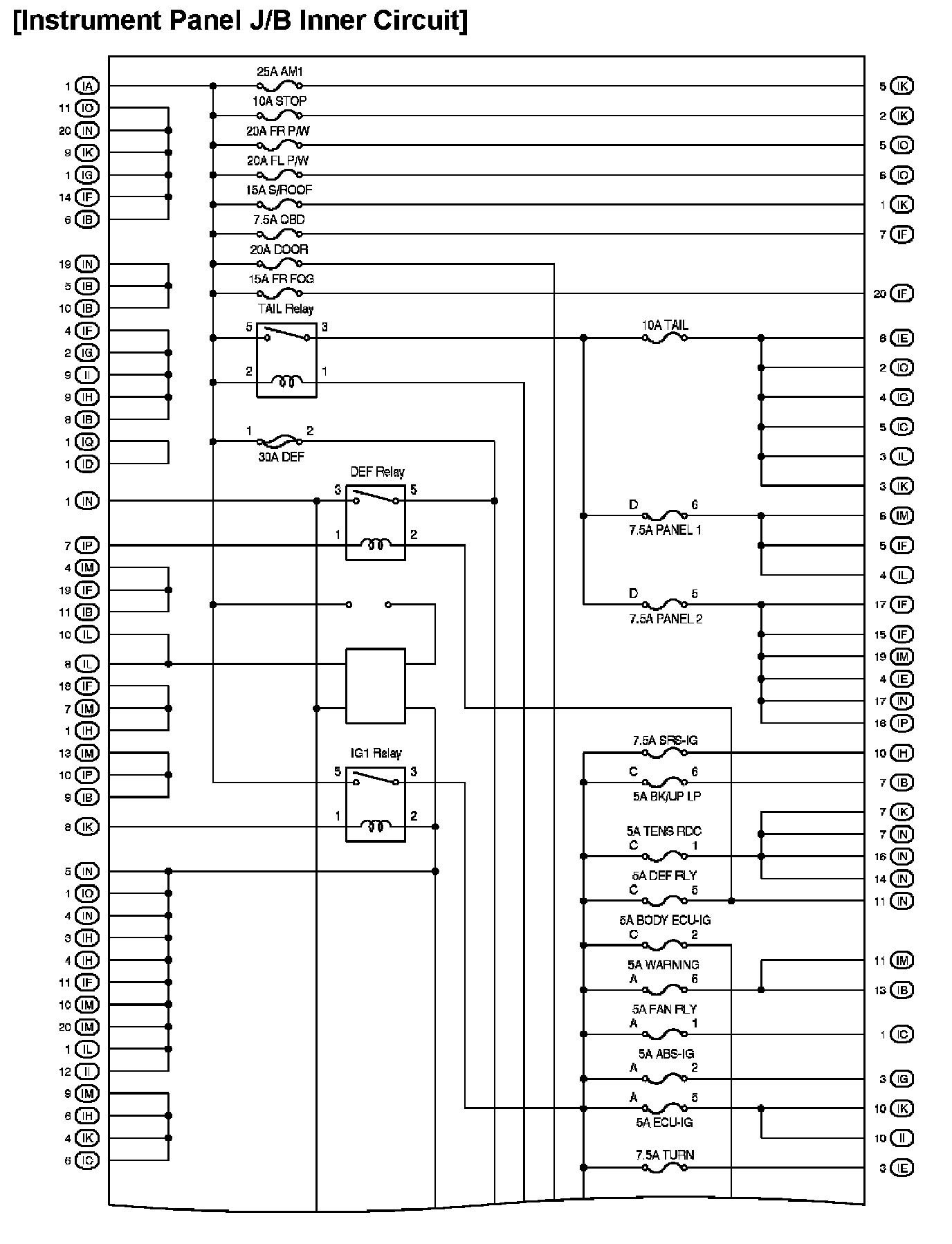

Instrument Panel J/B Inner Circuit:

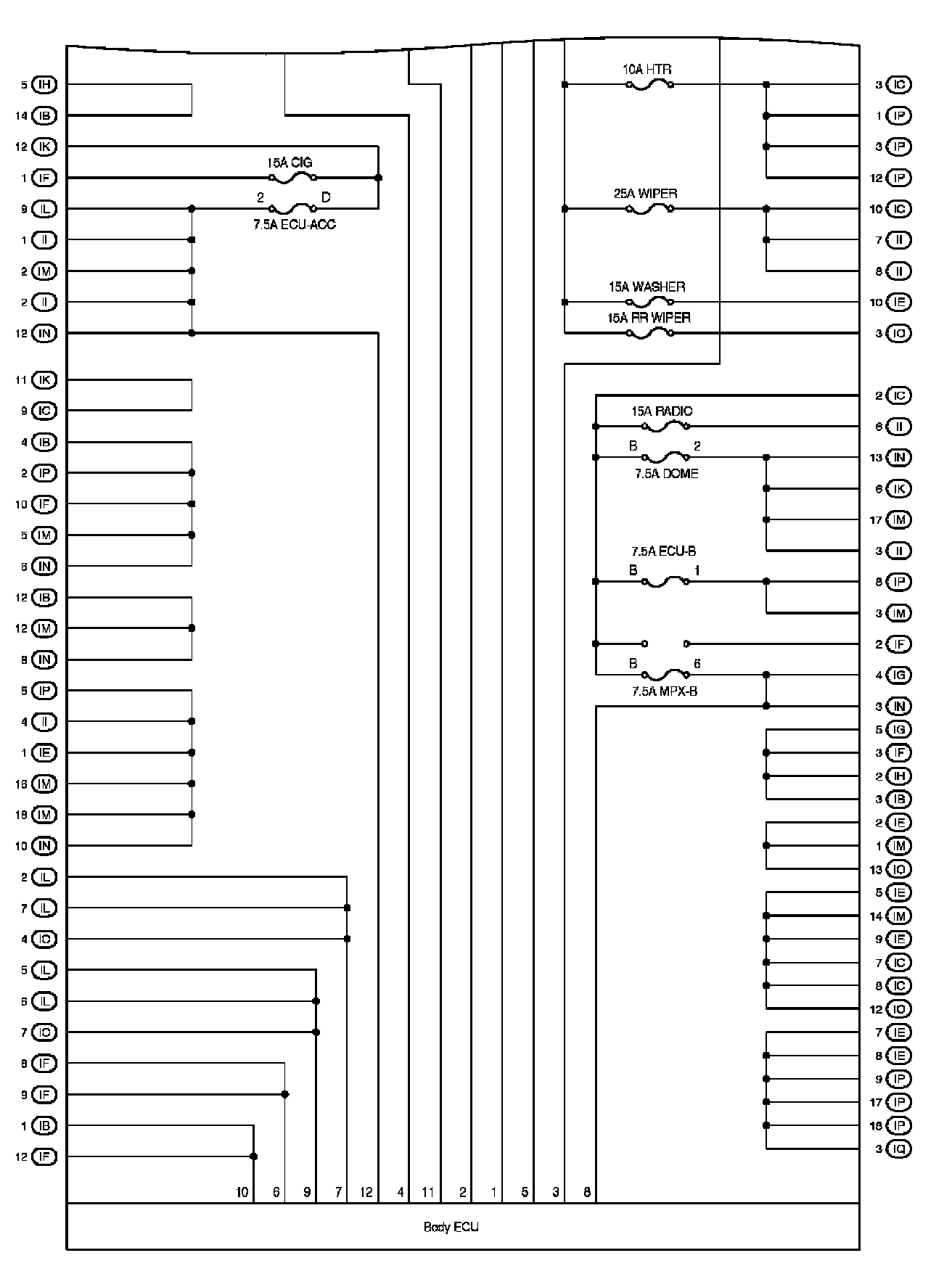

Instrument Panel J/B Inner Circuit:
