Radiator

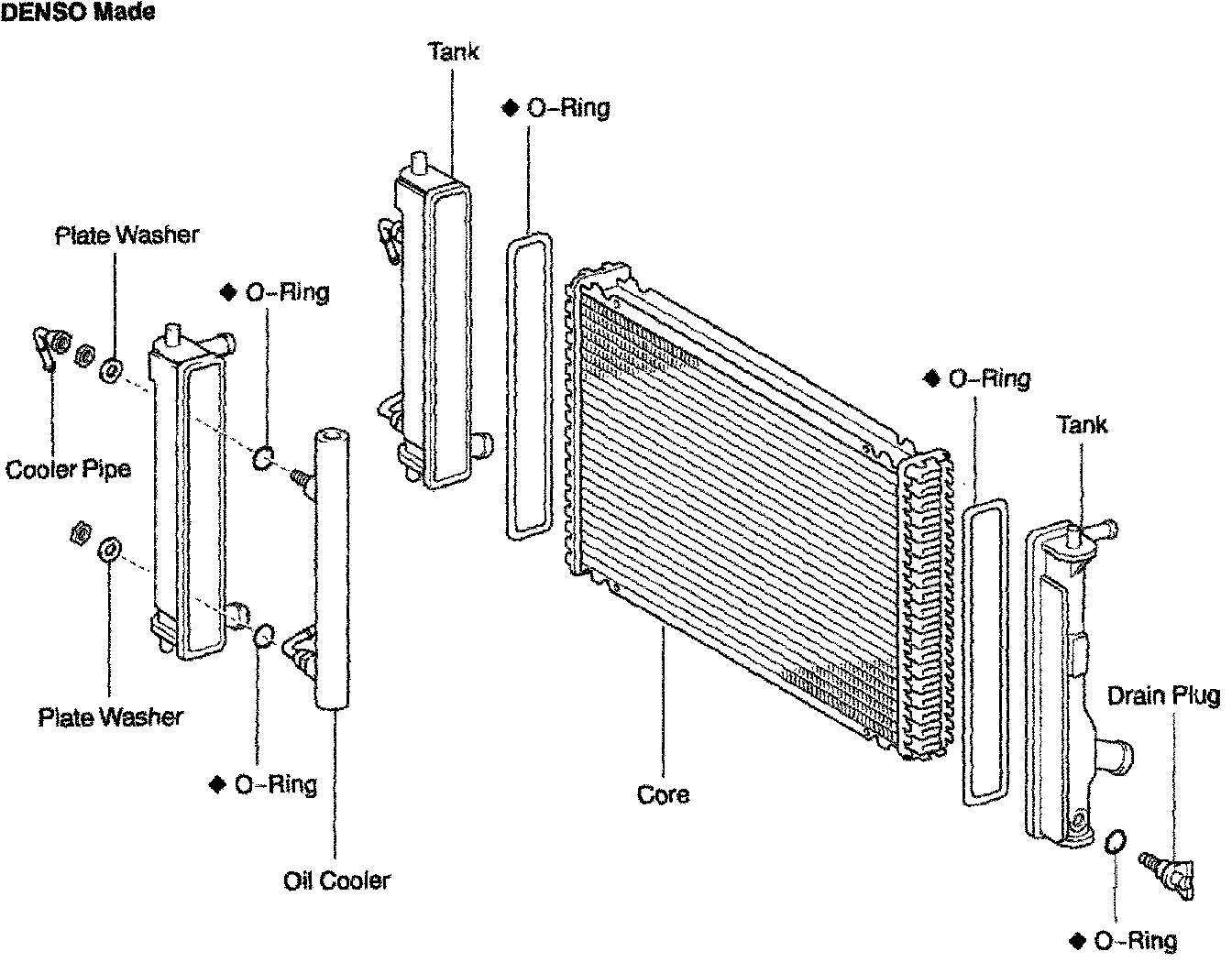

Part 1 Of 3:

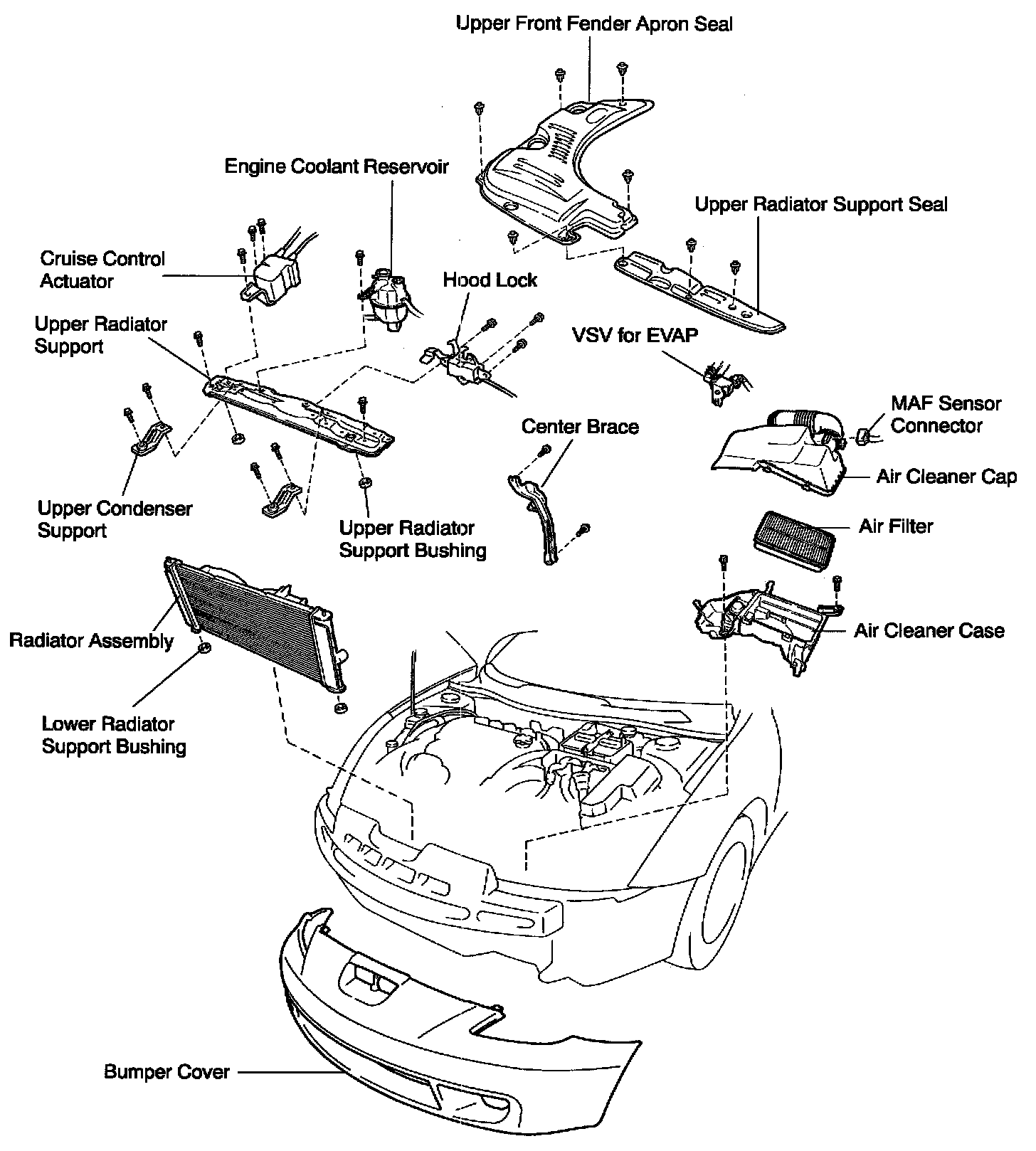

Part 2 Of 3:

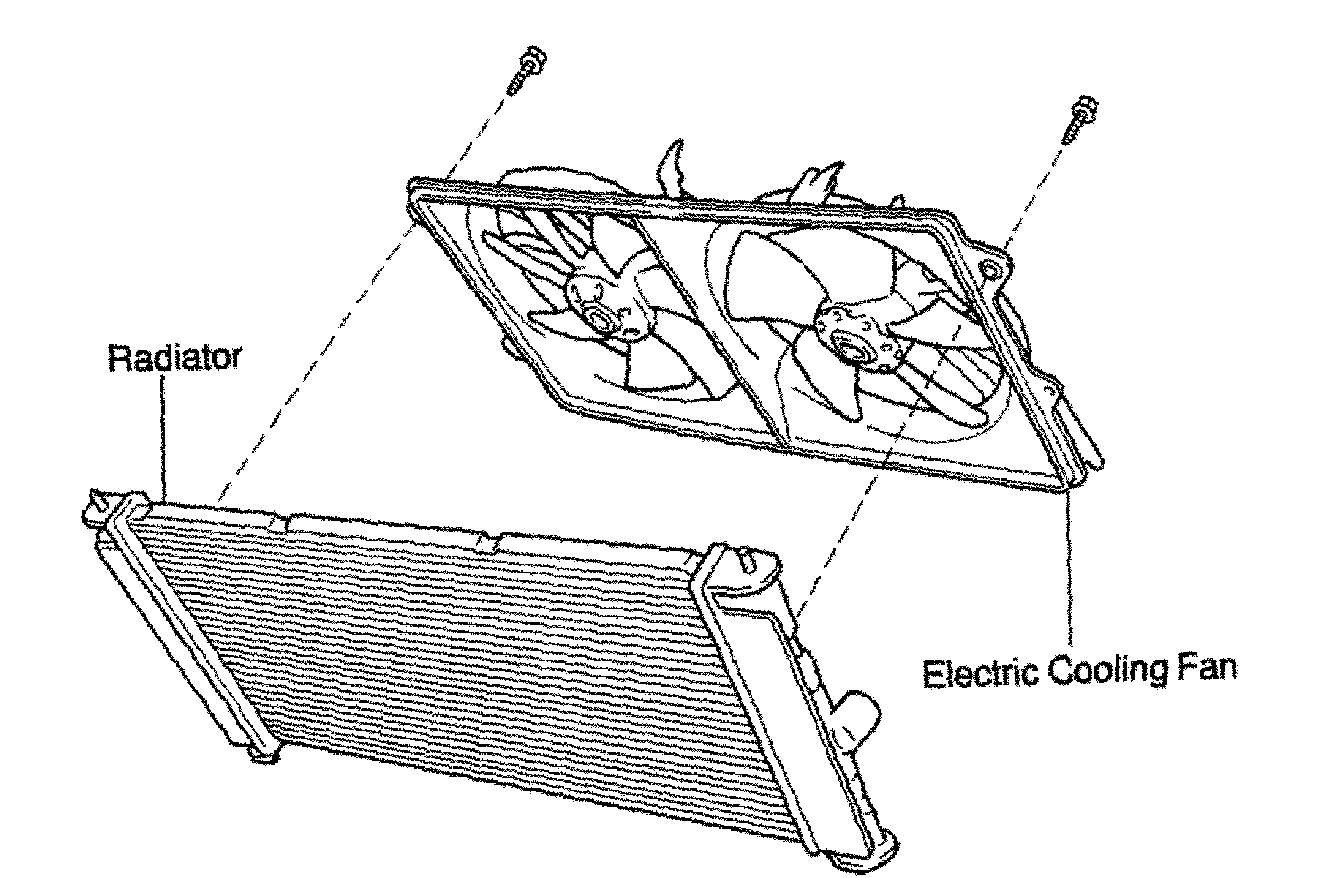

Part 3 Of 3:





RADIATOR REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
